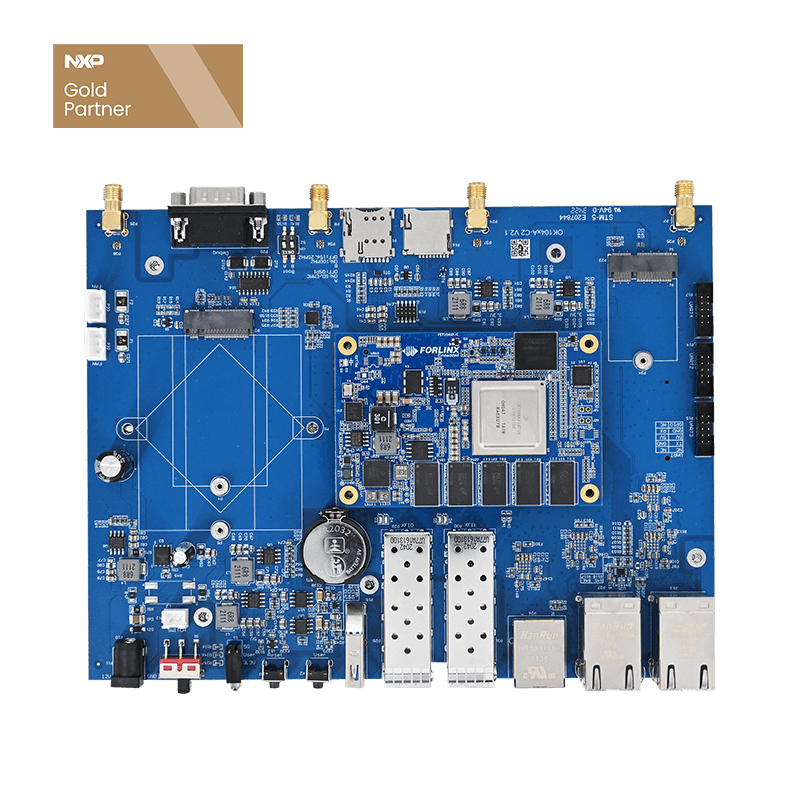

OK1046A-C2 Single Board Computer Based on NXP LS1046A
OK1046A-C2 is single board computer/development board designed based on NXP Cortex-A72 featuring quad-core processor LS1046A with frequency up to 1.8GHz. It consists of a carrier board and SoM (system on module) with separated structure by COM Expressor connector with a transfer rate up to 10GHz. the processor can support 2 native SFP+(10Gb), 5 Gagibit Ethernet, and also USB3.0, M.2( 5G), mSATA, M.2(WiFi), UART and other useful peripheral interfaces are available, in software view, Ubuntu and OpenWRT are both well supported. Widely used in industrial routers, edge computing gateway, IP-PBX, energy management, automation, and other fields.
Robust processing performance

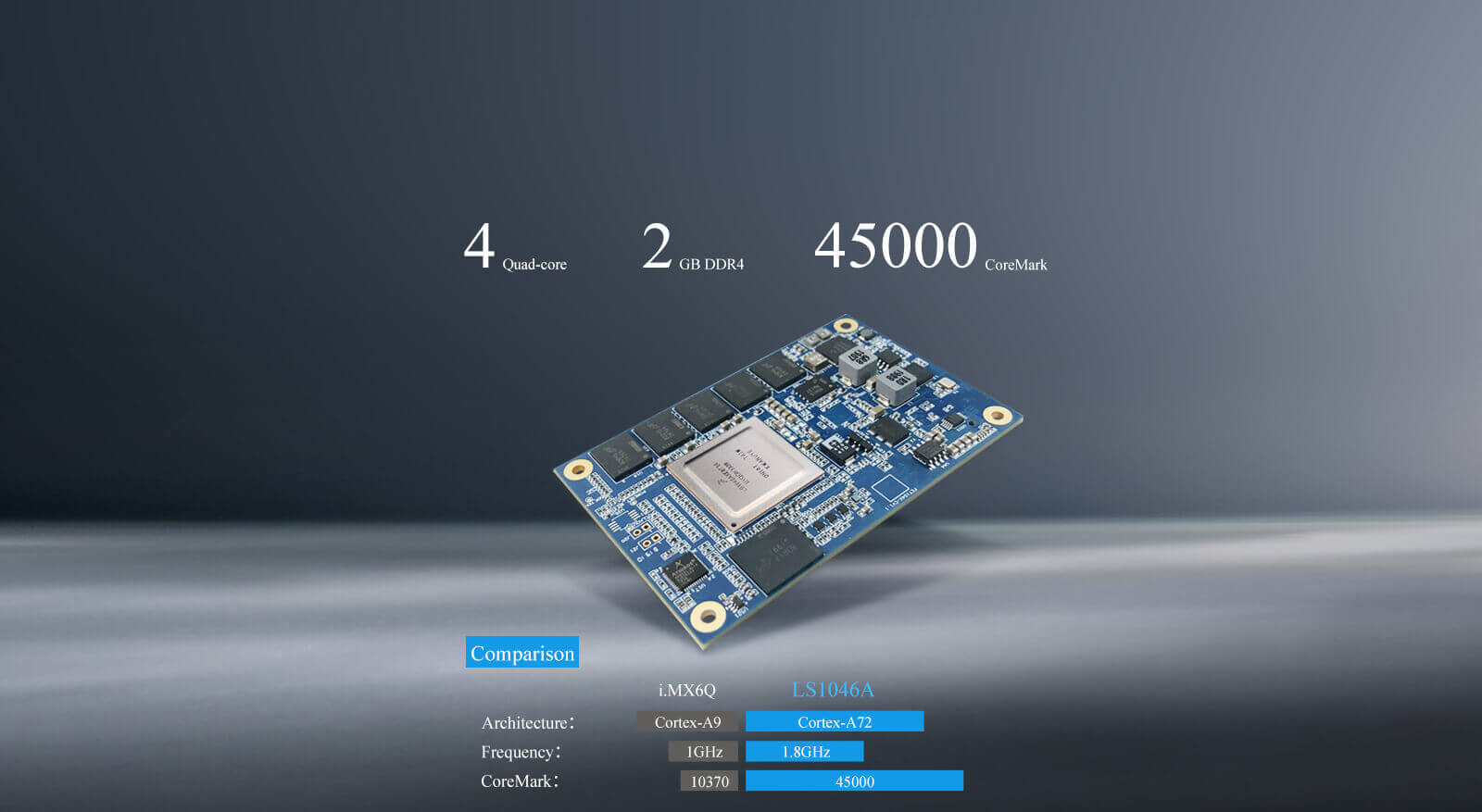

Quad-core ARM Cortex-A72 processor with frequency up to 1.8GHz,
2GB DDR4 RAM, data throughput up to 2.1GT/s, and CoreMark up to 45000

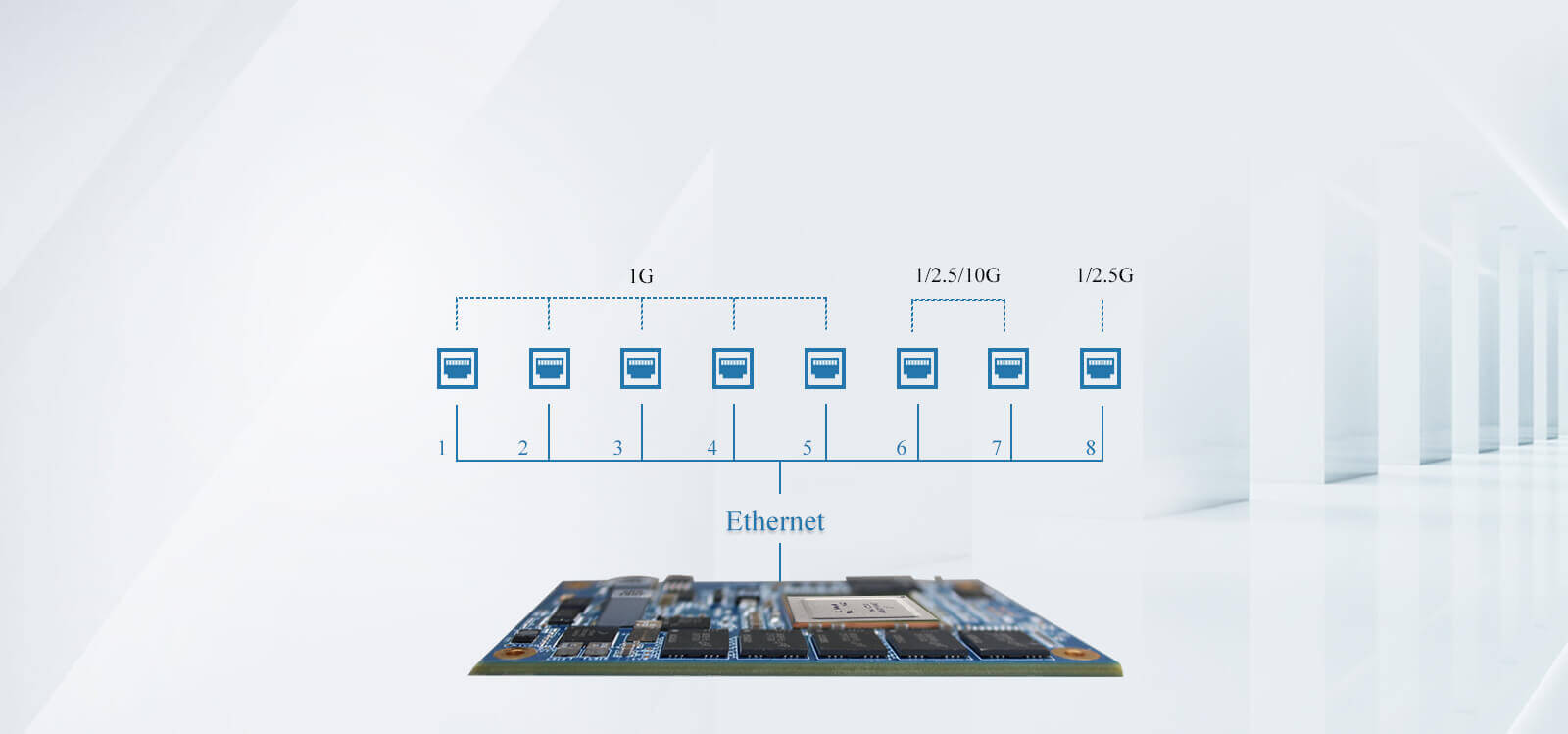

8 Native Ethernet
up to two XFI(10GbE)
High-speed Network
Data Path Acceleration Architecture(DPAA) incorporating acceleration for Packet parsing, classification, and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation and de-allocation(BMan).
Software supported with DPDK and OVS-DPDK for high performance in network related data packet processing
Various High-speed Interfaces

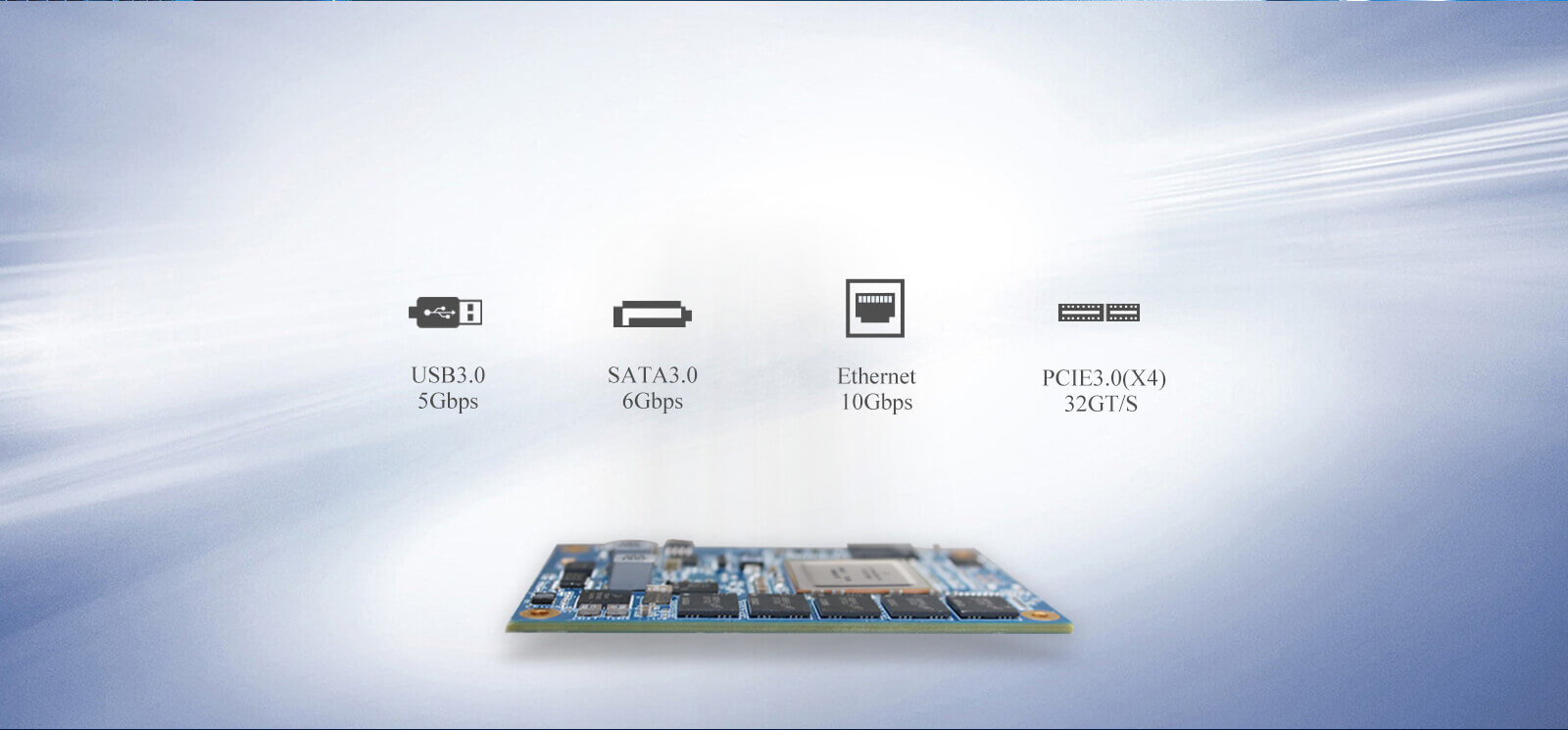

5Gbps USB3.0, 6Gbps SATA3.0, 10Gbps Ethernet, 32GT/s PCIe3.0(x4)
Flexible Scalability
PCIe2.0(up to 5Gbps) scalable for Ethernet, dual-band WiFi and other high-speed peripherals

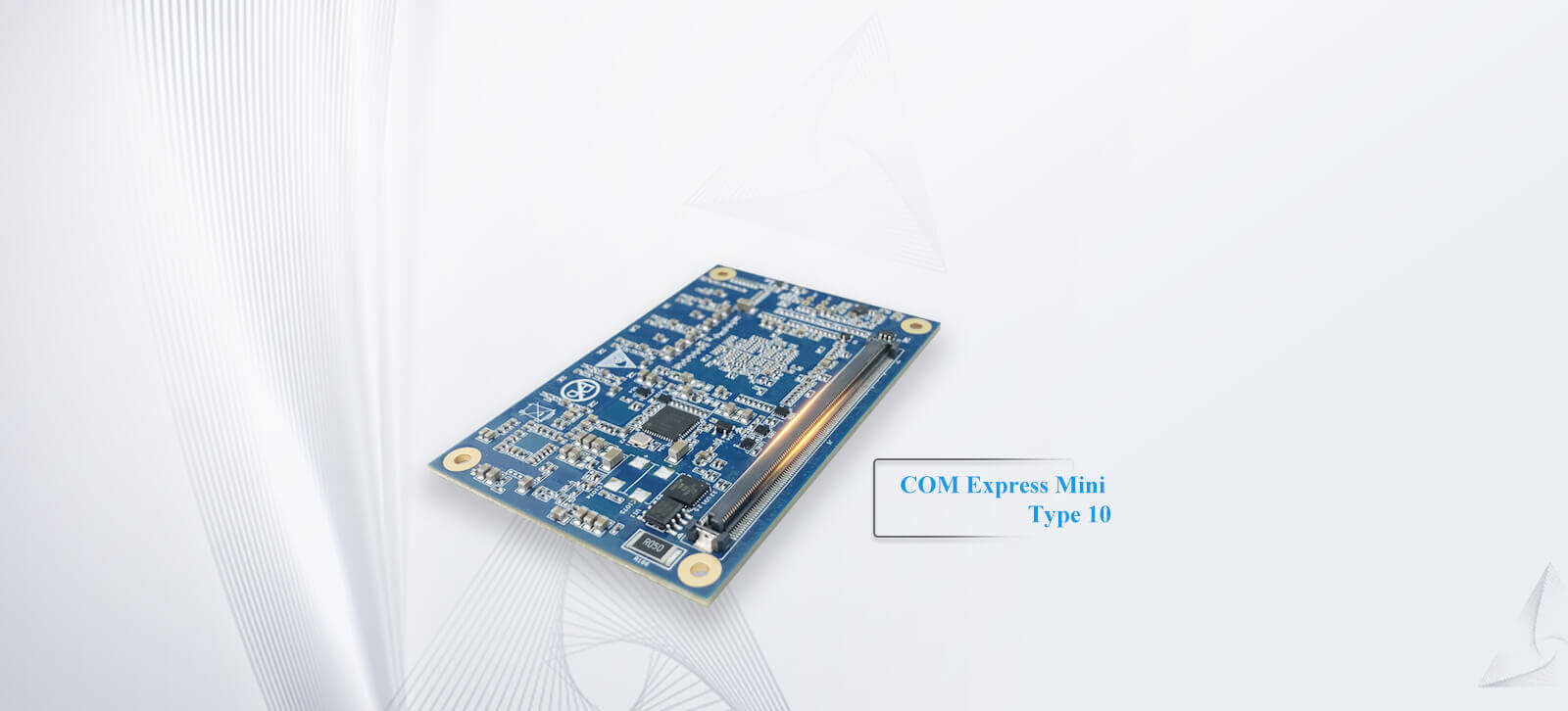

COM Express Package designing
COM Express package designing between SoM and carrier board can provide data transfering rate up to 10GHz,
providing a wealth of connectivity and interface options. COM Express Mini Type 10 with high compatibility makes it flexible for users to custom different SoM for carrier board.

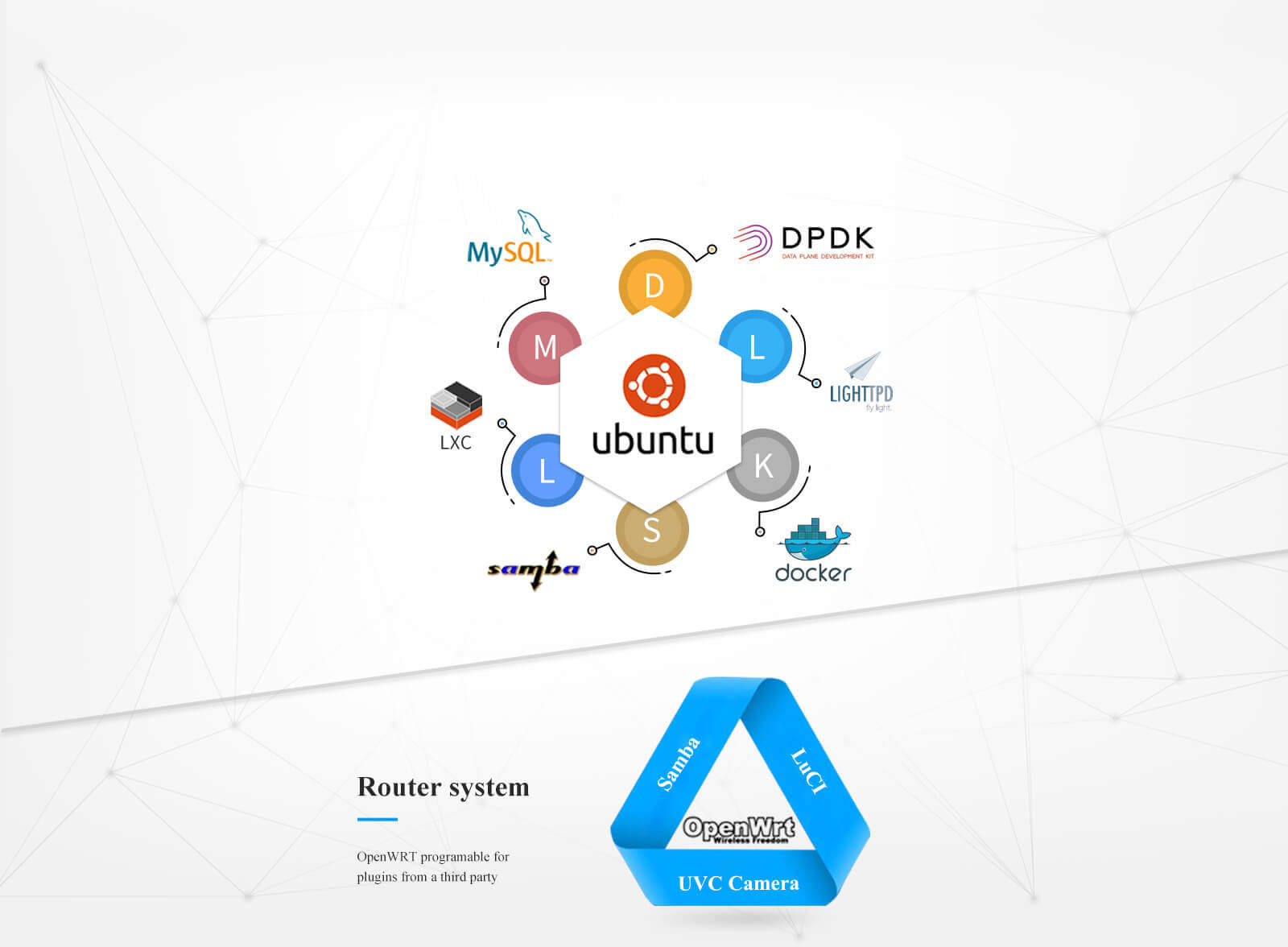

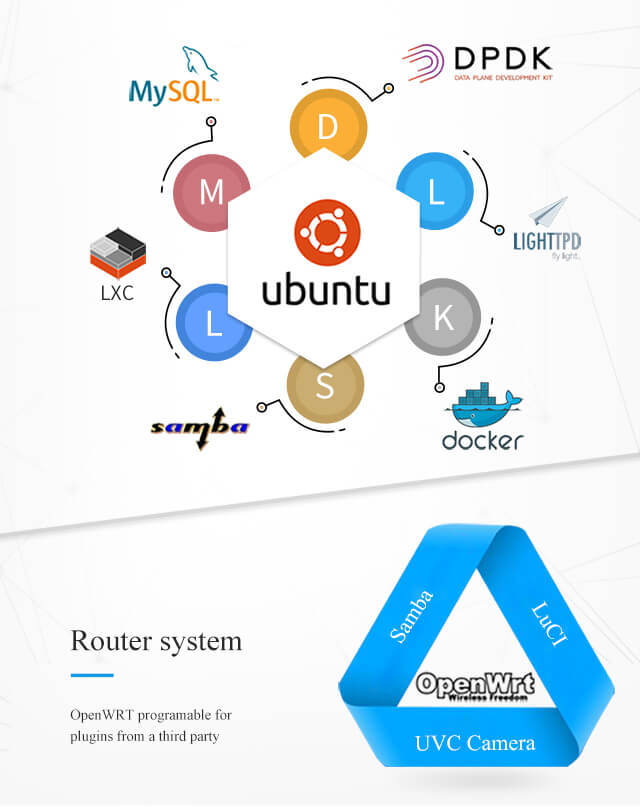

OS Supporting
Ubuntu18.04 and OpenWRT are available for applications
and plugins from third parties, which is convenient for users to do development

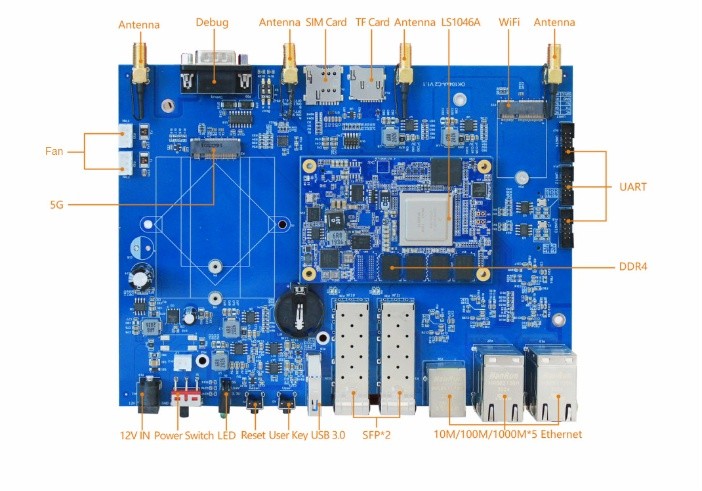

OK1046A-C SBC Pin Diagram
OK1046A-C single board computer consists of SoM FET1046A-C and carrier board
▊ Product Video
OK1046A-C2 SBC(Single Board Computer) Support 10Gbps Ethernet
▊ Hardware Features
| Overview of FET1046A-C System on Module | |
|---|---|
| CPU | NXP LS1046A |
| Architecture | Quad-core, Cortex-A72 |
| RAM | 2GB/4GB DDR4 |
| OS | Ubuntu-18.04.1/OpenWrt v18.06.0-rc2 |
| Package | COM Express |
| Working Temp. | -40℃~ +75℃ |
| Main Frequency | ≤1.8GHz |
| ROM | 8GB eMMC; 16MB QSPI NorFlash |
| Voltage In | 12V |
| Dimensions | 84mm×55mm |
| FET1046A-C System on Module Features | ||
|---|---|---|
|
Peripheral |
QTY |
Spec. |
|
Ethernet |
≤8 |
CPU can support 8 native MAC, available for below combinations: |
|
PCIe3.0 |
≤3 |
Set by SerDes, can support x1, x2 and x4 modes, each channel up to 8GT/s |
|
SATA3.0 |
≤1 |
Set by SerDes, transfer rate up to 6Gbps |
|
SerDes2 |
4 |
8 SerDes channels can be used for high speed peripherals: 3-ch PCI Express 3.0 controller 1-ch SATA 3.0 controller can support up to 5-ch SGMII and each 1000 Mbit/s can support up to 3-ch SGMII and each 2500 Mbit/s can support up to 2-ch XFI (10 GbE) can support up to 1-ch QSGMII |
|
USB3.0 |
≤3 |
Up to 5Gbps |
|
UART |
≤6 |
2-ch DUART or 6-ch UART |
|
IIC |
≤3 |
|
|
eSDHC |
≤1 |
Can support SD3.0 EMMC4.5, multiplexed with eMMC, it can be used for system booting from card or OS image flashing, butcan not be used for external memory expanding |
Note2：SerDes can be used for settings of Ethernet, PCIe and SATA, details please refer to 'QorIQ LS1043A Reference Manual'
| OK1046A-C2 Carrier Board Features | ||
|---|---|---|
|
Peripherals |
QTY |
Spec. |
|
Ethernet 1Gbps |
5 |
1G/ 100M/ 10Mbps auto-negotiation, 3 from SGMII and 2 from RGMII |
|
SFP+ |
2 |
transfer rate up to 10Gbps, for SFP+ optical module or electrical module |
|
mSATA |
1 |
SATA3.0, up to 6Gbps |
|
M.2 E key |
1 |
integrated with PCIex1, for WiFi card |
| M.2 B key |
1 |
integrated with PCIex1, USB3.0 and SIM, for 5G module |
|
USB 3.0 |
1 |
up to 5Gbps |
|
UART |
3 |
TTL, 3-wire serial interface |
|
RTC |
1 |
on-board CR2032 cell |
| User key |
1 |
for user's definition |
▊Software Features
| Linux ubuntu | ||
|---|---|---|
|
Cross-compiler |
aarch64-linux-gnu-gcc |
Ubuntu/Linaro 7.3.0-16ubuntu3~18.04, glibc-2.27, binutils-2.30-0, gdb-8.1 |
|
Booting mode |
boot system from SD card |
|
|
flash OS image by U-disk |
|
|
|
UBoot |
version: Uboot-2018.03 |
|
|
can support device tree |
|
|
|
TFTP and NFS are supported |
|
|
|
can support U-disk, eMMC, TF card, QSPI Flash, etc. |
|
|
|
can support Linux kernel MQC setting and saving |
|
|
|
Linux kernel driver |
version: Linux-4.14.47 |
|
|
file system |
EXT4/NFS/FAT32 |
|
|
eMMC |
HS200 mode |
|
|
watchdog |
|
|
|
RTC |
Rx8010 |
|
|
IO |
|
|
|
QSPI |
can support 4-wire mode high speed reading and writing |
|
|
PCIe |
MINI-PCIe: WLE900VX Gigabit 5G WIFI module |
|
|
USB 3.0 |
U-disk, USB Hub, USB mouse, USB keyboard |
|
|
TMU |
LS1043 inernal temp sensor |
|
|
UART |
|
|
|
SATA |
1x mSATAT |
|
|
Ethernet(10000/1000/100/10Mbps) |
1x Ten-Gigabit Ethernet, 1x SFP+, 5x Gigabit Ethernet |
|
|
UART |
1x RS232 debug port, 3x RS232 general purpose serial interface |
|
|
Ubuntu file system |
version: ubuntu-18.04.1 |
|
|
Samba |
|
|
|
Lighttpd |
|
|
|
Docker |
|
|
|
LXC |
|
|
|
QEMU |
|
|
|
OP-TEE OS |
|
|
|
OpenSSL |
|
|
|
IPSEC |
|
|
|
DPDK |
OVS-DPDK |
|
| Linux LEDE v17.01.6 Release | |
|---|---|
|
Linux kernel |
version: Linux-4.9.63 |
|
Openwrt |
version: v17.01.6 |
|
Source pack |
ath10k-firmware-qca988x_2017-03-29-956e2609-1_aarch64_generic |
▊ NXP Software Resource Recommendation ASK
ASK is an OpenWRT-based application solution kit for broadband routers from NXP, which utilizes the packet gas pedal in the LS1043A / LS1046A processor and delivers wire-speed performance with less than 5% ARM core load.
LS1046A ASK Download: NXP Special Single Chip Hardware Speeds Router/Switch Software
▊ Downloads
Catalog:
Forlinx Catalog Manual
Datasheet:
FET1046A-C SoM and OK1046A-C SBC introduction
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.
