Single board computer OK1028A-C based on NXP LS1028A

---

▊ Hardware Features

---

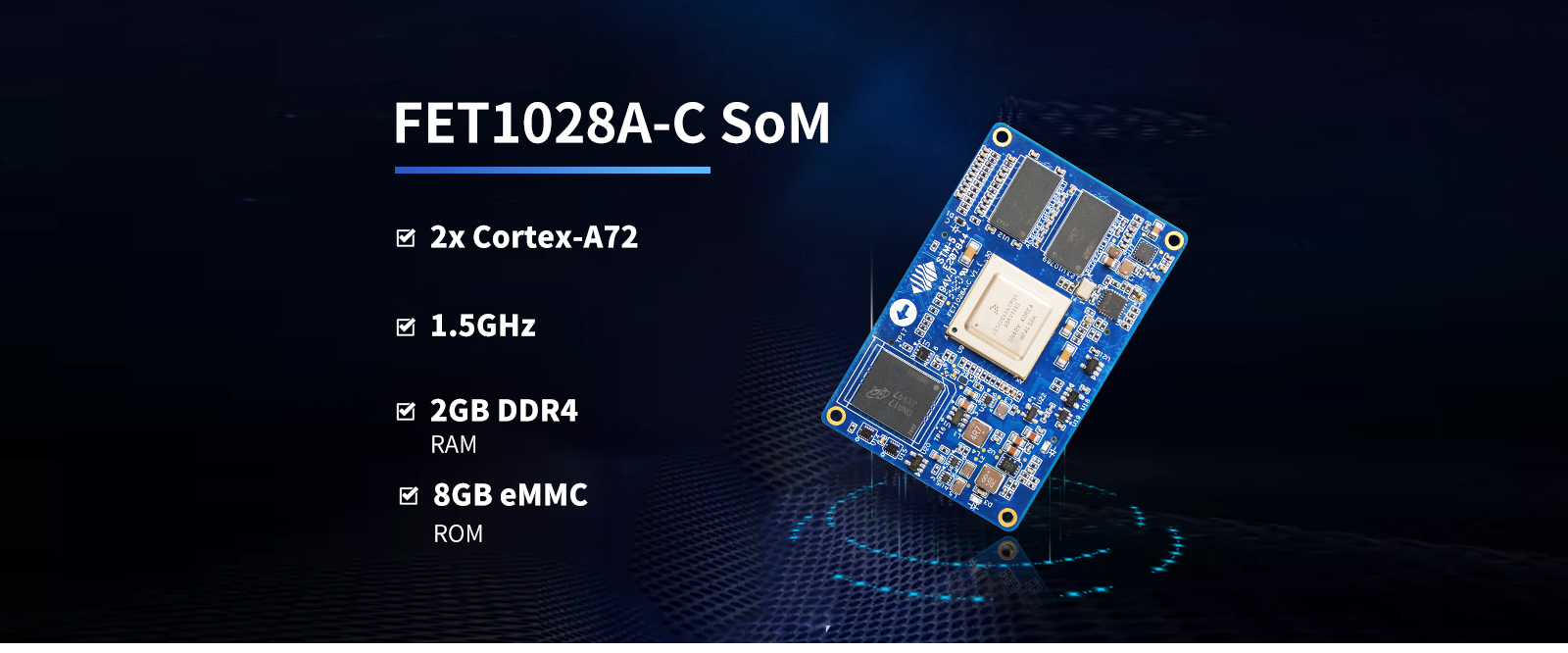

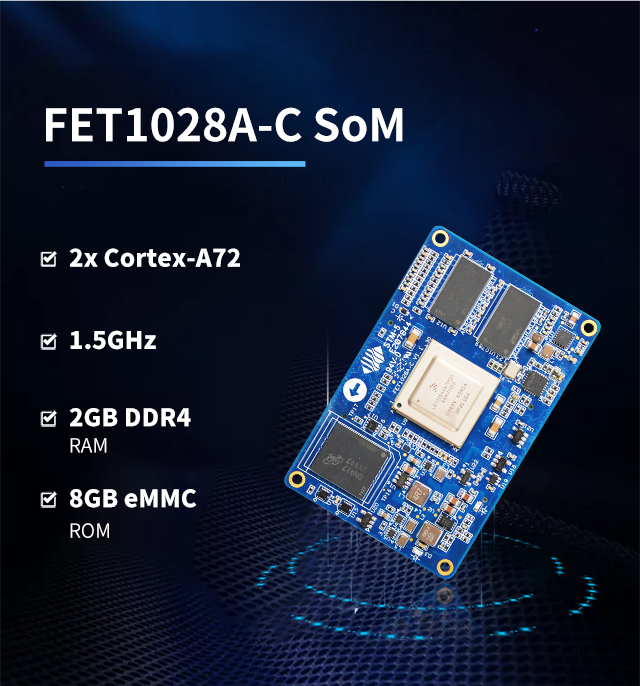

Overview of SoM FET1028A-C
CPU	NXP LS1028A
Architecture	Dual-core Cortex-A72
Frequency	1.5GHz
RAM	2GB DDR4
ROM	8GB eMMC
OS	Ubuntu
Power input	DC 12V
Working temperature	-40℃~ +85℃
Dimensions	42mm×65mm

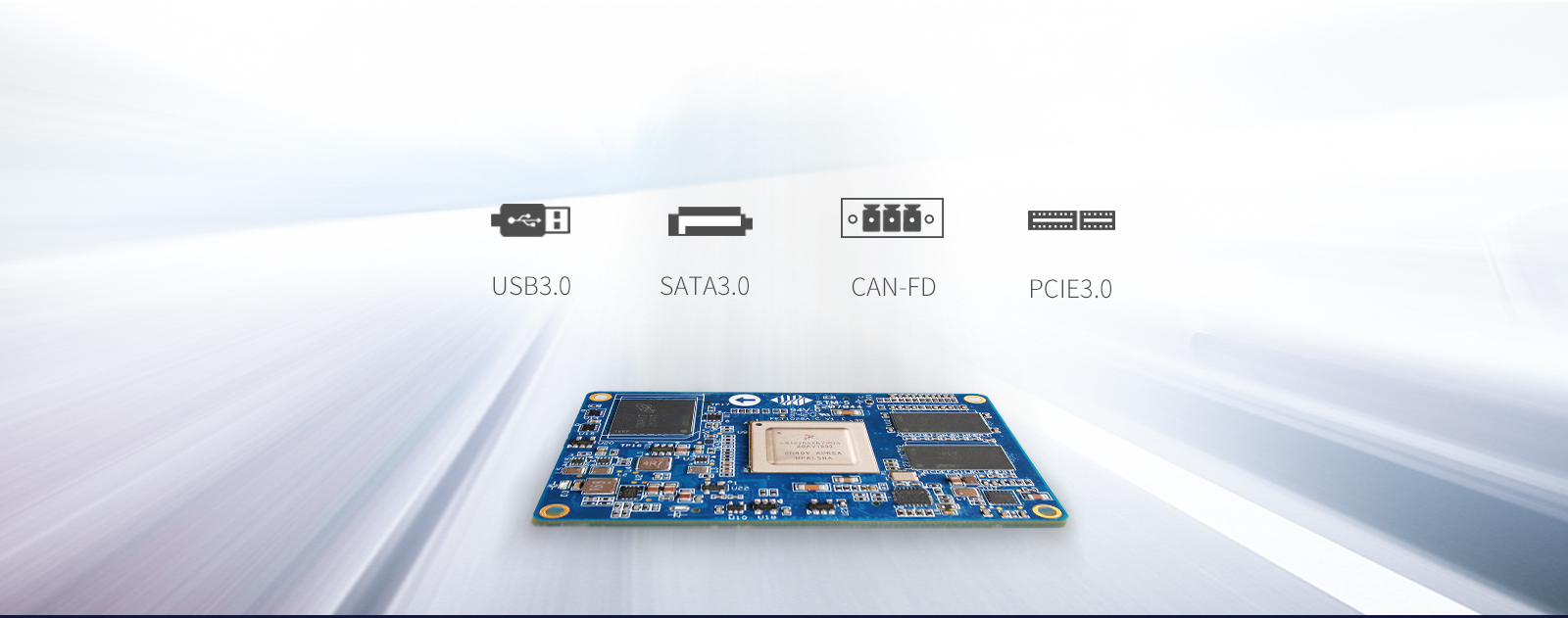

FET1028A-C System on Module Hardware Features
Interface	QTY	Spec.
Display Port	≤1	DP1.3 and eDP 1.4, up to 4Kp60
eSDHC	≤1	SD3.0
IIS	≤6

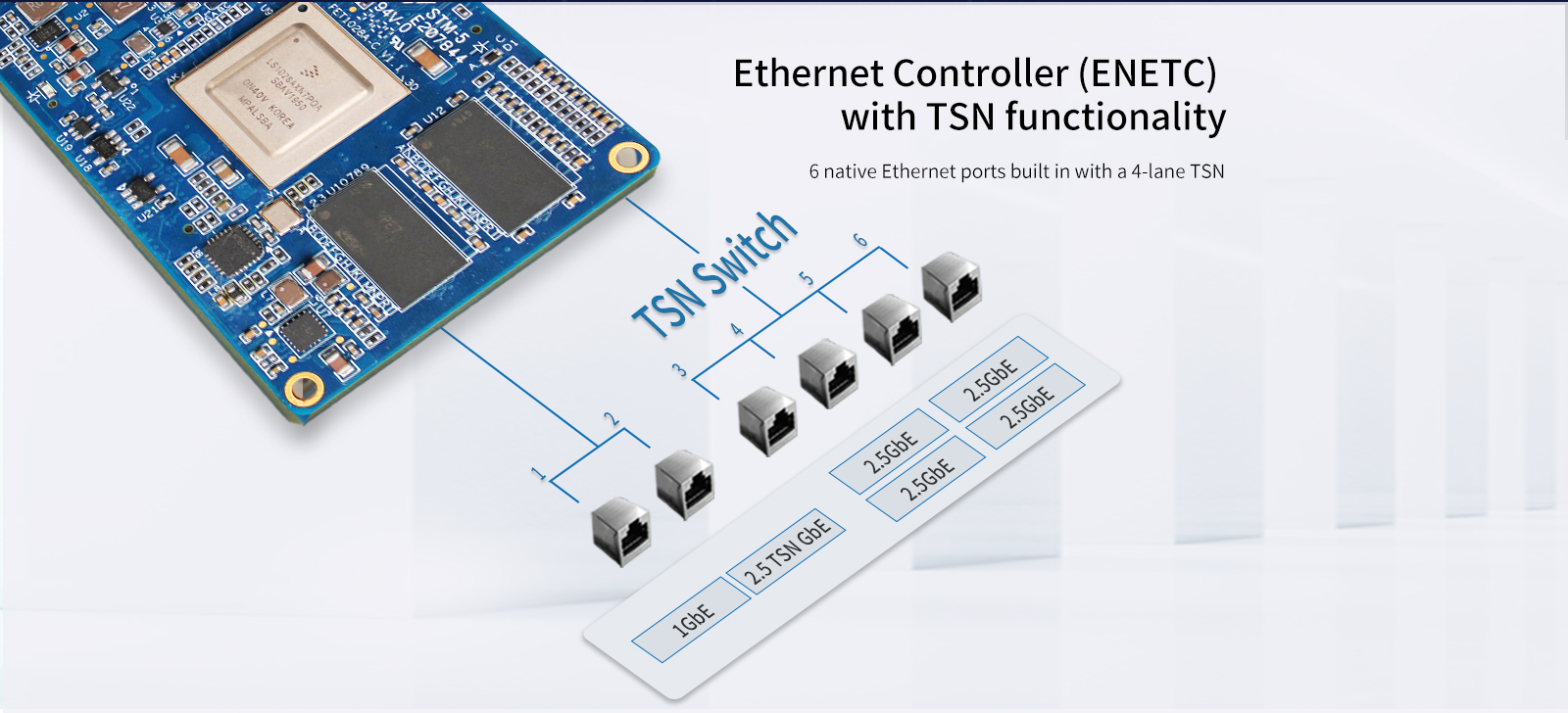

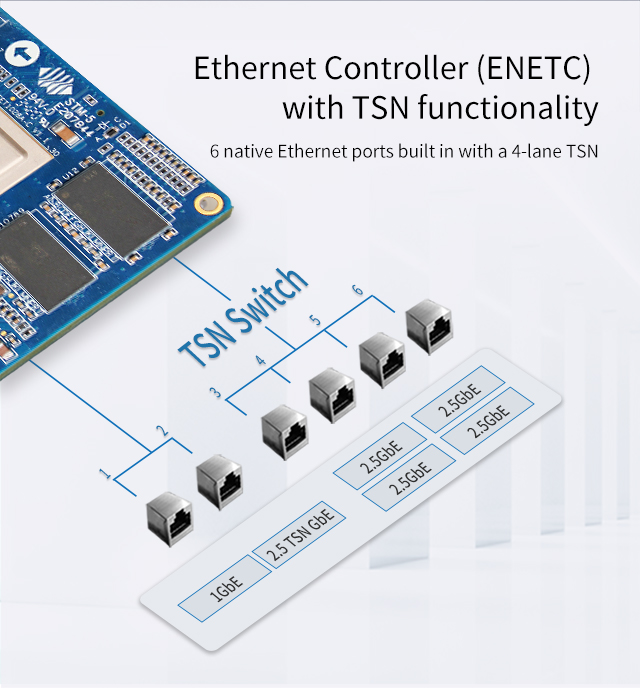

Ethernet	≤6	CPU has 6 native MAC up to 2.5Gbps, can support TSN and one of them has a 4-port TSN switch; 5 Ethernet ports can be configured by SerDes
PCIe 3.0	≤2	up to 8GT/s, configured by SerDes
SATA 3.0	≤1	up to 6Gbps, configured by SerDes
USB 3.0	≤2	up to 5Gbps
UART	≤4	can support 1x DUART or 4x UART
CAN FD	≤2
IIC	≤6
SPI	≤2
SerDes	1	1x 4Lane SerDes, available for SGMII, QSGMII, PCIe, SATA combinations as below: A. SGMII+QSGMII+PCIe2.0 x1+SATA3.0 B. PCIe3.0 x1+QSGMII+PCIe3.0 x2 C. SGMII+QSGMII+PCIe3.0 x2 D. PCIe3.0 x2+PCIe3.0 x2 E. SGMII+QSGMII+PCIe3.0 x1 + PCIe3.0 x1 F. PCIe3.0 x4 more details refer to SerDes list 'LS1028ARM.pdf'

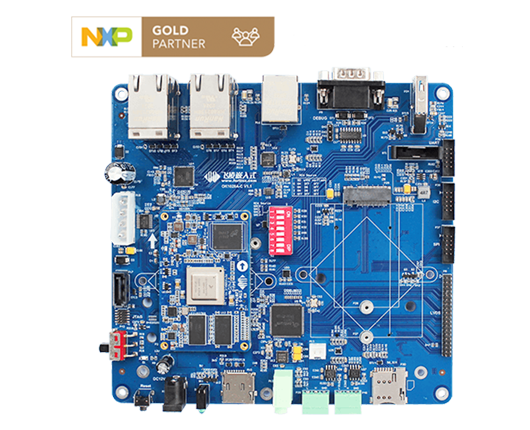

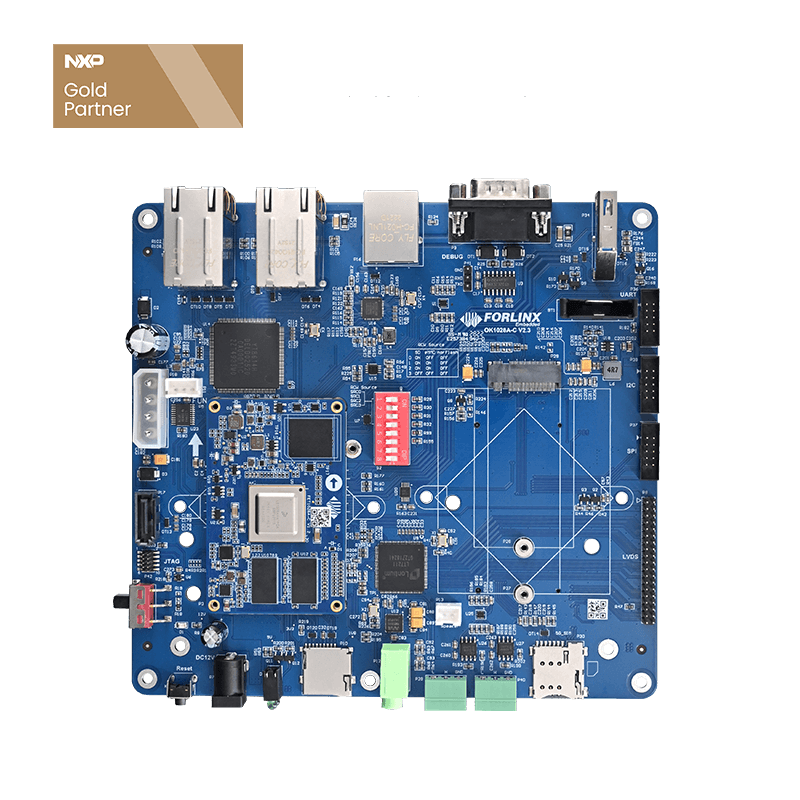

OK1028A-C Single Board Computer Features
Interface	QTY	Spec.
Ethernet	5	RJ-45, 10/100/1000Mbps auto-negotiation, all can support TSN
USB Host	1	USB 3.0, Super-speed (5 Gbit/s)
LVDS	1	can support single 8-bit or dual 8-bit LVDS output
Audio	1	1*Phone, 1*Speaker
WiFi	1	M.2 key E connector, PCIe Gen2, can support 2.4G& 5G WiFi module
SATA	1	SATA3.0, 1.5 Gb/s - 6.0 Gb/s
4G	1	mini PCIe connector, alternative with 5G module
5G	1	M.2 key B connector, alternative with 4G module
UART	1	3-wire serial, 3.3V voltage
CAN	2	can support CAN2.0B, CAN FD; 5 Mbit/s
SPI	1	full dulplex, can support host/ slave mode
IIC	2	100 /400 kbps
TF Card	1	compatible with SD3.0（UHS-I）
LED	2	programmable, controlled by GPIO
PWM	1	LVDS backlight control
UART Debug	1	RS232, DB9 header

▊ Download

---

Catalog: Forlinx Catalog Manual

Product Brief: FET1028A-C SoM and OK1028A-C SBC introduction

▊ Accessories

---

Please click here to get more information about the supported modules and accessories.

▊ Technical Support

---

1. Files to be provided after buying

Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;

Firmware related: OS image, testing demo, source code, manual;

Compiling environment

2. Fast response after-sale technical support service

▊ How To Buy

---

1. Order Online

We have an online store on Alibaba, please contact us for details.

2. Order Offline

Please send your inquiry to [email protected];

3. Payment Terms

100% T/T in advance.

▊ Shipment

---

1. Delivery: Goods will be shipped by express upon the receipt of the payment;

2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;

3. Shipping charge: Buyers should bear the shipping cost.
