FET-MA35-S2 System on Module Based on Nuvoton MA35D1 Processor
FET-MA35-S2 SoM is developed and designed based on the Nuvoton MA35D1 series high-performance multi-core heterogeneous processor. It integrates 2 x 64-bit ARM® Cortex-A35 cores operating at up to 800MHz, and is equipped with a 180MHz ARM Cortex-M4 core. Compact LCC+LGA package. It has undergone rigorous industrial environment tests in the Forlinx Embedded Laboratory, ensuring the stability of your products.
Forlinx Nuvoton MA35D1 SoM Features:
- Heterogeneous Multi-core Design, A core up to 800MHz, M4 core runs up to 180MHz
- Dual Gigabit Ethernet Support
- System security, secure boot, tamper detection, built-in AES, SHA, ECC, RSA, and SM2/3/4 encryption/decryption accelerators
- 4 x native CAN-FD, 17 x UART
- 2D GPU, resolutions up to 1920x1080 @60fps
- Compact size, 260 pins (exposed)

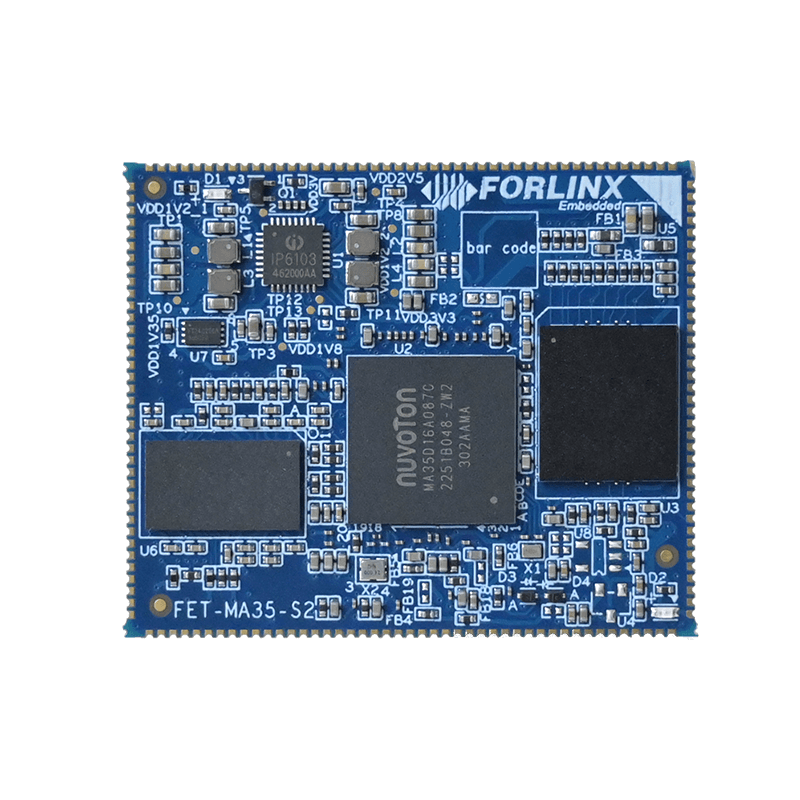

FET-MA35-S2 SoM
4 x Native CAN to Enhance Power and Industrial Applications
4 x CAN-FD for high-speed, stable system integration, benefiting applications like charging piles, power, industry, and firefighting.
17 x Native UART, Enabling Broader Functional Expansion
17 x native UART interfaces, meeting cost reduction needs in multi-serial port applications like charging piles and industrial gateway
16 x Native ADC, Fulfilling Diverse Data Acquisition Needs
16 x native ADC, providing functional support for applications like charging piles and power.
Multi-core Balancing High Performance & Real-Time Control
MA35D1 is a 64-bit Cortex-A35 core based on ARMv8-A architecture and equipped with a Cortex-M4 microprocessor to meet the requirements of high efficiency and real-time control.
Secure and Trusted System
MA35D1 series is a trusted system that meets the security requirements of IoT products.
It includes advanced security mechanisms such as Nuvoton TSI (Trusted Secure Island), an independent secure hardware unit, TrustZone, secure boot, tamper detection,
built-in AES, SHA, ECC, RSA, and SM2/3/4 encryption/decryption accelerators, a true random number generator (TRNG), and key storage (Key Store) and one-time programmable memory (OTP memory).
All security-related operations are performed in the TSI, protecting sensitive and high-value data. These security features also meet the requirements for IEC 62443 certification.
Fully Exposed Pins
4×CAN-FD, 17×UART, 2×Ethernet, 8×ADC, and other pins were fully brought out, ensuring the flexibility and expandability of the SoM to meet the diverse functional needs of different products in various fields.
Compact Size for Various Environments
LCC+LGA package, measuring only 48mm×40mm, with a total of 260 pins exposed.
Rich Multimedia Functions and Powerful Decoding Capabilities
It integrates 1 x 2D GPU and 2D graphics accelerator, along with JPEG and H.264 decoders, providing better graphical user interface interaction and smooth video playback.
Comprehensive Development Resources Help You Quickly Get Started and Successfully Develop
Comprehensive software and hardware development resources, including a FAQ manual,
Pinmux spreadsheet, hardware manual, test routines, carrier board schematics, and more, making your development easier and production more convenient.
Applications
FET-MA35-S2 SoM is a high-resource, versatile product suitable for applications such as charging piles,
industrial control , edge gateways, new energy, power, and smart fire protection.
With the strong technical support and service capabilities of Forlinx Embedded, it helps your product quickly reach the market and stay at the forefront of the industry.
▊ Nuvoton MA35D1 SoM/SBC Video
Forlinx Launched FET-MA35-S2 SoM/OK-MA35-S21 SBC based on Nuvoton MA35D1
▊ Exterior and Dimensions
▊ Hardware Features
|
FET-MA35-S2 System on Module Basic Features |
||
|---|---|---|
|
Processor |
Nuvoton MA35D1 CPU: 2×Cortex-A35@800MHz+Cortex-M4@180MHz GPU: 2D GPU Decoding: •AVC/H.264, MVC, SVC: up to 1920 x 1080 @ 45 fps |
|
| RAM | 512MB/1GB DDR3L | |
|
ROM |
8GB eMMC |
|
|
Power input |
DC 5V |
|
|
Operating Temperature |
-40℃~+85℃ |
|
|
Package |
LCC+LGA (260 pins, 1mm pitch, 0.9x0.6mm pins, 1.5mm LGA ball pitch, 1mm ball diameter) |
|
|
OS |
Linux 5.10.140 |
|
|
Flashing Method |
USB OTG, TF |
|
|
Dimensions |
40mm×48mm |
|
|
FET-MA35-S2 System on Module Functional Parameters |
||||
|---|---|---|---|---|
|
Function |
QTY |
Spec. |
||
|
USB 2.0 |
2 |
1 x USB2.0 Host |
||
|
RGB |
≤1 |
RGB888 support, resolution up to 1920*1080 |
||
|
CSI |
≤2 |
Supports up to 3m pixels |
||
|
Ethernet |
≤2 |
10/100/1000 Mbit/s Ethernet, RGMII and RMII support |
||
|
UART |
≤17 |
Baud rate up to 9.5Mbps |
||
|
ISO7816 |
≤2 |
ISO-7816-3 support |
||
|
QSPI |
≤2 |
Configurable master-slave mode, clock up to 100MHz |
||
|
SPI |
≤4 |
Configurable master-slave mode, clock up to 100MHz |
||
|
I2S |
≤2 |
Configurable master-slave model |
||
|
I2C |
≤5 |
7bits and 10bits address modes up to 1 Mbit/s. |
||
|
CAN-FD |
≤4 |
CAN-FD V1.0 and CAN2.0 A/B; |
||
|
EPWM |
≤18 |
18-channel EPWM |
||
|
SDIO |
≤1 |
SD0, 4-bit, only support 3.3V |
||
|
ADC |
≤8 |
8 x single-ended inputs, 10 bit, 500K SPS, 4-wire or 5-wire touch support |
||
|
EADC |
≤8 |
8 x single-ended or 4 x differential input, 10 bit, 4.7 M SPS |
||
Note: The parameters in the table are hardware design or theoretical CPU values.
▊ Carrier Board

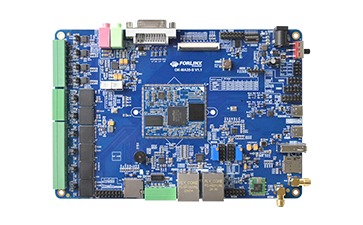

OK-MA35-S21 Development Board
To minimize your development workload, we offer starter kits that can be used as complete development platforms for evaluation and application development.
OK-MA35-S21 Single Board Computer by Forlinx, paired with the Nuvoton MA35 series SoM possessing 2×Cortex-A35 cores running at 800MHz and a Cortex-M4 core at 180MHz, supports the Linux 5.10.140 system.This development board, equipped with diverse functional interfaces, enables users to assess the product's performance, stability and user-friendliness more conveniently, thus accelerating the verification and development process.
▊ Downloads
Catalog:
Forlinx Catalog Manual
Product Brief:
FET-MA35-S2 SoM and OK-MA35-S21 SBC Introduction
