Nuvoton's NuMicro® MA35D1 series microprocessors have become the engineers' trusted choice for high-end industrial control, edge IoT gateway, and HMI applications due to their high-performance multi-core heterogeneous design, reliable security mechanisms, rich communication interfaces, excellent HMI application,s, and extensive ecosystem support.

Now, Forlinx Embedded and Nuvoton have partnered to launch the FET-MA35-S2 SoM, aiming to provide engineers with a more efficient and convenient development experience!

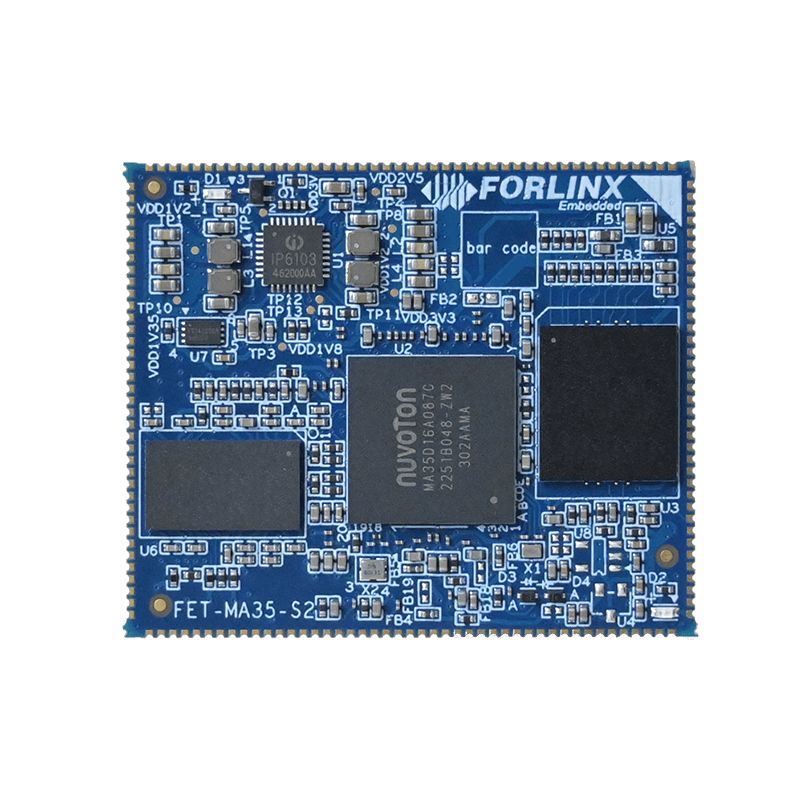

FET-MA35-S2 SoM is designed and developed based on Nuvoton's MA35D1 series high-performance multi-core heterogeneous processor. It integrates 2 x 64-bit ARM® CortexARM Cortex-A35 cores, with a clock frequency of up to 800 MHz, and 1 x single ARM Cortex-M4 core running at 180 MHz.

FET-MA35-S2 SoM uses a compact LCC+LGA packaging, measuring 48mm × 40mm and featuring 260 pins. These pins expose the CPU's full functions, including 4 x CAN-FD interfaces, 17 x UART serial communication interfaces, 2 x Ethernet interfaces, and 8 x ADC interfaces, ensuring high flexibility and scalability, so as to meet the actual needs of different fields and products for diverse functions.

Additionally, FET-MA35-S2 SoM has passed rigorous industrial environment testing at Forlinx Embedded's lab, ensuring exceptional stability in applications and a reliable foundation for user project success.

MA35D1 processor is equipped with multiple advanced security mechanisms, including Nuvoton's TSI (Trusted Secure Island) independent security hardware module, TrustZone technology, secure boot, tamper detection, built-in AES, SHA, ECC, RSA, and SM2/3/4 encryption/decryption accelerators, and a true random number generator (TRNG). Additionally, it includes key storage and one-time programmable (OTP) memory. All security-related operations are performed within the TSI, effectively protecting sensitive and high-value data.

FET-MA35-S2 SoM is a highly resourceful and versatile product suitable for a wide range of applications in industries such as Charging Piles, Industrial Control, Edge Gateway, New Energy, Electricity, Fire Alarm etc. Combined with Forlinx Embedded's robust technical support capabilities, it accelerates your product's time-to-market, keeping you at the forefront of the industry.

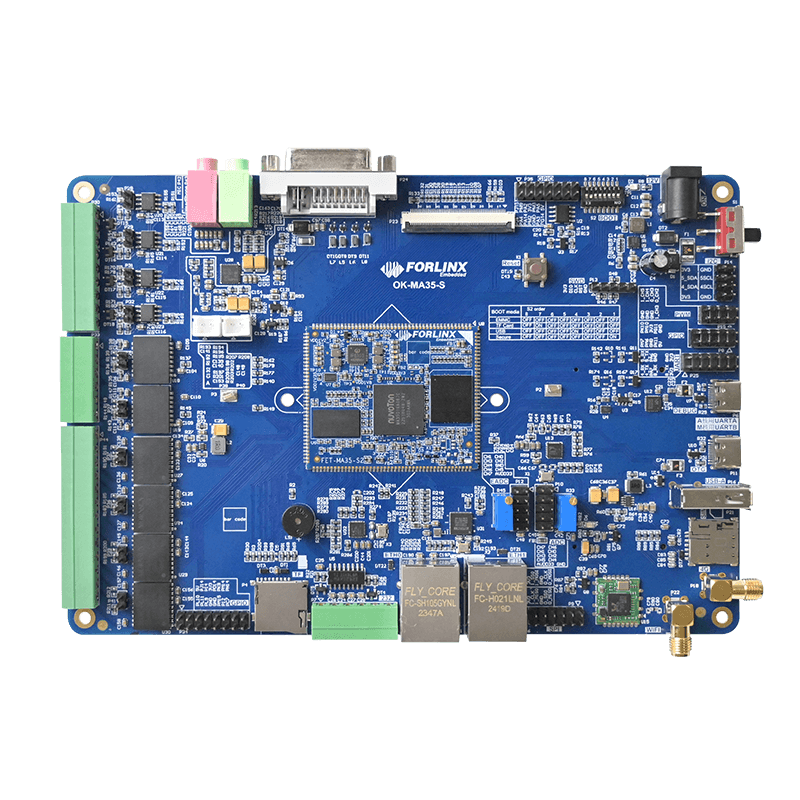

OK-MA35-S21 Development Board, accompanying the Nuvoton MA35 series SoM, integrates a diverse array of functional interfaces, offering users great flexibility and convenience. These interfaces and resources enable users to more easily evaluate the product's performance, stability, and usability, accelerating functional verification and prototype design. Moreover, OK-MA35-S21 development board provides user-friendly development environment and comprehensive support documents, including detailed hardware manuals, example code libraries, and abundant online resources. This significantly reduces the development threshold and shortens the product development cycle, It lays a solid solutions foundation for the rapid introduction of high-quality and high-performance solutions embedded systems.

Contact our official sales engineer for more product details on the FET-MA35-S2 SoM.
