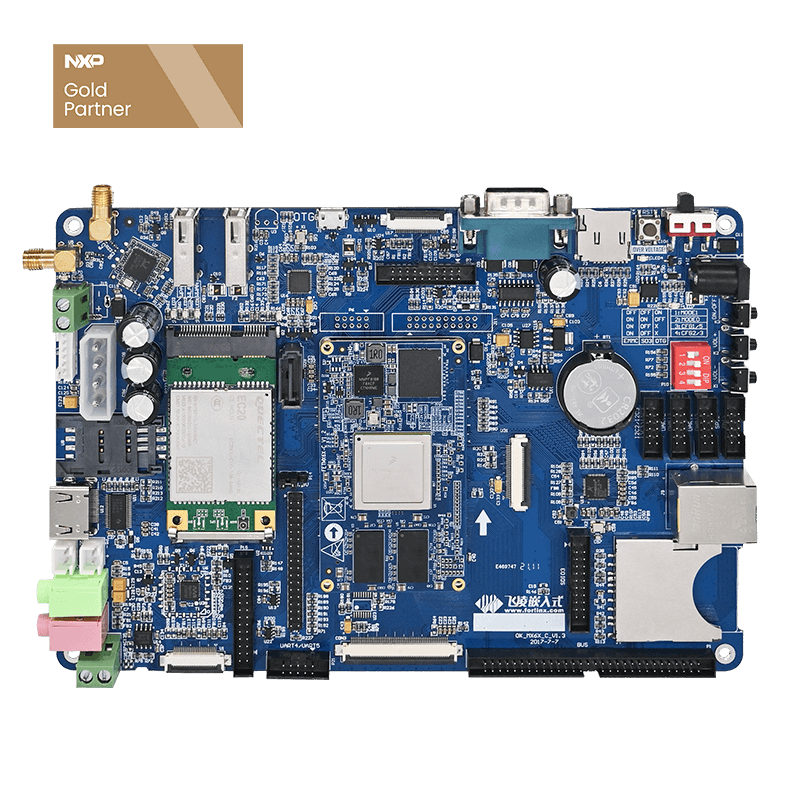

Single Board Computer OKMX6DL-C based on NXP i.MX6DL
OKMX6DL-C single board computer consists of carrier board and CPU module FETMX6DL-C. The carrier board was designed as a 4-layer PCB and on-board connectors such as Gigabit Ethernet, CAN bus, parallel camera, WIFI&BT, etc. What's more, the CPU featured MIPI, MLB and EMI are also drawn out. Tested by EMC and high&low temp to guarantee the SoM to run stable in harsh working environment.
i.MX6 DualLite processor Features:
The i.MX6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications.
- Enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games
- Multilevel memory system
- Smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations
- Dynamic voltage and frequency scaling
- Powerful graphics acceleration
- Interface flexibility
- Integrated power management throughout the device
- Advanced hardware-enabled security
Target Application
- Automotive infotainment
- Digital signage
- HMI
- In-flight entertainment
- Intelligent industrial control system
- IPTV
- Portable medical
Certificates
OKMX6DL-C Single Board Computer Pin Diagrams
▊ Hardware Features
| FETMX6DL-C System on Module Features | |
|---|---|
| CPU | NXP iMX6 Dual Lite(compatible with i.MX6 Quad) |
| Architecture | Cortex-A9 |
| Main Frequency | commercial grade: 1GHz, industrial grade 800MHz |
| RAM | 1GB DDR3 (2GB DDR3 optional) |
| ROM | 8GB eMMC |
| Voltage Input | DC 4.2V |
| 2D/3D | supported |
| GPU | Vivante GC355 / Vivante GC320 |
| PMU | MMPF0100NPEP |
| Dimensions | 40mm*70mm |
| Package | board-to-board connector |
| OS | Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5 |
| Display | RGB 24-bit, dual 8-bit LVDS interface, HDMI, MIPI |
| MIPI | 3x MIPI_CSI MIPI_DSI MIPI_HSI |
| IIC | 3x IIC |
| SPI | 5x SPI |
| CAN | 2x CAN |
| USB HOST | 1x USB HOST 2.0 |
| USB DEVICE | 1x USB OTG 2.0 |
| SD/MMC/SDIO | 3x SD/MMC |
| Ethernet | 1x 1000M |
| UART/IrDA | 5(contains one debug port) |
| EINT/GPIO | supported |
| Video Codec | hardware codec |
| EBI BUS | 27-bit address bus, 32-bit data bus |
| JTAG | 1x JTAG |
| Camera | 1x DVP, 1x MIPI |
| PWM | 3x PWM |
| SATA | 1x SATA |
| 8X8 Keyboard | 1-ch |
| Audio | IIS≤3 |
| MLB | 1x MLB |
| SPDIF | 1x SPDIF |
| mini PCIe | 1x mini PCIe |
| OKMX6DL-C Single Board Computer Features | |
|---|---|
| Audio | 1x Phone, 1x MIC, 2x Speaker |
| I2C | 3x IIC |
| SPI | 1x SPI |
| CAN | 1x CAN |
| MIPI Camera | 1x MIPI camera |
| Camera | 1x camera, 5.0MP, OV5640 |
| SD/MMC/SDIO | 2x SD/ MMC/ SDIO |
| USB HOST | 2x USB host, USB2.0 |
| USB OTG | 1x USB OTG, USB2.0 |
| Ethernet | 1x 10/100/1000M, auto-negotiation |
| UART | 5x UART(1x debug, 3x 3-wire serial, 1x 5-wire) |
| IrDA | 1x IrDA, not solderred |
| Power In | 5V main power, 12V auxiliary power |
| RTC | supported |
| ADC | for expanding resistive touching controller |
| Key | 3x key |
| DIP | booting mode selection |
| Reset | 1x reset |
| WiFi& BT | 1x WIFI& BT |
| LCD | 1x LCD, capacitive/ resistive |
| EINT | supported |
| GPIO | supported |
| LVDS | 2x LVDS |
| HDMI | 1x HDMI |
| MIPI DSI | 1x MIPI DSI |
| SATA | 1x SATA( only for FETMX6Q-C) |
| EIM BUS | 32-bit data bus, 27-bit address bus |
| 3G/4G | mini-PCIE, 3G/4G wireless module |
| JTAG | supported |
▊ Software Features
| OS Android | ||
|---|---|---|
|
OS |
Android4.4 |
Android6.0 |
|
Compiler |
arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45 |
arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131 |
|
Flash OS image by SD card or USB OTG |
Flash OS image by USB OTG |
|
|
EXT4 file system is supported |
EXT4 file system is supported |
|
|
MFT Tools are supported on Windows XP/Windows Vista/ Windows 7 |
MFT Tools are supported on Windows XP/Windows Vista/ Windows 7 |
|
|
UBOOT |
boot mode(eMMC/SD/USB OTG) |
boot mode(eMMC/SD/USB OTG) |
|
UBOOT LOGO |
UBOOT LOGO |
|
|
RAM(1G/2G) |
RAM(1G) |
|
|
Android Kernel |
Version: Android-KK4.4.2 |
Version: Android 6.0.1_2.1.0 |
|
EXT4/NFS/FAT32/NTFS file system |
EXT4/NFS/FAT32/NTFS file system |
|
|
eMMC(8G) |
eMMC(8G) |
|
|
Watchdog |
Watchdog |
|
|
RTC |
RTC, RX8010 |
|
|
IO |
IO |
|
|
user key: 2(VOL+,VOL-) |
user key: 2(VOL+,VOL-) |
|
|
SPI, can communicate with MCP2515 |
SPI |
|
|
I2C |
I2C |
|
|
DVP OV5640 |
DVP OV5640 |
|
|
MIPI OV5640 |
MIPI OV5640 |
|
|
USB UVC |
USB UVC |
|
|
PWM |
PWM |
|
|
capacitive touching(GT9XX, GT928) |
capacitive touching(GT9XX, GT928) |
|
|
LCD, 255 ratio adjustable |
LCD, 255 ratio adjustable |
|
|
LCD 1. RGB 4.3'' LCD(480x272) 2. RGB 7'' LCD(800x480) 3. mipi 7''（1024x600 not supported presently） 4. LVDS10.1''(1280x800) 5. HDMI 1920x1080M@60 6. HDMI 1280x720M@60 7. LVDS 1024x768 8. LVDS 1920x1080 9. RGB 5''(640x480) A. RGB 7''(1024x600) |
LCD 1. RGB 7'' LCD(800x480) 2. RGB 7'' LCD(1024x600) 3. LVDS 10.1''(1280x800) 4. HDMI 1920x1080M@60 5. MIPI 1024x600 7'' |
|
|
MIPI-DSI(7'' 1024*600) |
MIPI-DSI(7'' 1024*600) |
|
|
USB Host: U-disk, USB Hub, USB keyboard and mouse |
USB Host: U-disk, USB Hub, USB keyboard and mouse |
|
|
USB Device |
USB Device |
|
|
TF/SD/MMC card: 64GB tested |
TF/SD/MMC card: 64GB tested |
|
|
UART: 5 |
UART |
|
|
WM8962 audio: record and playback, ALSA, speaker (D amplifier), earphone output |
WM8960 audio: record and playback, ALSA, speaker (D amplifier), earphone output |
|
|
Ethernet(AR8031, 1000/100/10Mbps) |
Ethernet (AR8031, 1000/100/10Mbps) |
|
|
3G |
|
|
|
4G, ME909s-821, EC20 |
4G, ME909s-821 |
|
|
WiFi, RTL8723BU, STA |
WiFi, RTL8723BU, STA |
|
|
BT, RTL8723BU |
BT, RTL8723BU |
|
|
GPS, VK1613 |
GPS, VK1613 |
|
|
CAN 2.0B |
CAN 2.0B |
|
|
HDMI |
HDMI |
|
|
USB to UART |
|
|
|
SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q |
SATA hard disk: SATA II, 3.0 Gbps, only available for i.MX6Q |
|
|
LVDS single/ dual channel |
LVDS single/ dual channel(10.1'' 1280*800) |
|
|
Testing APP |
WIFI |
WIFI |
|
RTC |
RTC |
|
|
SPI to CAN MCP2515 |
|
|
|
Flexcan |
Flexcan |
|
|
IP address setting |
IP address setting |
|
|
sleeping mode waken up |
sleeping mode waken up |
|
|
TTL to RS232 |
TTL to RS232 |
|
|
RS485 |
RS485 |
|
|
audio record/ playback |
audio record/ playback |
|
|
3G wireless network |
|
|
|
4G wireless network |
4G wireless network |
|
|
Speaker |
Speaker |
|
|
RGB backlight adjusting |
RGB backlight adjusting |
|
|
Watchdog |
Watchdog |
|
|
MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 ext4 hard disk auto-mounting and uninstalling |
MMC/TF/SD card and U-disk auto-mounting and unintalling; SATA2 hard disk auto-mounting and uninstalling |
|
| OS Linux Console | ||
|---|---|---|
|
Compiler |
arm-fsl-linux-gnueabi-gcc-4.6.2 |
ARMv7 architecture, support hard floating-point calculation |
|
Booting Mode |
USB, SD download flashing |
USB, SD card one-key to start OS image flashing |
|
Single/multiple files automatic flashing |
|
|
|
Support system files flashing in EXT4 format |
|
|
|
MFG tools are supported by WindowsXP/Vista/Windows7 |
|
|
|
UBoot |
boot mode selection(eMMC/USB OTG) |
|
|
RAM |
|
|
|
UBOOT LOGO |
|
|
|
Linux Kernel |
Version: Linux-3.0.35 |
LCD backlight, adjustable up to 255-grade |
|
File system form: EXT4/ NFS/ FAT32/NTFS |
LCD driver(7''800x 480, 10.1'' 1024x 800, 4.3'' 480x 272) |
|
|
eMMC |
USB Host driver: U-disk, USB Hub, USB keypad and mouse |
|
|
watchdog |
USB Device |
|
|
RTC |
TF/SD/MMC card |
|
|
IO |
UART |
|
|
user key |
WM8962 audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output |
|
|
SPI |
Ethernet(AR8031,1000/100/10Mbps) |
|
|
I2C |
3G |
|
| EIM | 4G(EC20) | |
|
OV5640 OV5640-MIPI |
USB to UART |
|
|
PWM |
SATA hard disk driver |
|
|
Capacitive touching driver, resistive touching(Linux) |
LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon) |
|
|
Testing APP |
WiFi |
3G wireless network |
|
telnet |
USB camera |
|
|
RTC |
Audio recording/ playing back |
|
|
SPI to CAN MCP2515 |
IIC |
|
|
Flexcan |
GPU |
|
|
IP/Mac address setting |
IPU |
|
|
Sqllite |
VPU |
|
|
sleeping mode waken up |
Speaker |
|
|
TTLto RS232 |
RGB display backlight adjusting |
|
|
RS485 |
Playing of 1080P video and MP3 file |
|
|
Audio recording/ playing back |
Watchdog |
|
|
GPRS wireless network |
MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling |
|
|
GPS |
FTP |
|
|
SPI |
Boa Web Server |
|
| Linux QT4.8.5 | ||
|---|---|---|
|
Compiler |
arm-fsl-linux-gnueabi-gcc-4.6.2 |
ARMv7 architecture, support hard floating-point calculation |
|
OS Flashing
|
OS flashing by SD card or USB |
USB, SD card one-key flashing |
|
Single/multiple files automatic flashing |
|
|
|
Support system files flashing in EXT4 format |
|
|
|
MFG tools are supported by WindowsXP/Vista/Windows7 |
|
|
|
UBoot |
boot mode selection(eMMC/USB OTG) |
|
|
RAM |
|
|
|
UBOOT LOGO |
|
|
|
Linux Kernel |
Version: Linux-3.0.35 |
LCD backlight, adjustable up to 255-grade |
|
File system form: EXT4/ NFS/ FAT32/NTFS |
LCD 1. RGB 4.3'' LCD(480x272) 2. RGB 7'' LCD(800x480) 3. mipi 7''（1024x600 not supported presently） 4. LVDS10.1''(1280x800) 5. HDMI 1920x1080M@60 6. HDMI 1280x720M@60 7. LVDS 1024x768 8. LVDS 1920x1080 9. RGB 5''(640x480) A. RGB 7''(1024x600) |
|
|
eMMC |
USB Host: U-disk, USB Hub, USB keyboard and mouse, etc |
|
|
Watchdog |
USB Device |
|
|
RTC |
TF/SD/MMC card |
|
|
IO |
UART: 4 |
|
|
User key: 4 |
audio driver: record and playback, ALSA interface, D-class amplifier is supported, speaker and earphone output default chip is WM8960, WM8962 is compatible, users can select in uboot menu |
|
|
SPI |
Ethernet(AR8031, 1000/100/10Mbps) |
|
|
I2C |
3G |
|
| EIM |
4G(Huawei ME909S, Quetel EC20) |
|
|
camera DVP OV5640 MIPI OV5640 |
USB to UART |
|
|
PWM |
SATA hard disk |
|
|
Capacitive touching driver(GT9xx, GT928 and FT5x06), resistive touching(Linux) |
LVDS single/ dual channel(single channel up to 1366x 768, dual channel up to 1920x 1080 will be supported soon) |
|
|
Testing APP |
WiFi |
3G wireless network |
|
telnet |
USB camera |
|
|
RTC |
Audio recording/ playing back |
|
|
SPI to CAN MCP2515 |
IIC |
|
|
Flexcan |
GPU |
|
|
IP/Mac address setting |
IPU |
|
|
Sqllite |
VPU |
|
|
sleeping mode waken up |
Speaker |
|
|
TTL to RS232 |
RGB display backlight adjusting |
|
|
RS485 |
Playing of 1080P video and MP3 file |
|
|
Audio recording/ playing back |
Watchdog |
|
|
GPRS wireless network |
MMC/ TF/ SD card, U-disk, SATA2(depends on file system) hard disk audo mounting and uninstalling |
|
|
GPS |
FTP |
|
|
SPI |
Boa Web Server |
|
| Configuration sheet | |||||
|---|---|---|---|---|---|
|
Name |
Configuration |
Frequency |
Grade |
Temp Width |
Note |
|
FETMX6Q-C SoM i.MX6 Quad Cortex-A9 |
1G DDR3, 8GB eMMC |
1GHz | commercial |
0℃~+70℃ |
-20℃~+70℃ |
|
1G DDR3, 8GB eMMC |
800MHz |
industrial |
-40℃~+85℃ |
|
|
|
2G DDR3, 8GB eMMC |
1GHz |
commercial |
0℃~+70℃ |
optional |
|
| 2G DDR3, 8GB eMMC | 800MHz | industrial | -40℃~+85℃ | optional | |
▊ Download
Catalog:
Forlinx Catalog Manual
Product Brief:
FETMX6DL-C SoM and OKMX6DL-C SBC introduction
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.
Product Standard Shipping List |
|
|---|---|
| FETMX6DL-C System on Module | 1 |
| OKMX6DL-C Carrier Board | 1 |
| 5.5*2.1mm AC220V DC5V 3.0A Power Adapter | 1 |
| Dual-hole Crossed Serial Cable | 1 |
| Others | Packing box, Warranty card, Anti-static bag, Certificate |
| Get the Price | |
▊ Related News
- Application Notes - How To Port SSH to iMX6Q Development Board
- How to Port Python on iMX6Q Development Board
- FAQ of iMX6 Series Development Board
- LCD Porting Based On i.MX6 Series 3.0.35 Kernel
- iMX6 Development Board Android Synchronous Different Display Test
- IP and MAC Address Modification of iMX6 Single-board Computer
- iMX6 Development Board RTL8188cus Chip USB WIFI Use
▊ Other Forlinx iMX6 Series Products
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3，2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5，Linux4.1.15+QT5.6，Android4.2，Android6.0
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3，2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5，Linux4.1.15+QT5.6，Android4.2，Android6.0
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3，2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35，Linux4.1.15，Android4.2，Android6.0
Architecture: Cortex-A9
Frequency: 1.0GHz
RAM: 1GB DDR3，2GB DDR3(optional)
ROM: 8GB eMMC
System: Linux3.0.35+QT4.8.5，Linux4.1.15+QT5.6，Android4.2，Android6.0
