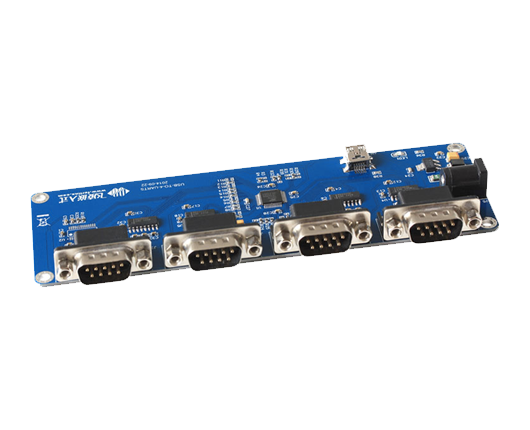

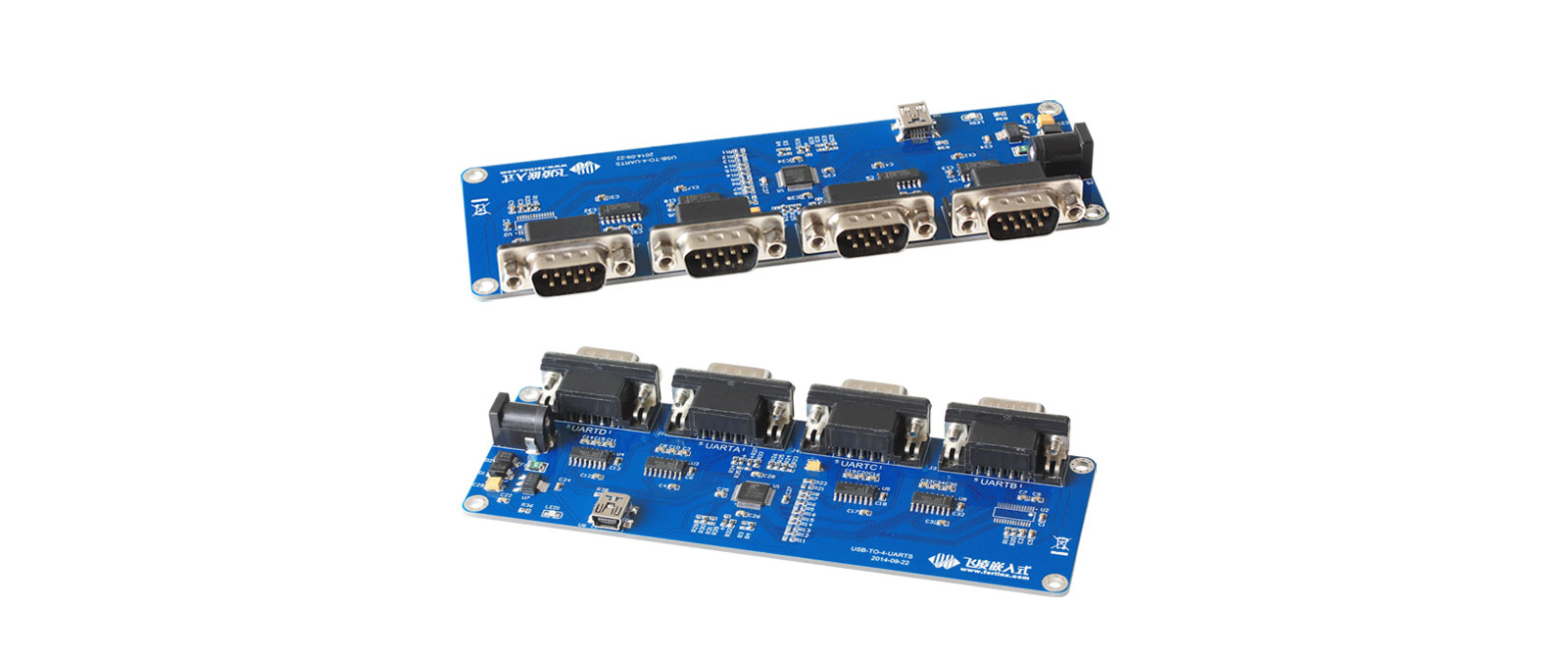

USB to Quad UART Module
Description:
USB to UART interface module allows all Forlinx development boards to switch interfaces
Features:
With the development of technology, there's a lot of use of RS232 serial communication in the industry, but the application of commercial technology has slowly replaced RS232 serial port with USB-to-UART technology. The vast majority of notebook computers already do not have a serial port, so you can add a USB re-serial chip to the circuit, you can successfully realize the USB communication protocol and standard UART serial communication protocol conversion.
| Features of USB to Quad UART Module | |||
|---|---|---|---|
| Product Name | USB to quad UART module | ||
| Model | FIT-USB-TO-4-UARTS | ||
| Working Temp | -40℃~+85℃ | ||
| Spec. | can support four 5-wire serial ports | ||
| Chipset | XR21V1414 | ||
| Main function | XR21V1414(V1414)is an enhanced convert chip to convert USB to 4-ch UART. It can completely compatible with full speed USB2.0 and support USB data transferring rate up to 12Mbps. It can also support suspend, restore and remote wakeup operations. XR21V1414 works at speed of 48MHz but no need any external crystal. Internal separate baud rate generator runs at speed of 48MHz for precise baud rate generating. XR21V1414 is available for 128 bytes sending FIFO and 384 bytes receiving, which can improve data throughout and reduce CPU consumption. Can support auto transceiving direction control, simplified half-duplex RS485 application in both hardware and software. In multi-point (9-bit) mode, it can support auto half-duplex transceiving control function which simplified RS485 application. XR21V1414 working voltage ranges from 2.97V to 3.63V, 5V withstand input, and it is TQFP-48 package | ||
| Compatible with USB 2.0 |
can support 12Mbps full-speed USB data transmission rate, can support USB suspend, recovery and remote waken up |
||
| Strongthen UART Features | data transmission rate up to 12Mbps | auto software flow control(Xon/Xoff) | |
| separate baud rate generator | multi-point mode w/ auto half duplex transceiver | ||
| 128-byte TX FIFO | multi-point mode w/ auto TX enable | ||
| 384-byte RX FIFO | sleeping mode and remote waken up | ||
| can support 7, 8 or 9 data bits, 1 or 2 stop bits | half-duplex mode | ||
| auto hardware flow control(RTS/CTS or Dtr/DSR) | optional GPIO or Modem I/O | ||
| one 9-wire serial and three 5-wire serial can be custimized | |||
| Applicable Single Board Computer | |
|---|---|
| Single Board Computer | OS |
| OKMX6Q/DL-C | Linux3.0.35, Android4.4 |
| OKMX6Q/DL-S3 | Linux3.0.35, Android4.4 |
| OKMX6UL-C/C2 | Linux3.14.38 |
| OK335xD | Linux3.2, Android2.3/4.2 |
| OK335xS | Linux3.2, Android2.3/4.2 |
| OK335xS-II | Linux3.2 |
| OK4418/6818-C | Linux3.4.39, Android5.1.1 |
| OK1012A-C | Ubuntu18.04 |
| OK1043A-C | Ubuntu18.04 |
| OK1046A-C | Ubuntu18.04 |
| OK3568-C | Linux4.19、Android11、Ubuntu |
| OKA40i-C | Linux3.10 |
| Packing List | |
| 1x USB to quad UART module | 1x Mini USB cable |
