i.MX6 Series Single Board Computer & Function Interface
This article introduces You to Forlinx Embedded i. MX6 series development board, more intuitive and simple let everyone understand the function of each product and common areas, we hope this information can help you in Forlinx for you to choose the right board, for the i.MX6 series development board has any problems, welcome to consult online.
List of i.MX6 single board computers
- 1. OKMX6ULL-S Single Board Computer
- 2. OKMX6UL-C1 Single Board Computer
- 3. OKMX6UL-C2 Single Board Computer
- 4. OKMX6DL-S3 Single Board Computer
- 5. OKMX6DL-C Single Board Computer
- 6. OKMX6Q-S3 Single Board Computer
- 7. OKMX6Q-C Single Board Computer

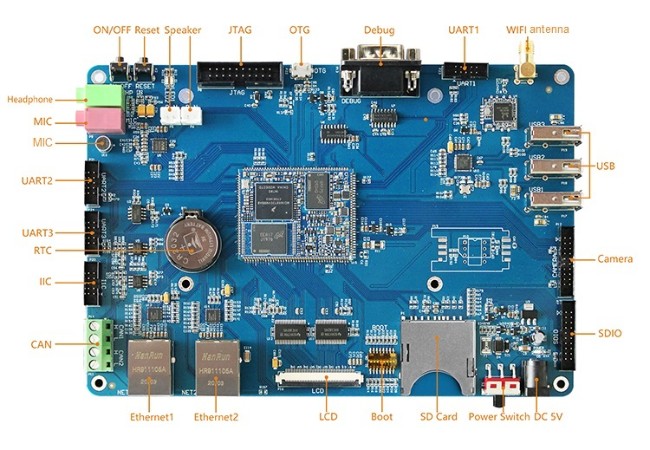

OKMX6ULL-S Single Board Computer
The OKMX6ULL-S development board is based on the NXP's i.MX 6UltraLite / 6ULL processor, a high-performance, low-power processor with frequencies up to 800MHz!
OKMX6ULL-S Board is a low-power Linux single board computer that revolves around the powerful i. MX6ULL core board build. Available in industrial and commercial grades, you can choose from 256MB DDR3L/512MB DDR3L RAM, 256MB
NandFlash/4GB eMMC, which is welded with stamp holes to make it more stable.
Widely used fields: medical, power, security, automotive electronics, rail transportation, communications, electric vehicle tail chasers, smart home, commercial electronics, portable equipment, human-machine interface, and other fields.
Main specifications:
- CPU: i.MX6ULL
- Architecture: Cortex-A7
- Main frequency: 800MHz
- Memory: 256MB DDR3 / 512MB DDR3
- ROM：256MB NandFlash / 4GB eMMC
- System: Linux4.1.15
- Main function interface: 2x Ethernet port, 2x CAN controller, 8x serial port

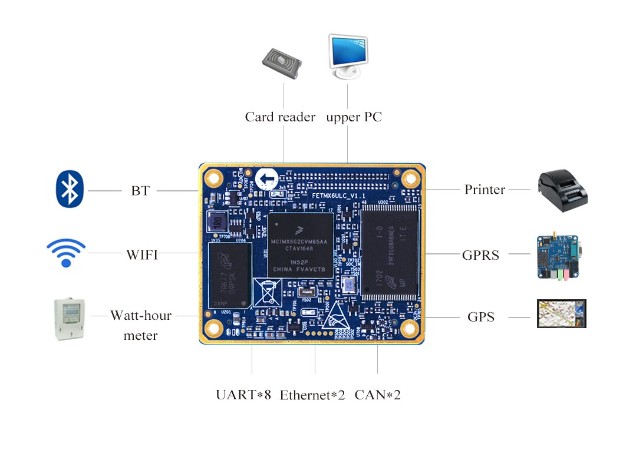

OKMX6UL-C1 Single Board Computer
Based on NXP's i.MX 6UltraLite processor family, the OKMX6UL-C1 has the most efficient ARM Cortex-A7 core and can operate at 528 MHz. It is a complete, ready-to-use embedded system board consisting of a CPU module and a base board that is compact and even smaller than the original NXP SoM. It allows the controller signals and ports to be extended to the base board through headers and connectors, thereby showing more functions of i.MX 6UL ARM Cortex-A7 processor, so it can also be used as a system module (SoM) for your next embedded design.
Main specifications:
- CPU: i.MX6UL
- Architecture: Cortex-A7
- Main frequency: 528MHz
- Memory: 512M LvDDR3
- ROM: 4GB eMMC
- Main function interface: 2x Ethernet port, 2x CAN controller, 8x serial port
- Widely used fields: automotive telematics, IoT gateway HMI, home energy management system, smart energy concentrator, intelligent industrial control system, electronic POS equipment, smart home appliances, financial payment system, etc.

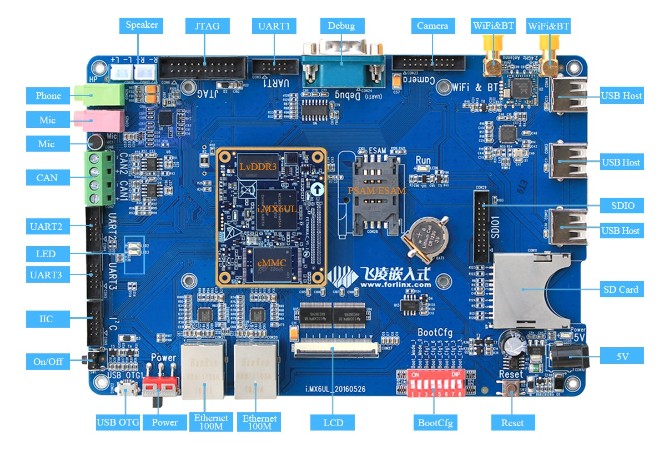

OKMX6UL-C2 Single Board Computer
The i.MX6UL-C2 processor family features advanced implementations of a single ARM® Cortex ®-A7 core running at speeds of up to 528 MHz. The board can be used for commercial-grade CPU modules and industrial-grade CPU modules, with a board size of only 100mm x 73mm, on-board LCD, Ethernet, USB host/OTG, RTC, SD card, LED all available. The 41x GPIO is led by a two-row pin connector with a spacing of 2.54mm, making it easy for users to brush the OS and test board for evaluation.
Main specifications:
- CPU: i.MX6ULL
- Architecture: Cortex-A7
- Main frequency: 528MHz
- Memory: 256MB DDR3,512MB LvDDR3 (optional)
- ROM: 256MB NandFlash,4GB eMMC
- Main function interface: 2x Ethernet port, 2x CAN controller, 8x serial port.

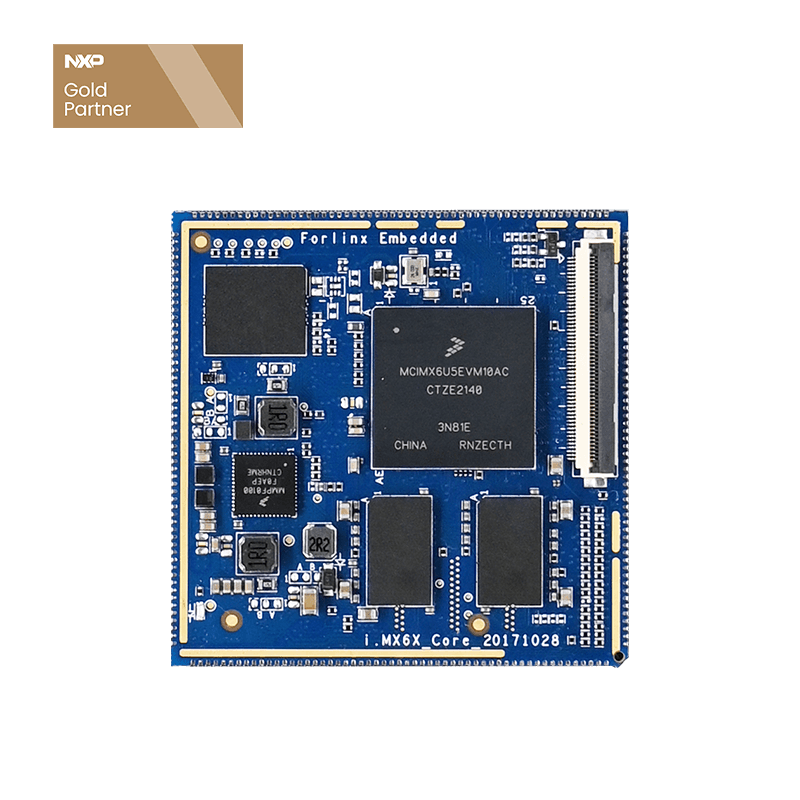

OKMX6DL-S3 Single Board Computer
The OKMX6DL-S3 development board is based on the NXP dual-core ARM Cortex-A9 i.MX6DL high-performance processor design and features a core-board-base-board separation structure. Main frequency 1GHz, 8 layers of PCB gold process, stamp hole connection to ensure the best electrical characteristics and anti-jamming, the core board itself is the smallest system, with its own LCD interface, no base plate without the need for power can start and debug, minimize the difficulty of development. The OKMX6DL-S3 development board is rich in resources, on-board 5M pixel digital camera interface, standard two-way 8-bit LVDS interface and HDMI-1.4 interface to maximize the powerful multimedia performance; D-card interface, RS232, CAN, RS-485 interface, all equipped with protective devices to easily cope with industrial environments, perfect lithium battery management circuitry, support for infrared reception, with stereo audio amplifier, on-board three-axis acceleration sensor, Portable devices can be easily developed.
Main areas: widely used in industrial control, medical, multimedia, security, automotive, finance, teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control and other fields
Main specifications:
- CPU: i.MX6DualLite
- Architecture: Cortex-A9
- Main frequency: 1.0GHz
- Memory: 1GB DDR3, 2GB DDR3 (optional)
- ROM: 8GB eMMC
- Main function interface: 1 land 10/100/1000M adaptive Ethernet interface, 4 UART interface, 1x SPI, 1x CAN interface, etc.
OKMX6DL-C Single Board Computer
Based on the NXP dual-core ARM Cortex-A9 architecture i.MX6Dual Lite high-performance processor design, the OKMX6DL-C development board uses the core board and substrate separation structure, the main frequency 1GHz, the development board is rich in resources, not only equipped with Gigabit Ethernet, CAN-bus, camera, WIFI Bluetooth, and other mainstream interfaces but also introduces MIPI, MLB, EMI BUS CPU unique features.
CPU pins are all drawn out to meet the different functional needs of different products in various fields, the core board will be all CPU pins out, not only support Gigabit Ethernet, DVP, MIPI camera, audio, SDHC, and other interfaces but also support MIPI cameras, MIPI screens, MLB bus, EIM BUS 27-bit address, 32-bit data bus and so on.
Main areas: widely used in industrial control, medical, multimedia, security, automotive, finance, teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control, and other fields.
Main specifications:
- CPU: i.MX6DualLite
- Architecture: Cortex-A9
- Main frequency: 1.0GHz
- Memory: 1GB DDR3, 2GB DDR3 (optional)
- ROM: 8GB eMMC

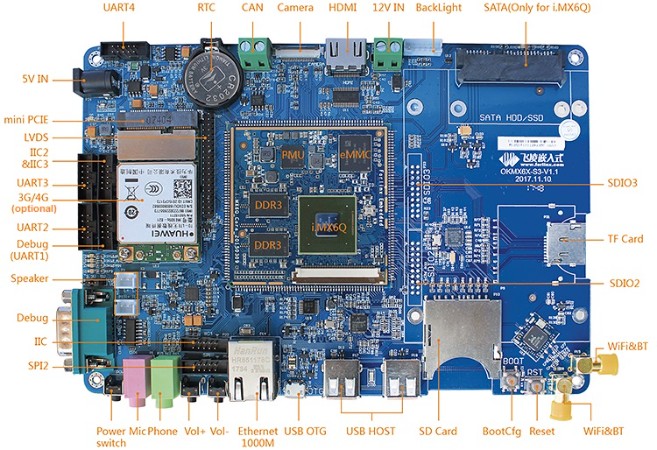

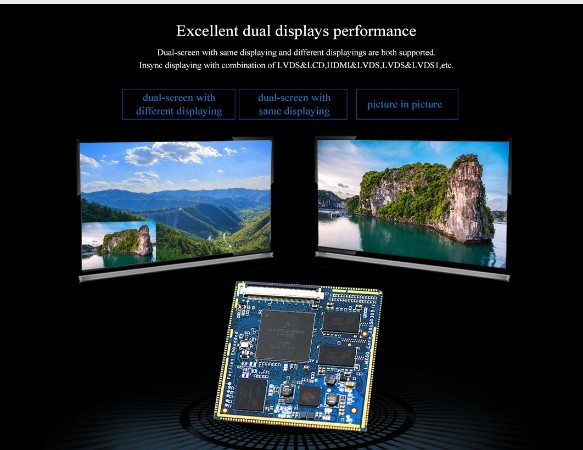

OKMX6Q-S3 Single Board Computer
Based on the NXP quad-core ARM Cortex-A9 i.MX6Q high-performance processor design, the OKMX6Q-S3 development board features a core-and-base board separation structure for easier customer development. Core board main frequency 1.0GHz, 8 layers of PCB gold process, stamp hole connection to ensure the best electrical characteristics and anti-jamming, the core board itself is the smallest system, with its own LCD interface, no need for bottom plate cooperation, power can start and debug, minimize the difficulty of development.
The OKMX6Q-S3 development board is rich in resources, on-board 5M pixel digital camera interface, standard two-way 8-bit LVDS interface, and HDMI-1.4 interface to maximize the power of multimedia performance; Standard SD card interface, SATA hard disk interface storage capacity easily improved to TB level, RS232, CAN, RS-485 interface, are equipped with protective devices, easy to deal with industrial environments, perfect lithium battery management circuitry, support infrared reception, Comes with a stereo audio amplifier and an on-board three-axis acceleration sensor for easy development of portable devices.
Main areas: medical, multimedia, security, automotive, finance, teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control and other fields
Main specifications:
- CPU: i.MX6Quad
- Architecture: Cortex-A9
- Main frequency: 1.0GHz
- Memory: 1GB DDR3, 2GB DDR3 (optional)
- ROM: 8GB eMMC

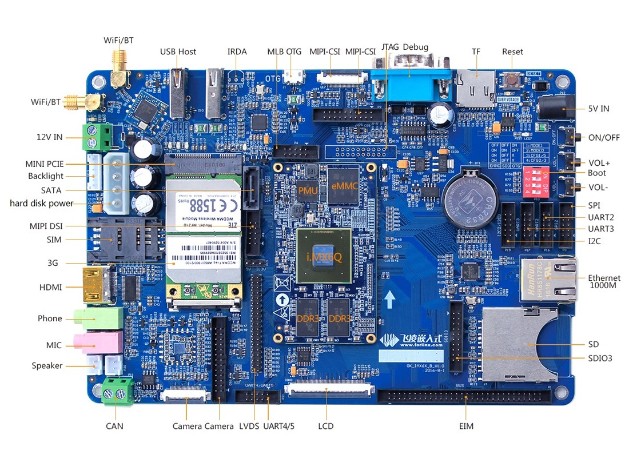

OKMX6Q-C Single Board Computer

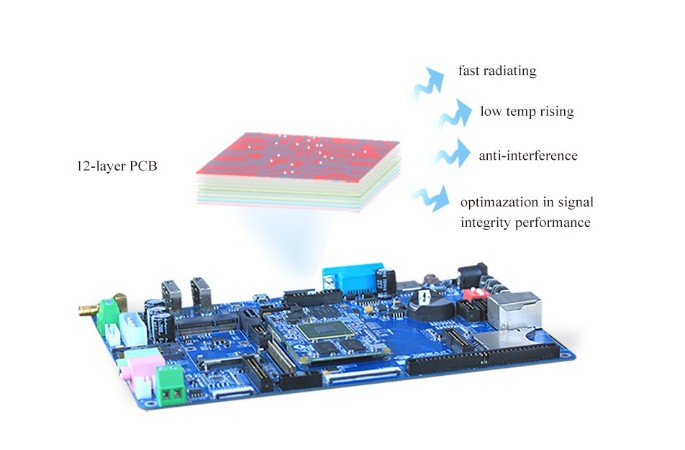

The OKMX6Q-C development board is based on the NXP quad-core ARM Cortex-A9 architecture i.MX6Quad high-performance processor design, with a core-and-base board separation structure with a main frequency of 1GHz. The core board 12 layers PCB gold-sinking process, the small size of only 40mm x 70mm, using four height of 1.5mm ultra-thin connectors, the number of pins up to 320PIN, the processor all function pins out.
The base board is rich in resources, not only equipped with Gigabit Ethernet, CAN-bus, camera, WIFI and Bluetooth, and other mainstream interfaces but also led to MIPI, MLB, EIM BUS, and other CPU-specific features.
CPU pins are all led out to meet the different functional needs of different products in various fields, the core board will be all CPU pins out, not only support Gigabit Ethernet, DVP, MIPI camera, audio, SDHC, and other interfaces but also support MIPI camera, MIPI screen, MLB bus, EIM BUS 27-bit address, 32-bit data bus and so on.
Main areas: widely used in industrial control, medical, multimedia, security, automotive, finance, teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control and other fields.
Main specifications:
- CPU: i.MX6Quad
- Architecture: Cortex-A9
- Main frequency: 1.0GHz
- Memory: 1GB DDR3, 2GB DDR3 (optional)
- ROM: 8GB eMMC
All of the above boards are based on i. MX6 Series processors are designed, although these products can be customized on an original basis for functionality or hardware and software.
