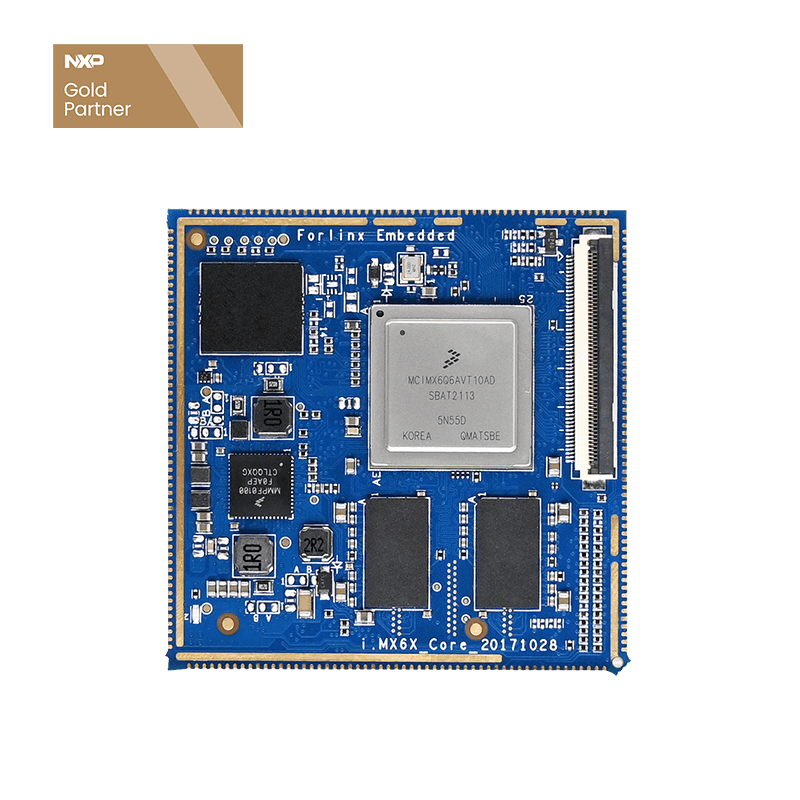

System on Module FETMX6Q-S based on i.MX6 Quad
FETMX6Q-S system on module(SoM) based on NXP quad-core ARM Cortex-A9 i.MX6 Quad-core high-performance processor design, main frequency 1GHz, 8 layers of PCB gold process, stamp hole connection to ensure the best electrical characteristics and anti-jamming, the core board itself is the smallest system, with its own LCD interface, without the bottom plate, power can start and debug, minimize development difficulties.

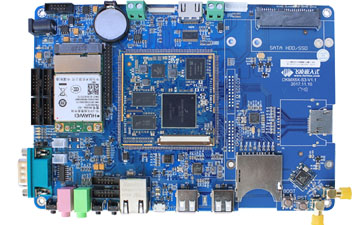

The supporting base plate OKMX6Q-S3 is rich in resources, on-board 5M pixel digital camera interface, standard two-way 8-bit LVDS interface and HDMI-1.4 interface can bring out the powerful multimedia performance; Standard SD card interface, SATA hard disk interface storage capacity easily improved to TB level, RS232, CAN, RS-485 interface, are equipped with protective devices, easy to deal with industrial environments, perfect lithium battery management circuitry, support infrared reception, Comes with a stereo audio amplifier and an on-board three-axis acceleration sensor for easy development of portable devices. Forlinx Embedded FETMX6Q-S SoM is divided into industrial and commercial grade, commercial grade operating temperature of 0 ℃ to 70 ℃, industrial grade operating temperature of -40 ℃ to 85 ℃.
Main Feature of FETMX6Q-S SoM
- Stamp Hole Connection, More Stable Performance
- Vivante GC355 graphics processor;
- RGB, 2x LVDS, HDMI, MIPI;
- 4x IIS, 3x IIC, 5x UART, 2x CAN, 5x SPI;
- 1x DVP, 1x MIPI CSI;
- 1x USB 2.0 Host, 1x USB 2.0 OTG;
- SATA, PCIe, PWM, JTAG, GPIO;
- 10/100/1000Mbps Ethernet;
Advantage
SoM is the smallest system with LCD interface, without baseboard support.
Supports a variety of display screen interfaces and image collectors.
Supports industrial, commercial, and multiple storage configurations.
Supports dual-screen synchronous display, two-screen asynchronous display.

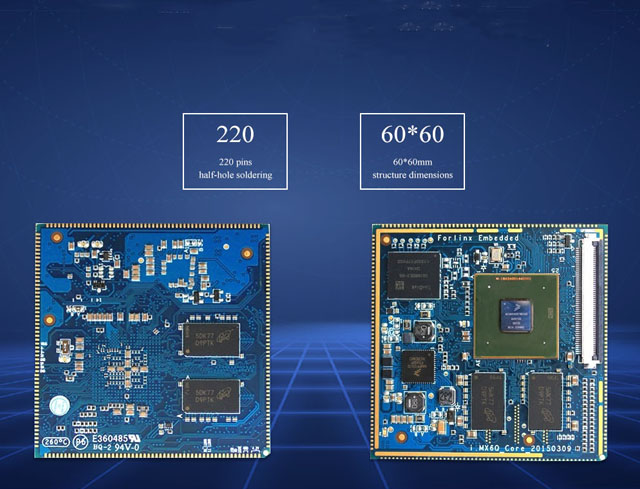

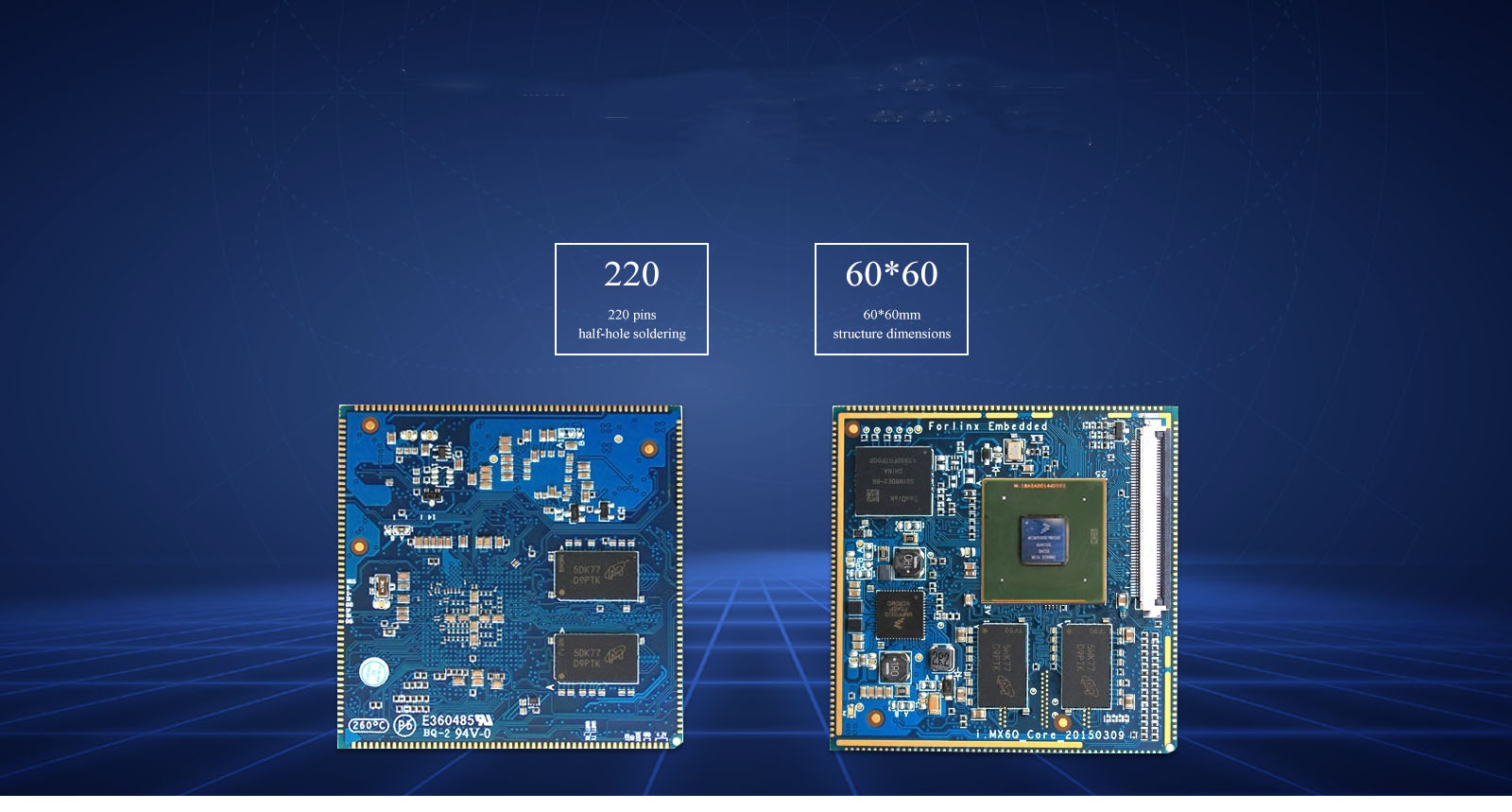

FETMX6Q-S SoM and base plate are connected by stamp holes, which have the advantages of anti-seismic, antioxidant, anti-jamming and low cost.
The number of system on module pins is 220PIN (55 x 4) size 60mm x 60mm square structure design, easy for customers to design PCB layout.
Support for mainstream operating systems
Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5
Target Applications
Widely used in
industrial control , medical, multimedia, security, automotive, finance,
teaching, electricity, communications, charging piles, smart home, consumer electronics, handheld devices, display control and other fields.
Hardware and software references manual
Embedded hardware design manual, embedded Linux development manual
Embedded development environment construction manual, interface driver
Application development examples, etc., everything is more convenient for you to develop products.
▊ Hardware Specs
| FETMX6Q-S System on Module Specs | |
|---|---|
| CPU | NXP i.MX6 Quad |
| Architecture | Cortex-A9 |
| Frequency | 1GHz |
| RAM | 1GB DDR3 / 2GB DDR3 |
| Flash | 8GB eMMC |
| Voltage Input | 4.2V |
| 2D/3D | supported |
| GPU | Vivante GC355/Vivante GC320 |
| PMU | MMPF0100NPEP |
| Dimensions | 60mm*60mm |
| Package | edge soldering |
|
OS |
Android6.0, Android4.4.2, Linux4.1.15+QT5.6, Linux3.0.35+QT4.8.5 |
| LCD | RGB 24-bit(dual 8-bit LVDS) |
| Audio | IIS≤3 |
| I2C | 3-ch |
| SPI | 2-ch |
| CAN | 2-ch |
| USB HOST | 1-ch USB HOST 2.0 |
| USB OTG | 1-ch USB OTG 2.0 |
| SD/MMC/SDIO | 2-ch SD/MMC |
| Ethernet | 1-ch, 1000M |
| miniPCIE | 1-ch |
| UART/IrDA | 4-ch(contains one debug port) |
| EINT/GPIO | supported |
| Video Encoder | hardware codec |
| HDMI | 1-ch |
| Camera | 1-ch, 5.0MP |
| SATA | 1-ch(only available on FETMX6Q-S) |
▊ Software Specs
| Android OS | ||
|---|---|---|
|
OS |
Android4.4 |
Android6.0 |
|
Compiler |
arm-fsl-linux-gnueabi-gcc-4.6.2, JDK1.6.0-45 |
arm-fsl-linux-gnueabi-gcc-4.9, JDK1.7.0-131 |
|
flash OS image by SD card and USB OTG |
flash OS image by USB OTG |
|
|
file system EXT4 |
file system EXT4 |
|
|
flash tool MFG Tools is supported by Windows XP/ 7 and Vista |
flash tool MFG Tools is supported by Windows XP/ 7 and Vista |
|
|
UBOOT |
boot mode selection(eMMC/SD/USB OTG) |
boot mode selection(eMMC/SD/USB OTG) |
|
UBOOT boot LOGO(7'' LCD or 10.1'' LVDS display) |
UBOOT boot LOGO(7'' LCD or 10.1'' LVDS display) |
|
|
RAM(1G/2G) |
RAM(1G) |
|
|
Android Kernel |
Version: Android-KK4.4.2 |
Version: Android 6.0.1_2.1.0 |
|
file system: EXT4/ NFS/ FAT32/ NTFS |
file system: EXT4/ NFS/ FAT32/ NTFS |
|
|
eMMC(8G) |
eMMC(8G) |
|
|
watchdog |
watchdog |
|
|
RTC |
RTC, RX8010 |
|
|
IO |
IO |
|
|
user key: 2(VOL+,VOL-) |
user key: 2(VOL+,VOL-) |
|
|
SPI |
SPI |
|
|
I2C |
I2C |
|
|
DVP OV5640 camera driver |
DVP OV5640 camera driver |
|
|
USB UVC camera driver |
USB UVC camera driver |
|
|
PWM |
PWM |
|
|
capacitive touching driver |
capacitive touching driver |
|
|
LCD backlight, 255-rating |
LCD backlight, 255-rating |
|
|
LCD(7'' LCD 800*480, 10.1 LVDS 1280*800) |
LCD(7'' LCD 800*480, 10.1 LVDS 1280*800) |
|
|
USB Host: U-disk, USB Hub, USB keyboard and mouse |
USB Host: U-disk, USB Hub, USB keyboard and mouse |
|
|
USB Device |
USB Device |
|
|
TF/SD/MMC card: up to 64GB |
TF/SD/MMC card: up to 64GB |
|
|
UART: 5 |
UART |
|
|
WM8962 audio: audio record and playback, ALSA interface, can support speaker(D amplifier),earphone output |
audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output |
|
|
Ethernet (AR8031, 1000/100/10Mbps) |
Ethernet (AR8031, 1000/100/10Mbps) |
|
|
3G |
|
|
|
4G, ME909s-821 |
4G, ME909s-821 |
|
|
WiFi, RTL8723BU, STA |
WiFi, RTL8723BU, STA |
|
|
BT, RTL8723BU |
BT, RTL8723BU |
|
|
GPS, VK1613 |
GPS, VK1613 |
|
|
CAN 2.0B |
CAN 2.0B |
|
|
HDMI |
HDMI |
|
|
USB to UART |
|
|
|
SATA disk: SATA II, 3.0 Gbps |
SATA disk: SATA II, 3.0 Gbps |
|
|
LVDS single/ dual channel |
LVDS single/ dual channel(can support 10.1'' LVDS display: 1280*800) |
|
|
Testing APP |
WIFI tool |
WIFI tool |
|
RTC |
RTC |
|
|
SPI to CAN MCP2515 |
|
|
|
Flexcan |
Flexcan |
|
|
IP address setting |
IP address setting |
|
|
sleeping mode waken up |
sleeping mode waken up |
|
|
TTL to RS232 |
TTL to RS232 |
|
|
RS485 |
RS485 |
|
|
audio record/ playback |
audio record/ playback |
|
|
3G wireless network |
|
|
|
4G wireless network |
4G wireless network |
|
|
Speaker |
Speaker |
|
|
RGB backlight adjusting |
RGB backlight adjusting |
|
|
Watchdog |
Watchdog |
|
|
MMC/ TF/ SD card and U-disk auto mounting and unloading; SATA2ext4 hard disk auto mounting and unloading |
MMC/ TF/ SD card and U-disk auto mounting and unloading; SATA2ext4 hard disk auto mounting and unloading |
|
| Linux Console | ||
|---|---|---|
| Compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 |
ARMv7 architecture, support hard floating-point calculation |
|
OS Image Flashing |
USB download and flash | USB |
|
Single/multiple files automatic flashing |
|
|
| file system: EXT4 |
|
|
|
Flashing tool: MFG tools, Support WindowsXP/Vist/Windows7 PC environment |
|
|
| UBoot | boot mode selection(eMMC/USB OTG) |
|
| RAM |
|
|
| UBOOT boot LOGO(not provided) |
|
|
| Linux Kernel | Version: Linux-3.0.35 |
LCD backlight driver, 255-rating |
|
Support file systems in EXT4/NFS/FAT32/NTFS, etc format |
LCD driver(7'' 800*480, 10.1'' 1280*800, 4.3'' 480*272) | |
| eMMC(4G/8G) | USB Host: U-disk, USB Hub, USB keyboard and mouse | |
| watchdog | USB Device | |
| RTC | TF/SD/MMC card | |
| IO | UART | |
| user key driver | WM8962 audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output | |
| SPI | Ethernet(AR8031, 1000/100/10Mbps) | |
| IIC |
3G, 4G wireless module |
|
| OV5640 camera driver | USB to serial | |
| PWM | SATA disk driver | |
| capacitive touching driver |
LVDS single/ dual channel, up to 1920×1080 |
|
|
Testing APP |
WiFi tool | 3G wireless network |
| telnet | USB camera testing | |
| RTC | audio record/ playback test | |
| SPI to CAN MCP2515 | IIC test | |
| Flexcan | GPU test | |
| IP/Mac address setting | IPU test | |
| Sqllite | VPU test | |
| Sleeping mode waken up | Speaker test | |
| TTL to RS232 | RGB display backlight adjusting | |
| RS485 test | 1080p video and mp3 file playing | |
| audio record/ playback test | watchdog | |
| GPRS wireless network | MMC/TF/SD card and U-disk SATA2ext4 auto mounting and uninstalling | |
| GPS test | FTP | |
| SPI test | Boa Web Server | |
| OS Linux Qt4.8.5 | ||
|---|---|---|
| Compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 | ARMv7 architecture, support hard floating-point calculation |
| Programming method | USB download and flash | USB |
| Single/multiple files automatic flashing |
|
|
| file system: EXT4 |
|
|
|
Flashing tool: MFG tools, Support WindowsXP/Vist/Windows7 PC environment |
|
|
| UBoot | boot mode selection(eMMC/USB OTG) |
|
| RAM |
|
|
| UBOOT LOGO(not provided) |
|
|
|
Linux Kernel |
Version: Linux-3.0.35 | LCD backlight driver, 255-rating |
| Support file systems in EXT4/NFS/FAT32/NTFS,etc format |
LCD driver(7'' 800*480, 10.1'' 1280*800, 4.3'' 480*272) |
|
| eMMC(4G/8G) |
USB Host: U-disk, USB Hub, USB keyboard and mouse |
|
| watchdog |
USB Device |
|
| RTC | TF/SD/MMC card | |
| IO | UART: 4 | |
| user key: 4 | WM8962 audio: audio record and playback, ALSA interface, can support speaker(D amplifier), earphone output | |
| SPI | Ethernet(AR8031, 1000/100/10Mbps) | |
| IIC |
3G, 4G wireless module driver |
|
| OV5640 camera driver | USB to serial | |
| PWM | SATA hard disk driver | |
| capacitive touching driver | LVDS single/ dual channel(single channel up to 1366×768, dual channel up to 1920×1080 coming soon) | |
|
Testing APP |
WiFi tool | 3G wireless network |
| telnet | USB camera test | |
| RTC | audio record and playback | |
| SPI to CAN MCP2515 | I2C | |
| Flexcan | GPU | |
| IP/Mac address setting | IPU | |
| Sqllite | VPU | |
| sleeping mode waken up | Speaker | |
| TTL to RS232 | RGB baklight adjusting test | |
| RS485 | 1080p video and mp3 file playing | |
| audio record and playback | watchdog | |
| GPRS wireless network | MMC/TF/SD card and U-disk SATA2ext4 auto mounting and uninstalling | |
| GPS | FTP | |
| SPI | Boa Web Server | |
| FETMX6Q-S SoM list | |||||
|---|---|---|---|---|---|
|
Name |
Configuration |
Frequency |
Grade |
Working temp |
Note |
|
FETMX6Q-S system on module |
1G DDR3, 8GB eMMC |
1GHz |
commercial grade |
0℃~+70℃ |
|
|
1G DDR3, 8GB eMMC |
800MHz | industrial grade |
-40℃~+85℃ |
optional |
|
|
2G DDR3, 8GB eMMC |
1GHz |
commercial grade |
0℃~+70℃ |
optional |
|
| i.MX6Q VS i.MX6DL | |||||
|---|---|---|---|---|---|
| Item | i.MX6Q | i.MX6DL | |||
| Core number | 4 | 2 | |||
| Internal RAM(KB) | 256 | 128 | |||
| On-chip SRAM(KB) | 256 | 128 | |||
| DRAM Frequency(Max)(MHz) | 533 | 400 | |||
| SATA | S-ATA II(3Gbps) | - | |||
| Package Dimension(LxWxZ)(mm) | 21*21*1.45 | 21*21*1.5 | |||
| Main CPU: L2 Cache (Max)(KB) | 1024 | 512 | |||
