OK3399K-C Single Board Computer
CPU: Rockchip RK3399K
Architecture: 2x Cortex-A72 + 4x Cortex-A53
Frequency: [email protected]，[email protected]
RAM: 2GB / 4GB LPDDR3
ROM: 16GB / 32GB eMMC
System: Linux4.4.189，Android7.1，ForlinxDesktop 18.04
This single board computer has been discontinued. For bulk purchase, product recommendations, or customized related products, please contact the online customer service. ----> Click to inquire
▊ Other Forlinx Recommendations
Architecture: Cortex-A53，Cortex-A72
Frequency: 1.4GHz，1.8GHz
RAM: 2GB / 4GB LPDDR3
ROM: 16GB / 32GB eMMC
System: Linux4.4.189+ QT5.12，Android7.1
Architecture: Cortex-A55
Frequency: 1.8GHz，2.0GHz
RAM: 2GB/4GB/8GB DDR4(Standard 2GB)
ROM: 16GB eMMC
System: Linux4.19+QT5.12, Android 11
Architecture: 4*A76+4*A55
Frequency: [email protected]，[email protected]
RAM: 4GB/8GB LPDDR4x
ROM: 32GB/64GB eMMC
System: Android12.0,Ubuntu*,Linux*

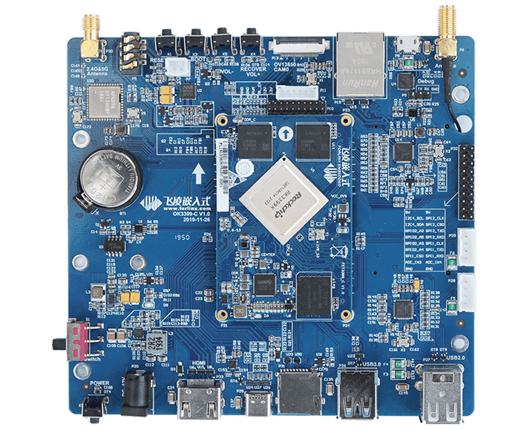

Single Board Computer OK3399K-C based on Rockchip RK3399K
OK3399K-C single board computer (SBC) can serve as a development platform for both evaluation and application development purpose. The kits provide a great showcase of the Rockchip RK3399K SoM connectivity features and performances. It's integrated with GPU Mali-T864, can support OpenGL ES1.1/ 2.0/ 3.0/ 3.1, OpenVG1.1, OpenCL and DX11. It has on-board 2GB LPDDR3 RAM and 16GB eMMC. A variety of display interfaces such as HDMI2.0, MIPI-DSI, eDP1.3 and DP1.2 are all available and resolution up to 4K. Dual-screen both synchronous and asynchronous playing are well supported. Besides, it carries PCIe, USB3.0 Host, Type-C, MIPI-CSI, SPDIF, IIC, SPI, UART, ADC, PWM, GPIO, IIS(8 digital micphone array input) and Ethernet on board.
Hardware and software customization options are available to ensure that the OK3399K-C SBC is ready the moment you open the box. The OK3399K-C comes with Android 7.1 and can be customized at the factory to suit your needs. Provide more customization options to help reduce turnaround times, speed development, and ensure rapid deployment. Forlinx will work directly with you to ensure that your requirements are met.
Target application
Self-service terminal
Edge computing
5G Smart terminal
POS machine
Facial recognition
…… ……
High-speed connectors, OSP and misplug-proof designing
SoM can be mounted to carrier board via four 80-pin ultra thin connectors with strong OSP performance,
which guarantees high signal transaction reliability and protects contacts from touching and stain;
Misplug-proof deisigning to avoid SoM failure by misplug operation.
OK3399K-C SBC Interface Display
Powerful and various communication channels
OK3399K-C has on-board Gigabit Ethernet interface, can support 2.4GHz & 5GHz WiFi, BT5.0, and also it's preserved with mini PCIe package for 4G LTE.
Easy for evaluation and development
All pins except standard peripherals are all drawn out by pin connectors with pitch of 2.54mm, including SPIx 2, IIC,
ADCx 2, GPIOx 4. 2 USB2.0 Host are expanded by XH2.54 connectors which can be mounted with binocular camera or be used for serial expansion.
Easy for installation
OK3399K-C is available with 2 structures with dimension difference. 130x 155mm and 130x 140mm, the
former one can fit a stardard aluminum enlcosure and the later compact one for user-defined enclosure.
▊ Product Video
OK3399-C SBC Demo | Rockchip RK3399 processor based
▊ RK3399K System on Module Hardware Features
|
CPU |
RK3399 hexa-core, Big.Little architecture |
|
GPU |
3D graphical engine:
2D graphical engine: • maximum resolution: source 8192x8192, and target 4096x4096 |
|
VPU |
Decode:
Encode: |
|
RAM |
• 2GB(optional 4GB) |
|
ROM |
• 16GB(optional 32GB)
• eMMC 5.1 storage |
|
Working Temperature |
0℃~80℃ |
|
Dimensions |
46mm x 70mm |
|
Voltage Input |
12V |
|
OS |
Android
Linux
ForlinxDesktop |
| Interface |
Spec. |
|
Display |
dual-screen engine up to 4096x 2160 and 2560x 1600, can output from below ports: MIPI-DSI ≤2• CPU has 3 built-in MIPI PHY, MIPI0 can be only used as DSI, MIPI1 can be used as DSI or CSI, MIPI2 can be only used as CSI • each DSI port has 4 data lanes, can support data transferring rate up to 6.0Gbps • each DSI port can support output up to 1080P@ 60FPS • MIPI0 and MIPI1 combination can support output 2560x 1600@ 60FPS eDPx1• eDP V1.3 • RGB 6/ 8/ 10-bit • 4 data lanes, each 2.7/ 1.62Gbps • can support PSR DP x1• Display Port V1.2 • compatible with HDCP2.2(backward compatible with HDCP1.3) • only has one built-in DP controller, can output from Type-C* • support outputting up to 4Kx 2K@ 60Hz HDMI x1• HDMI1.4, HDMI2.0 • up to 18Gbps port trunks • up to 180P@ 120Hz, 4Kx 2K@ 60Hz, QXGA@ 120Hz • HDCP1.4/ 2.2 |
|
Audio |
I2S/PCM x3 |
|
Camera |
MIPI CSI ≤2 |
|
USB |
• USB Type-C x2(multiplexed with USB 3.0) |
|
USB OTG3.0 |
• USB OTG 3.0 x2( contains USB OTG 2.0 x2) |
|
USB 2.0 |
• USB 2.0 Host x2(separated, not multiplexed with 3.0) |
|
SD/MMC |
• SD/MMC x2 |
|
Ethernet |
• Gigabit Ethernet x1 |
|
SPI |
• SPI x5 |
|
UART |
• UART x5 |
|
I2C |
• I2C x7 |
|
PCIe |
• PCIe x 1 |
|
PWM |
• PWMs x3 |
|
ADC |
• ADC x5 |
▊ RK3399K Single Board Computer Hardware Features
| Functional Interface |
Spec. |
| Power In | DC12V |
|
HDMI
|
• HDMI1.4, HDMI2.0 • up to 18Gbps port trunks • up to 180P@ 120Hz, 4Kx 2K@ 60Hz, QXGA@ 120Hz • HDCP1.4/ 2.2 |
|
USB Type-C |
• install or update system by USB type-C |
|
TF Card |
• install or update system by TF card |
|
USB3.0 |
• protocol: USB3.0, USB2.0, USB Host 1.1 |
|
USB 2.0 |
• USB 2.0 Host x4, USB 2.0 Host Type-A x 2
• USB 2.0 Host XH2.54 x 2 • P28 is expanded by HUB |
|
IO Expand |
SPI x2
UART x1
I2C x1
ADC x2
GPIO x4 |
|
4G |
• Mini PCIe package |
| Debug |
• Micro USB connector
• on-board USB to serial chip(CP2102) |
|
Ethernet |
• 10/100/1000-Mbps auto-negotiation, RJ 45 connector |
|
Camera
|
• MIPI CSI x2 |
|
VoL |
• it's configured to audio volume adjusting keys in Android system |
|
3.5mm Earphone |
• can support MIC and Headphone |
|
Speaker |
• output consumption rate up to 1W |
|
WIFI& BT |
• WIFI
BT • UART/ PCM@ BT • can support slave mode and slave mode |
|
eDP |
• eDP v1.3 |
| MIPI-DSI |
• 4 data lanes, each 6.0 Gbps • each up to 1080P@ 60FPS |
| M.2 |
• PCIe x 4 full-duplex • each channel serial data transferring rate up to 2.5GT/ S to each direction • M.2 KEY M connector • preserved with 2260 and 2280 mounting holes for M.2 device • can support NVMe static hard disk |
▊ Evaluation Kit
- 1x FET3399K-C core board;
- 1x OK3399K-C carrier board;
- 1x WIFI antenna (2.4G&5G dual-band, gain 5dB, SMA interface, length 19.5cm);
- 1x heat sink 38*38*10mm;
- 1x Anti-static bag (17*28cm).
Kits Pack
- 1x data cable (USB to micro interface, 1.2m long, black);
- 1x warranty card;
- 1x power adapter (XED-SN2013S, 5.5*2.1mm, AC220V, DC12V, 2A);
- 1x packing box (235*195*95mm).
▊ Accessories
Please click here to get more information about the supported modules and accessories.
Technical Support
Forlinx provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.
Forlinx provides embedded hardware reference manual, embedded software reference manual, including Rockchip RK3399 embedded software Android system reference manual, and Linux system reference manual.
