OKMX6ULL-C Single Board Computer Based on NXP i.MX6ULL
OKMX6ULL-C Single Board Computer (SBC) is based on the NXP Cortex-A7 architecture, featuring the low-power i.MX6ULL processor running at 800MHz. Adopt SoM+Carrier Board structure, while SoM is only 40*29mm, suitable for application scenarios with a limited volume. Native support: 8 serial ports, 2 Ethernet ports, 2 CAN controller, 2 USB 2.0, LCD, etc.

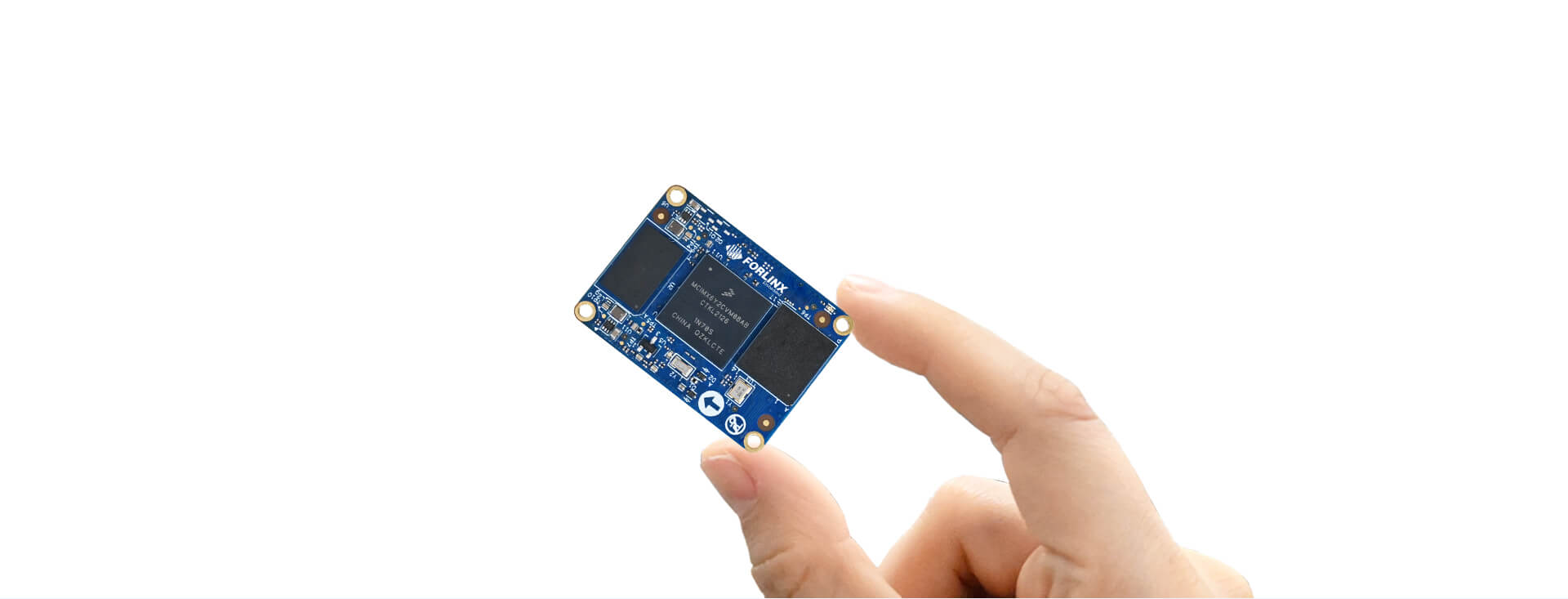

Small but Complete
Cute little, compact size of 40*29mm.
Package: 2mm height board to board connector
Combines small size and easy disassembly.
Mature and Stable
This is the third SOM launched by Forlinx based on NXP i.MX6U series processors.
Matured technical solutions.
Stable and reliable.

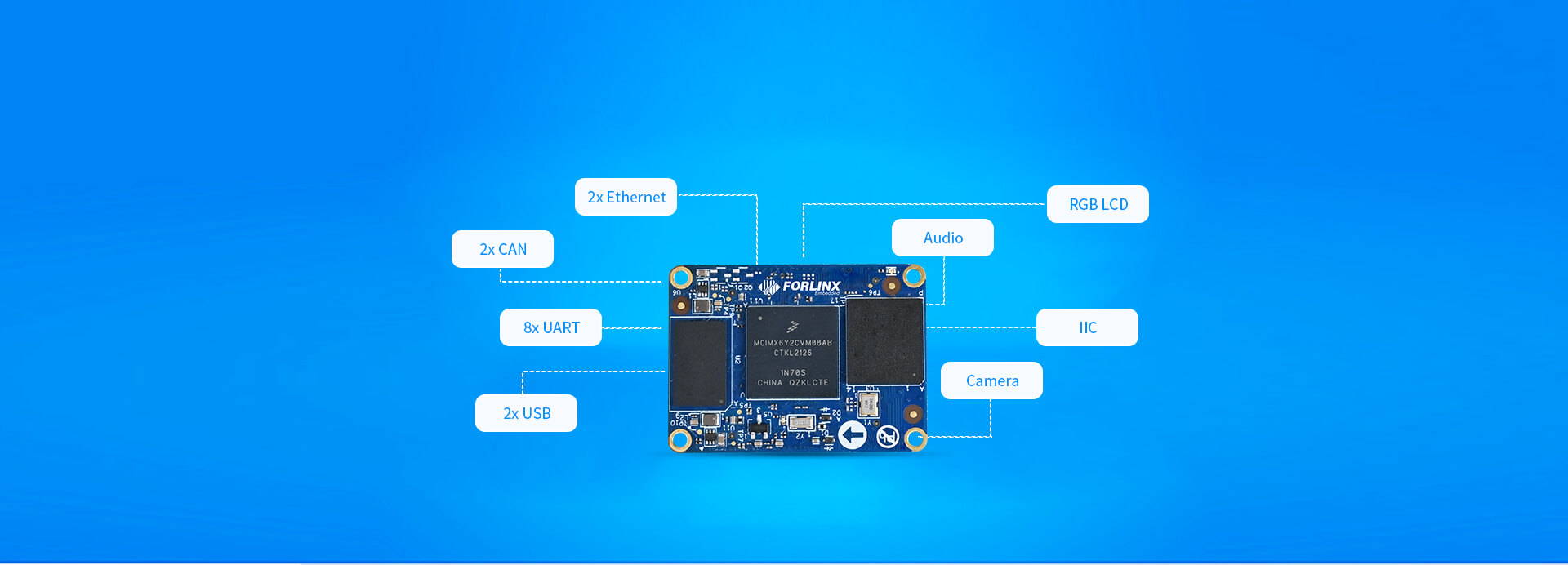

Comprehensive Functions
Native support: 2x Ethernet, 2x CAN, 8x UART, 2x USB, RGB LCD, Audio, IIC, SPI, Camera, PWM, ADC, SDIO, GPIO,etc.
Meet the requirements of various application scenarios

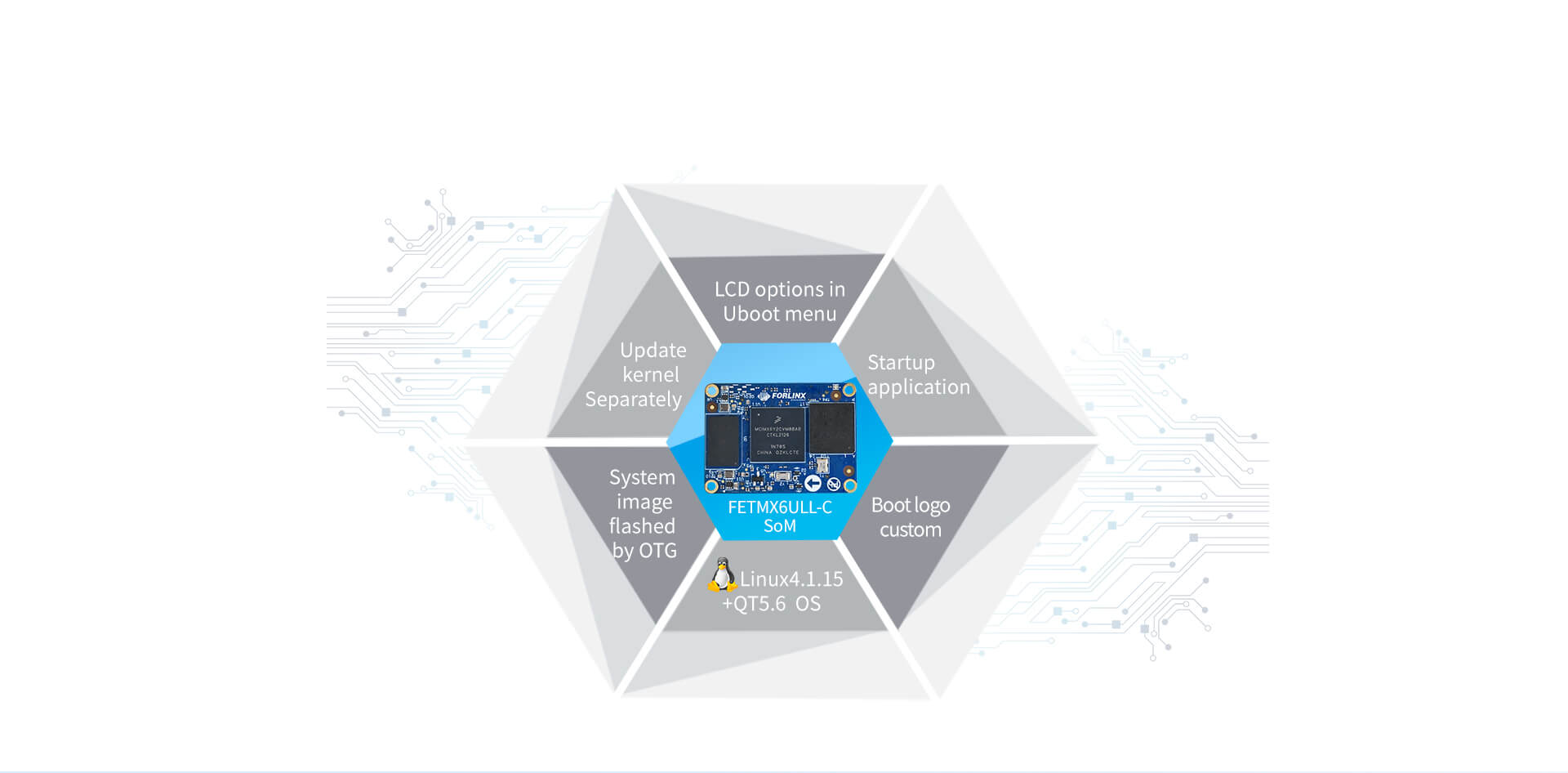

Easy to Develop and Product
Separate kernel update
Batch flashing by OTG, SD/TF cards
Convenient for development and mass production.

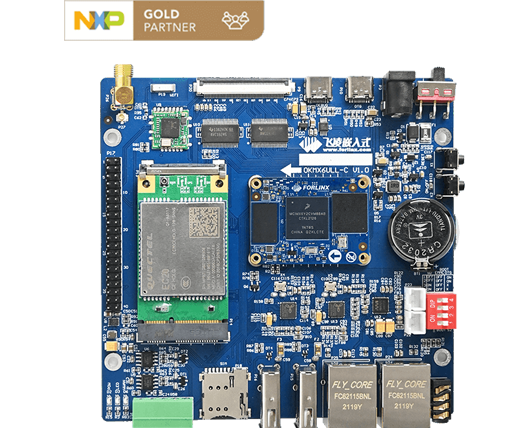

OKMX6ULL-C Single Board Computer
Matched Development Board, Integrates rich functional interfaces, Makes easy product evaluation.
Target Applications
The SoM could be widely used in electric power, healthcare,
industrial control and automation, environmental monitoring,
self-service terminal, security, vehicle transportation, communication, charging piles, smart home, consumer electronic, handheld device, gateway, HMI, etc.
▊ Product Video
Unboxing | OKMX6ULL-C SBC Based on NXP i.MX6ULL A7 Processor
▊ Hardware Features
|
FETMX6ULL-C SoM Basic Parameters |
|
|---|---|
|
CPU |
NXP i.MX6ULL |
|
Architecture |
Cortex-A7 |
|
Frequency |
800MHz |
|
RAM |
512MB DDR3 |
|
ROM |
8GB eMMC |
|
Voltage Input |
3.3V |
|
Working Temperature |
-40~85℃ |
|
Dimensions |
40mm*29mm |
|
Package |
board to board connector |
|
OS |
Linux4.1.15+QT5.6 |
|
FETMX6ULL-C SoM Function Parameter |
|
|---|---|
|
LCD |
RGB 24-bit, up to WXGA (1366 x 768) |
|
Audio |
3 |
|
I2C |
4 |
|
SPI |
4 |
|
CAN |
2 |
|
USB |
2 |
|
SD/MMC/SDIO |
2 |
|
Ethernet |
2x 10/100M |
|
UART/IrDA |
8 |
|
EINT/GPIO |
supported |
|
Video Coder |
software codec |
|
Camera |
1-ch, 8-bit(DVP), up to 5-Megapixel; |
|
PWM |
8 |
|
ADC |
10 |
|
eSAI |
1 |
|
Keypad Port |
8*8 |
|
SPDIF |
1 |
|
QSPI |
1 |
|
OKMX6ULL-C SBC Function Parameter |
|
|---|---|
|
Ethernet |
2x 10/100M, RJ45 |
|
USB Host |
2x USB2.0, Type-A |
|
4G |
Mini PCIe |
|
CAN |
2x CAN 2.0B |
|
LED |
3, Power, User, 4G signal |
|
Audio |
1x Phone, 1x MIC, 2x Speaker |
|
RTC |
supported |
|
Power input |
5V DC |
|
LCD |
1x RGB888, support touch function |
|
PWM |
1, for backlight control |
|
WiFi&Bluetooth |
1 |
|
USB OTG |
1x USB Type-C |
|
SD |
1 |
|
UART |
4x 3.3V TTL level, by pin headers with pitch of 2.54mm |
|
I2C |
2x 3.3V TTL level, by pin headers with pitch of 2.54mm |
|
SPI |
2x 3.3V TTL level, by pin headers with pitch of 2.54mm |
▊ Download
Catalog:
Forlinx Catalog Manual
Product Brief:
FETMX6ULL-C SoM and OKMX6ULL-C SBC introduction
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.
