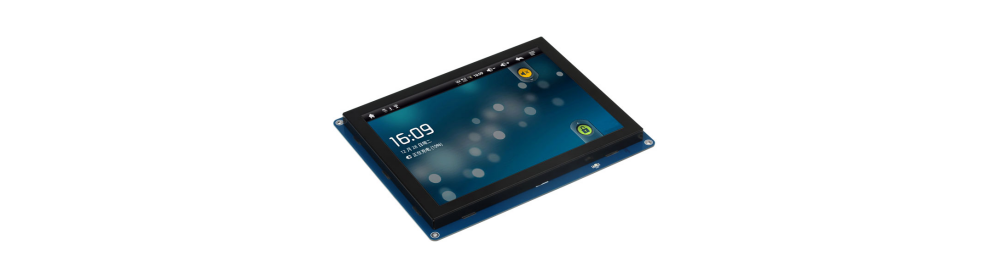

8.0-inch LCD Module with Resistive Touch Panel
Here is an introduction to Forlinx’s 800*600 TFT LCD module. 8-inch displays have plenty of IC and interface combinations. There are also options of TFT LCD display with control panel. If you couldn't find a suitable module on our page, we have more models that are not published on the website. You are welcome to click "contact us" button on the top of this page. We’re more than happy to serve you.
8 inch Resistive LCD Module is 800x600 dots 8" color TFT Lcd module display with HDMI, VGA, Video signal driver board, optional 8-inch 4-wire resistive touch panel, touch panel USB port controller board, remote control, superior display quality, super wide view angle. It can be used in any embedded systems, car, industrial device, security and hand-held equipment which requires display in high quality and colorful video. It's also ideal for HDMI, can support all Forlinx development board/ single-board computers.
Package Included:
8 inch resistive LCD module x 1
FPC cable x 1
Stylus x 1
▊ Feature of 8 inch Resistive LCD Module
| 8" Resistive LCD Module | |||
|---|---|---|---|
| Model | FIT-LCD8.0R | Resolution | 800*600 |
| Crystal | AT080TN52 | Touch Type | Resistive touch |
| Connector | FPC connector | ||
| Backlight | LED | Color | 16777216 |
| Pixel Scale | 4:3 | Active Area(mm) | 162.0(W) × 121.5(H) |
| Dot Pitch(mm) | 0.2025 | Angle(U/D/L/R) | 50/70/70/70 |
| Brightness(cd/m2) | 250 | Contrast | 500:1 |
| Response Time(ms) | Ton 10 Toff 15 | Pin Number | 50 |
| Backlight Consumption(W) | 1.8 (Typ.) | Working Temp | -20℃～+70℃ |
| Available single board computer: OK335xD, OK335xS, OK335xS-II | |||
