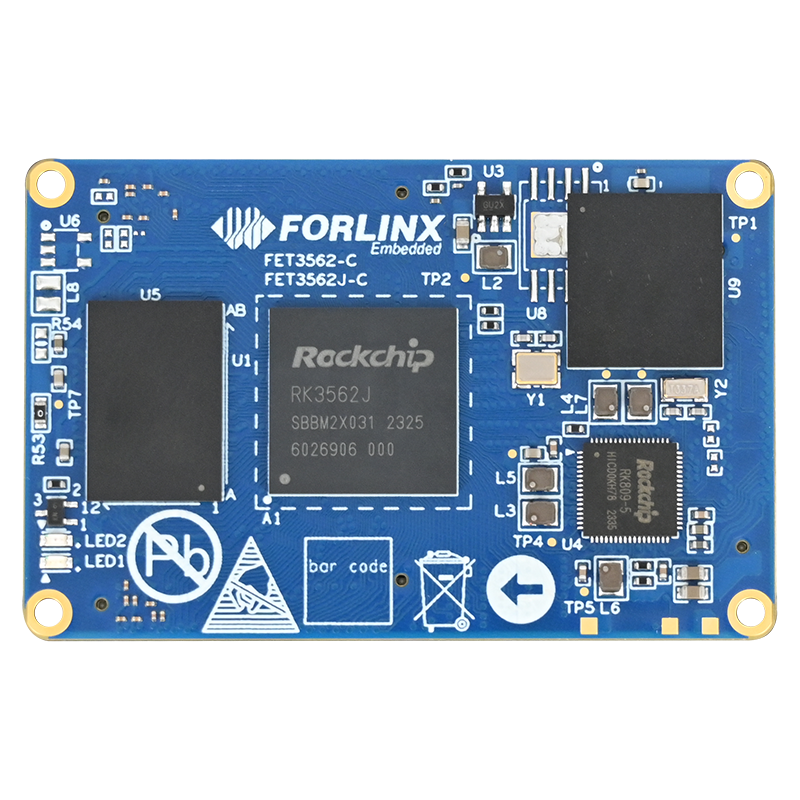

FET3562J-C System on Module Based on Rockchip RK3562J Processor

GPU: Mali-G52-2EE，supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.0 and 1.1

VPU:

Hard encode: H.264，1920×1080@60fps

Hard decode: H.265、VP9，4096×2304@30fps；H.264，1920×1080@60fps

RAM

1GB/2GB LPDDR4

ROM

8GB/16GB eMMC

Power input

DC 5V

Operating temp

-40℃~+85℃

0℃~+70℃

Package

Board-to-board connector(3*80-pin, 0.5mm pitch, combined height 2.0mm)

OS version

Linux5.10.198、Android

Dimensions

36mm x 56mm

Flashing

USB OTG

TF Card

MIPI DSI

≤1

Supports 1x MIPI DSI TX, 4 lanes, up to 2048×1080@60Hz

Multiplexed & alternative

Can support 1 display out at most

LVDS

≤1

Supported form: VESA/JEIDA LVDS, up to 800×1280@60Hz

RGB

≤1

RGB888, up to 2048×1080@60Hz

MIPI CSI

4

Two ports including MIPI_CSI_RX0 and MIPI_CSI_RX1 are available;

A single port supports 4-lane with each lane up to 2.5Gbps;

A single port can be split to 2x 2-lane

Can support up to 4 CSI input together

Audio

/

Built-in codec, sampling rate up to 48KHz~192KHz: single channel Speaker, class-D, 1.3W;

Stereo phone output, 32)hm, 2 single-end MIC

SAI

≤3

SAI0~SAI2, supports I2S/PCM/TDM, 8bits~32bits，sampling rate up to 192kHz;

SAI0 is occupied by SoM, circuited to SoM built-in Codec

PDM

≤1

Up to 8 channels, sampling rate up to 192KHz, host-receiving mode

SPDIF

≤1

Supports 2x 16-bit audio data stored in one 32-bit wide location;

Supports bi-phase format stereo audio data output;

Supports 16/20/24-bit audio data transmission in linear PCM mode;

Supports non-linear PCM transmission.

SD Card

1

Compatible with SDIO3.0, 4 bits data width

SDIO

≤1

Compatible with SDIO3.0, 4 bits data width

Ethernet

≤2

Supports 1x RGMII(10/100/1000Mbps auto-negotiable) and 1x RMII(10/ 100Mbps auto-negotiable)

USB2.0

1

USB2.0 Host, up to 480MHz

USB3.0

≤1

Supports USB3.0 host/ slave mode, compatible with USB2.0

USB3.0 and PCIe2.1 are multiplexed, when working with PCIe2.1, USB2.0 in USB3.0 is available

PCIe2.1

≤1

Can only used as RC mode, only available for single-channel, 5Gbps

UART ⁽¹⁾

≤10

UART0~UART9，support 5/6/7/8bits serial data transferring or receiving, supports flow control(exclude UART0), up to 4Mbps

CAN

≤2

CAN2.0B, 1Mbps

SPI

≤3

Supports host/ slave mode

I2C ⁽²⁾

≤5

I2C1~I2C5, support 7bits mode and 10bits mode, standard mode with 100Kbit/s and HS mode with 400Kbit/s

PWM

≤16

Supports 16 on-chip PWMs with interrupt operation, embedded 32-bit timer/counter, supports capture mode, supports continuous mode or one-shot mode

ADC ⁽³⁾

≤16

2x SARADC, each one contains 8-channel single-ended input, 10-bit, sampling rate up to 1MS/s

GPIO

≤79

Maximum supported pins, multiplexed.
