FET-MX8MPQ-SMARC System on Module Based on NXP i.MX 8M Plus Processor
The FET-MX8MPQ-SMARC System on Module(SoM) / Computer on Module is based on the NXP i.MX 8M Plus processor and focuses on machine learning, vision, advanced multimedia and high-reliability industrial automation. It is aimed at applications such as smart cities, industrial IoT, smart healthcare, and intelligent transportation.
With powerful quad-core or dual-core ARM Cortex-A53 reaching up to 1.6GHz and an NPU achieving 2.3 TOPS, it integrates ISP and dual camera inputs for efficient advanced vision systems. Multimedia features include video encoding (including H.265) and decoding, 3D/2D graphics acceleration, and various audio and voice functions. Real-time control is achieved through Cortex-M7, with a powerful control network using CAN-FD and dual Gigabit Ethernet, supporting Time-Sensitive Networking (TSN). It features high-speed communication interfaces such as 2 x USB 3.0, 1x PCIe 3.0, and 1x SDIO 3.0, meeting the requirements of 5G networks, high-definition video, dual-band WiFi, high-speed industrial Ethernet, and other applications.

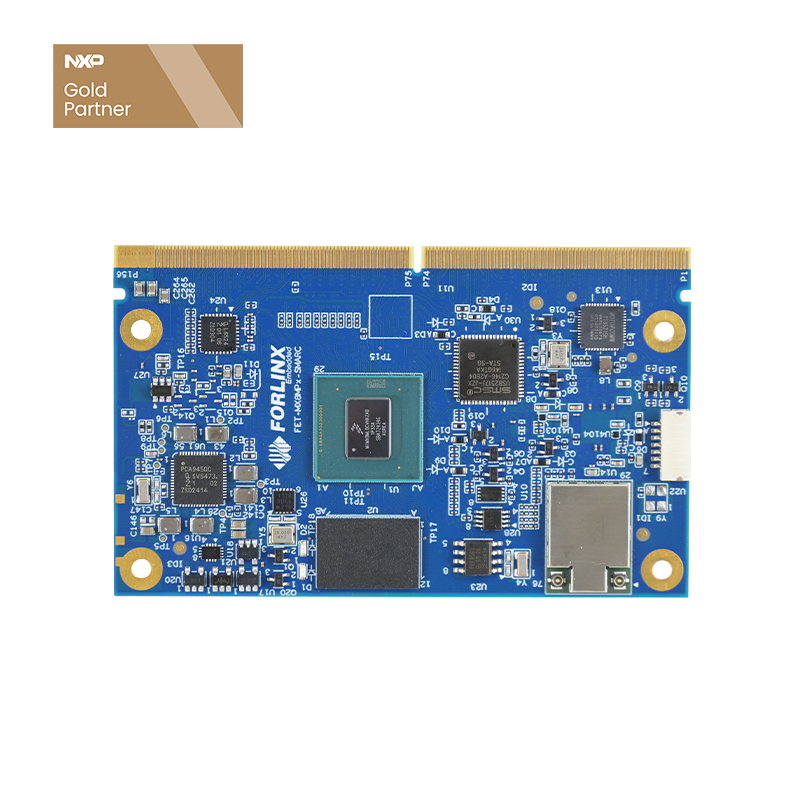

FET-MX8MPQ-SMARC SoM
High-speed Communication Interface
4K Picture Quality and HiFi Voice Experience
HDMI interface supports up to 4K display output; it also features LVDS, MIPI-DSI display interface, the latest audio technology,
Cadence® Tensilica® HiFi 4 DSP @ 800 MHz, 18x I2S TDM, DSD512, S/PDIF Tx + Rx, 8-channel PDM microphone input, eARC, ASRC.
Advanced Multimedia Technology
3D/2D Graphic Acceleration
Machine Learning and Vision
Built-in NPU with 2.3 TOPS of AI computing power to meet lightweight edge computing needs
Dual Image Signal Processor (ISP)
Product Application
▊ Hardware Features
|
FET-MX8MPQ-SMARC System on Module Basic Features |
|
|---|---|
|
CPU |
NXP i.MX 8M Plus |
|
Architecture |
4x [email protected] + 1x Cortex-M7 |
|
RAM |
2GB/4GB LPDDR4 |
|
ROM |
16GB/32GB eMMC |
| Supply Voltage | DC 5V |
|
Operating temp |
-40℃~+85℃ |
|
Connection |
SMARC2.1, MXM3 Edge Connector(314 pins, 0.5mm pitch) |
|
OS version |
Linux 6.1.36 |
|
Dimension |
82mm x 50mm |
|
FET-MX8MPQ-SMARC System on Module Functional Parameters |
||
|---|---|---|
|
Peripheral |
NUM |
Spec. |
|
USB 3.0 |
2 |
Contains 2 USB3.0/ 2.0 controllers integrated with PHY |
|
USB 2.0 |
5 |
Highspeed (HS), Full-speed (FS), and Low-speed (LS) |
|
MIPI CSI |
2 |
2x 4-lane MIPI-CSI, up to 1.5 Gbps |
|
MIPI DSI |
1 |
1x 4-lane MIPI-DSI, up to 1.5 Gbps 1080 p60 • WUXGA (1920x1200) at 60 Hz 1920x1440 at 60 Hz UWHD (2560x1080) at 60 Hz WQHD (2560x1440) by reduced blanking mode |
|
LVDS |
2 |
Up to 1920x1080p60 |
|
HDMI |
1 |
Up to 4kp30 |
|
Ethernet |
2 |
EMAC, 10/100/1000 Mbps, 1 is capable of TSN |
|
PCIE x1 |
1 |
PCI Express Gen 3 |
|
CAN-FD |
2 |
Complies with CAN 2.0B, ISO 11898-1 |
|
SDIO |
1 |
SDIO 3.0 |
|
I2S |
2 |
SAI, supports I2S, AC97, tdM and codec/DSP |
|
SPI |
2 |
Up to 52Mbit/s，master and slave are configurable |
|
I2C |
5 |
Up to 320kbps |
|
UART |
4 |
Up to 4Mbps |
|
PWM |
3 |
16-bit timer |
|
GPIO |
>14 |
General-purpose input/output (GPIO) modules with interrupt capability |
|
WIFI & BT |
1 |
WiFi 5 MIMO, Bluetooth 5.3, connected to processor by SDIO3.0 and UART |
|
JTAG |
1 |
IEEE 1149.1 testability (JTAG) |
▊ Carrier Board
OK-MX8MPQ-SMARC Development Board
To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
The OK-MX8MPQ-SMARC Single Board Computer from Forlinx is powered by the NXP i.MX 8M Plus processor, which features 4x [email protected] + 1x Cortex-M7, 2GB/4GB LPDDR4 RAM, and 16GB/32GB eMMC ROM. With a split design and 314 pins, it offers seamless functionality and easy customization, and supports the Linux 6.1.36 system. With an open system architecture design, it can provide technical information for your secondary development.
