OK7110-C Single Board Computer Based on RISC-V JH7110
OK7110-C RISC-V Single Board Computer(SBC) adopts a “carrier board + SoM” structural design. The SoM adopts FET7110-C of the JH7110 processor, which is designed and developed by StarFive Technology. OK7110-C development board adopts the open-source RISC-V architecture, with a frequency of 1.5GHz, and integrates the quad-core RISC-V architecture.
The JH7110 RISC-V chip has been mass-produced, featuring high performance, multi-function, and low power consumption, providing powerful GPU processing capability, supporting multi-video coding and decoding, and supporting 2xPCIe 2.0, 2xGigabit Ethernet and 2xCAN 2.0. The SoM supports Linux 5.15.0 operating system, which is suitable for the development of industrial vision-related applications.
Introducing the OK7110-C RISC-V Single Board Computer(SBC)/Development Board - Your gateway to enhanced connectivity and innovation. With versatile peripheral interfaces including HDMI, MIPI-DSI, camera, Ethernet, USB3.0, PCIe2.0, UART, RS485, CAN2.0, SPI, audio, TF card slot, 4G/5G, and more, this board empowers you to unleash the full potential of your projects. Experience seamless integration, high-speed data transfer, and reliable communication, all in one compact and powerful development board.

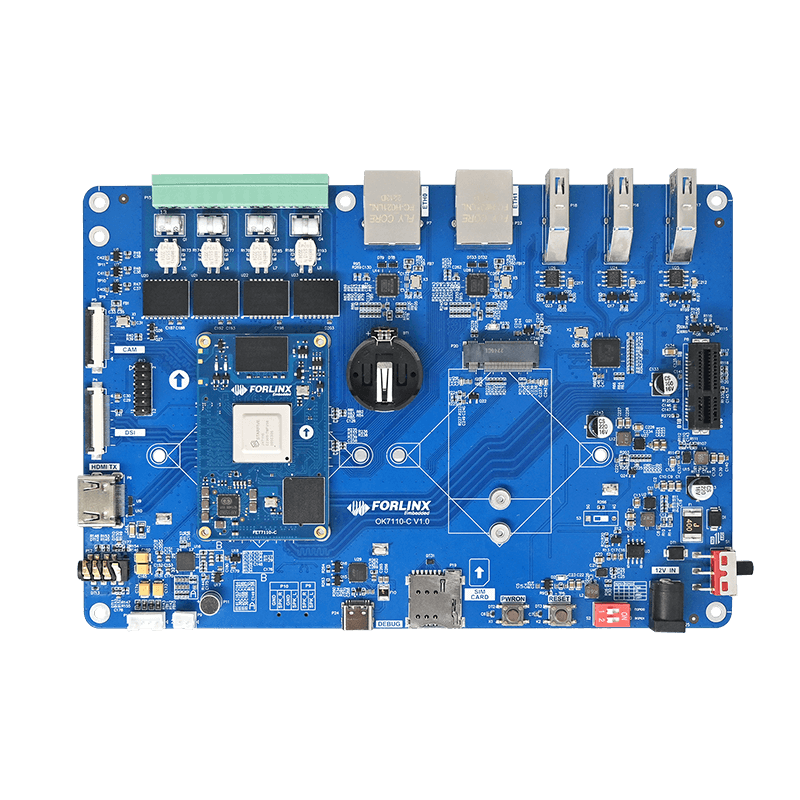

OK7110-C SBC
Equipped with High-performance RISC-V Processor JH7110
JH7110 is a high-performance RISC-V SoC launched by StarFive Technology, which has been mass-produced in 2022 and is built for the embedded industry.
It features efficient computing, high-speed connectivity, and visual processing capabilities, meeting the requirements of industrial scenarios.
High-performance Quad-core 1.5 GHz MPU
JH7110 is equipped with a 64-bit high-performance quad-core RISC-V processor core.
The stable operating frequency of the CPU is 1.5 GHz, the CoreMark score is 5.09 CoreMark/MHz, and the performance is better than Cortex-A55.
Powerful GPU Rendering Capabilities
JH7110 GPU uses IMG BXE-4-32 MC1 architecture to provide strong processing power.
It operates at a frequency of 600MHz and supports mainstream APIs such as OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2.
It provides sufficient computing power support for computer vision, in-depth learning, graphics rendering, and other applications.
Dynamic Power Control Matching Different Application Scenarios
JH7110 is divided into 8 independently switchable power domains. The CPU frequency can be adjusted via software, allowing customers to dynamically adjust the frequency
based on application scenarios and achieve power consumption control.
Outstanding Multimedia Processing Capabilities
JH7110 provides MIPI-CSI and
DVP camera access modes, supports ISP, and supports up to 4K @ 60fps video decoding and 1080p @ 30fps video encoding.
It supports HDMI (4K @ 30fps), RGB (1080p @ 30fps) and MIPI-DSI (2K @ 30fps) display output interfaces, and can also realize dual-screen display.
Rich Interfaces for Wider Applications
Wide Range of Application Scenarios
▊ RISC-V Single Board Computer Video
Forlinx Launched RISC-V SoM/SBC based on StarFive JH7110
▊ Hardware Features
|
FET7110-C SoM Features |
|
|---|---|
|
CPU |
StarFive JH7110 CPU: 4 x RISC-V @1.5GHz GPU:
• IMG BXE-4-32 MC1@600MHz VPU:
•Video Decoding: H.265/H.264,4K@60fps or 1080p@30fps |
|
RAM |
2/4GB LPDDR4 |
|
ROM |
32GB eMMC |
| Voltage input | DC 5V |
|
Operating temperature width |
0~ +80℃ |
|
OS version |
Linux 5.15.0 |
|
Dimensions |
38mm x 60mm |
|
Packaging |
Board to board connector(3*80-pin, 0.5mm pitch) |
|
FET7110-C SoM Functional Parameters |
||
|---|---|---|
|
JH7110 |
QTY |
Spec. |
|
HDMI |
1 |
HDMI2.0, up to 4K@30fps |
|
MIPI-DSI |
1 |
4-lane MIPI DSI, up to 2K@30fps |
|
MIPI-CSI |
1 |
4-lane, works with 1-lane/ 2-lane/ 3-lane/ 4-lane, each lane up to 2.5Gbps |
|
DVP |
1 |
12-bit |
| Audio | 1 |
8-lane I2S PCM/ TDM Supports MIC and phone, one is for headphone, and the other is for 1W 8Ω mono speaker |
| SDIO | 1 | For TF card |
| Ethernet | 2 | GMAC, available for RMII/RGMII 10/100/1000 Mbps |
| PCIe2.0 | 1 |
PCIe2.0x1, 2 PCIe2.0 controllers integrated with PHY |
| USB2.0 |
1 |
Master/ slave mode, supports both HS mode and FS mode |
| USB3.0 | 1 |
Multiplexed with PCIe2.0 |
| UART | ≤6 |
Maybe multiplexed with GPIO |
| CAN2.0B | 2 |
2 CAN2.0B interfaces Support for CAN2.0B protocol with data rates of up to 1Mbps Support for CAN FD protocol with data rates of up to 3.7Mbps |
|
SPI |
≤7 |
Maybe multiplexed with GPIO |
|
IIC |
≤7 |
Maybe multiplexed with GPIO |
|
PWM |
≤8 |
Maybe multiplexed with GPIO |
|
GPIO |
≤64 |
Maximum |
▊ OK7110-C Carrier Board
|
|
| OK7110-C Carrier Board Features | |||
|---|---|---|---|
|
Peripheral interfaces |
QTY |
Spec. |
|
|
HDMI |
1 |
up to 1080p@30fps |
|
|
MIPI-DSI |
1 |
4-lane MIPI DSI, fits with Forlinx 7’’ MIPI-DSI module with resolution of 1024×600 |
|
|
Camera |
1 |
One FPC is available on carrier board for 1x 4-lane MIPI-CSI , supports Forlinx 5.0MP MIPI-CSI module OV5645 |
|
|
Ethernet |
2 |
RJ45, 10/100/1000Mbps adaptive |
|
|
USB3.0 |
1 |
3x USB3.0-A from USB_HUB |
|
|
PCIe2.0 |
1 |
1x PCIe2.0x1 lane slot is available on carrier board |
|
|
UART |
1 |
Pin headers |
|
|
UART for debug |
1 |
1x debug converted to USB, it is available on carrier board by Type-C |
|
|
RS485 |
2 |
isolated |
|
|
CAN2.0 |
2 |
isolated |
|
|
SPI |
1 |
Pin headers with pitch of 2.54mm |
|
|
Audio |
1 |
Input: 1x MIC, 3.5mm jack; Output: 1x Phone, 1x mono speaker(1W 8Ω) |
|
| TF card slot |
1 |
USH-I, up to 104MB/s |
|
|
4G/ 5G |
1 |
Alternative 4G: M.2 Key B slot, recommended model EM05, EC20/ EC25 5G: M.2 Key B slot, recommended model RM500U-CN, RM500Q-GL Micro-SIM card slot |
|
|
KEY |
2 |
1x power on/ off, 1x reset |
|
|
RTC |
1 |
Onboard independent RTC chip, which can record time through button battery after the mainboard power-off. |
|
▊ Downloads
Catalog:
Forlinx Catalog Manual
Datasheet:
FET7110-C SoM and OK7110-C SBC introduction
|
Linux5.15 Materials List |
User manual, compiling guideline, GIT source, 3P tool and lib, reference files from StarFive, kernel source code, file system, OS image, VM ubuntu image, SD card making tool |
| Hardware Materials List | User manual, carrier board schematic, carrier board PCB(AD), datasheet, carrier board and SoM DXF files, pinmux sheet |
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.
