FCU2201 Embedded Computer: 5G/4G/WiFi Gateway for Industrial Edge Computing
The FCU2201 cost-effective 5G industrial gateway is designed for industrial data acquisition and processing applications. It supports 5G, 4G, Ethernet, dual-band Wi-Fi, RS485, RS232 and other functions and interfaces. It can be used for uplink network access and connection of downlink sensors and other devices; it adopts ARM Cortex-A53 architecture processor with a main frequency up to 1GHz, can meet the performance requirements of local data processing, edge computing, etc.; supports card-rail type and ear-mounted fixation methods, making installation more flexible; adopt industrial-grade fanless design, which can meet the EMC anti-interference requirements of industrial scenes, and can maintain stable operation for a long time under ambient temperatures of -40℃ to +80℃.
It is an embedded computer product suitable for industrial applications such as the industrial Internet of Things, smart cities, smart environmental protection, smart factories, smart power, smart water, smart agriculture, and security monitoring.
Multiple wireless communications, multiple networking options
FCU2201 can choose to install 5G and 4G communication modules, and can also support dual-band WiFi, which is convenient to adapt to different networking requirements.
Fanless design, more reliable operation
The industrial-grade fanless design reduces the points of failure and can operate reliably for a long time at an ambient temperature of -40°C to +80°C.

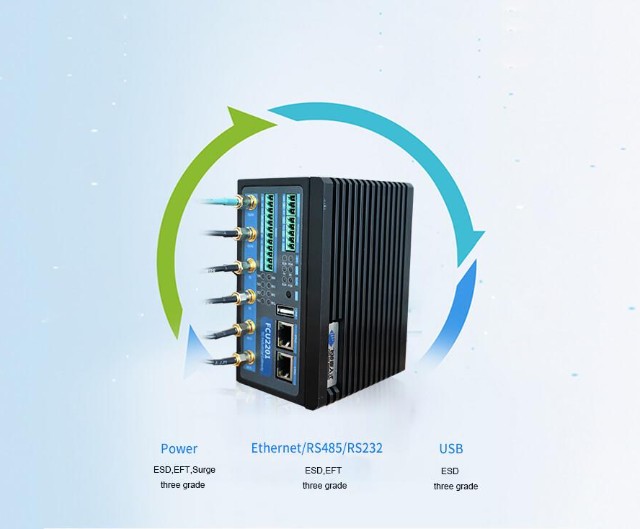

EMC protection design, enhanced anti-interference
The Power, Ethernet, RS485, and RS232 interfaces have three-level ESD and EFT protection capabilities, and the power interface interface also has three-level surge protection capabilities.
Multiple operating systems, more flexible development
FCU2201 supports two operating systems, Ubuntu 18.04 and OpenWrt, and users can choose flexibly according to development needs;
shorten the development cycle and reduce the difficulty of development.

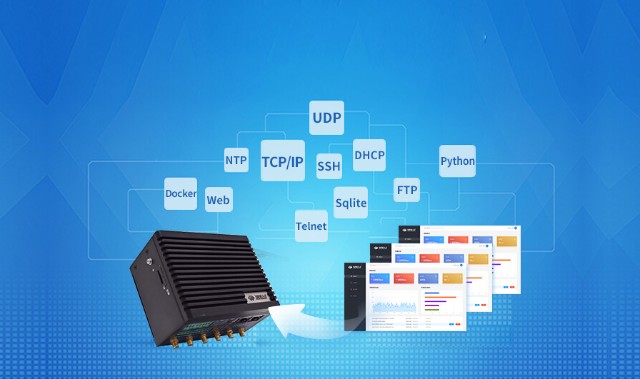

Multi-protocol support, reducing the difficulty of secondary development
Support TCP/IP, UDP, NTP, DHCP, SSH, Telnet, Web, FTP, Docker, Python, Sqlite and other protocols and components,
and support the installation of other third-party protocol libraries, components, and applications; minimize the number of users Development difficulty

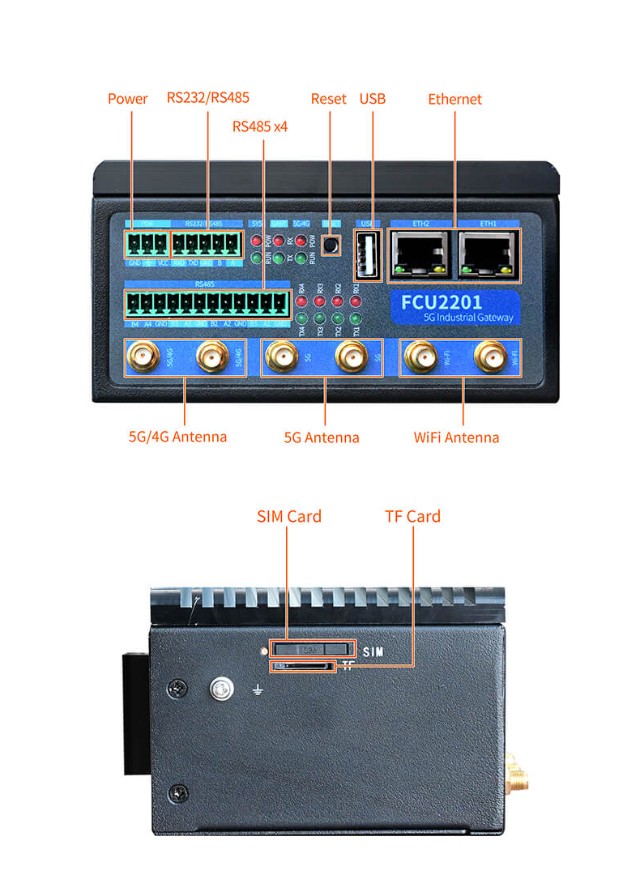

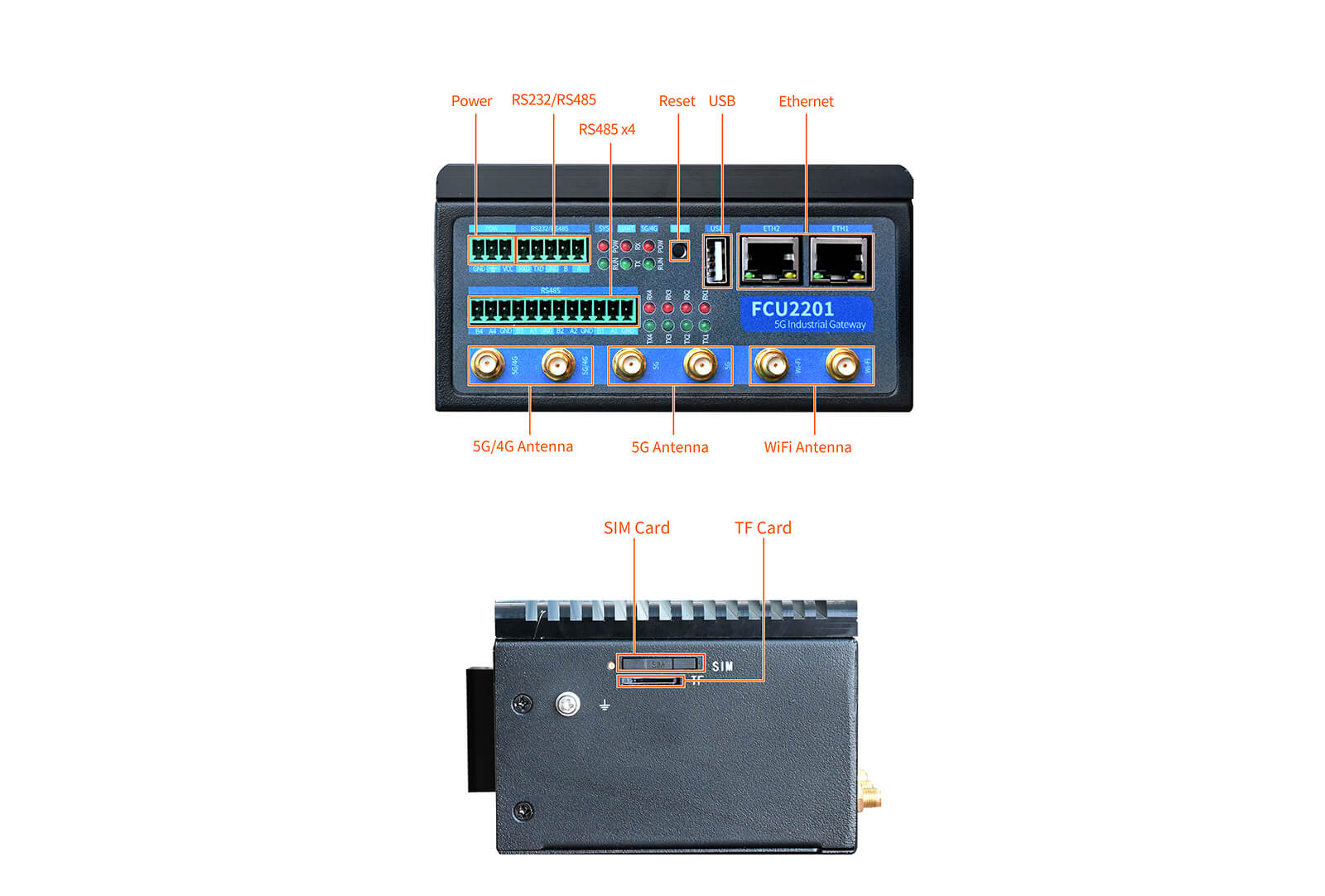

Product Interface Diagram

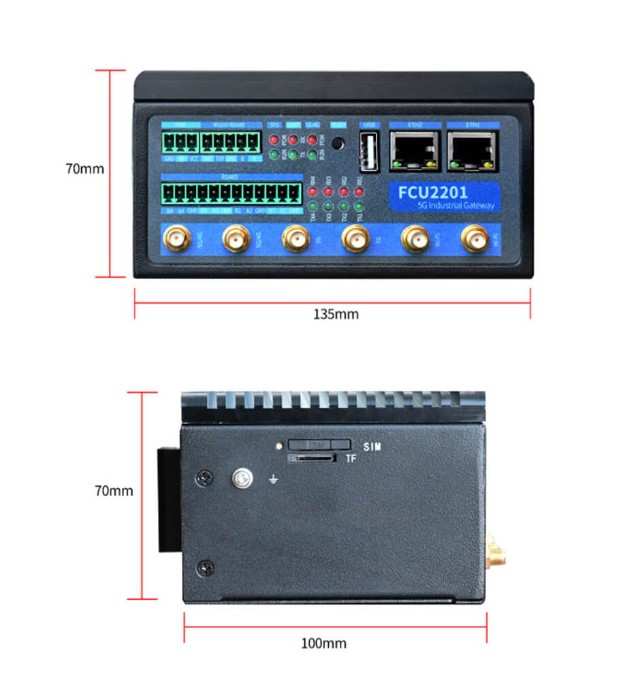

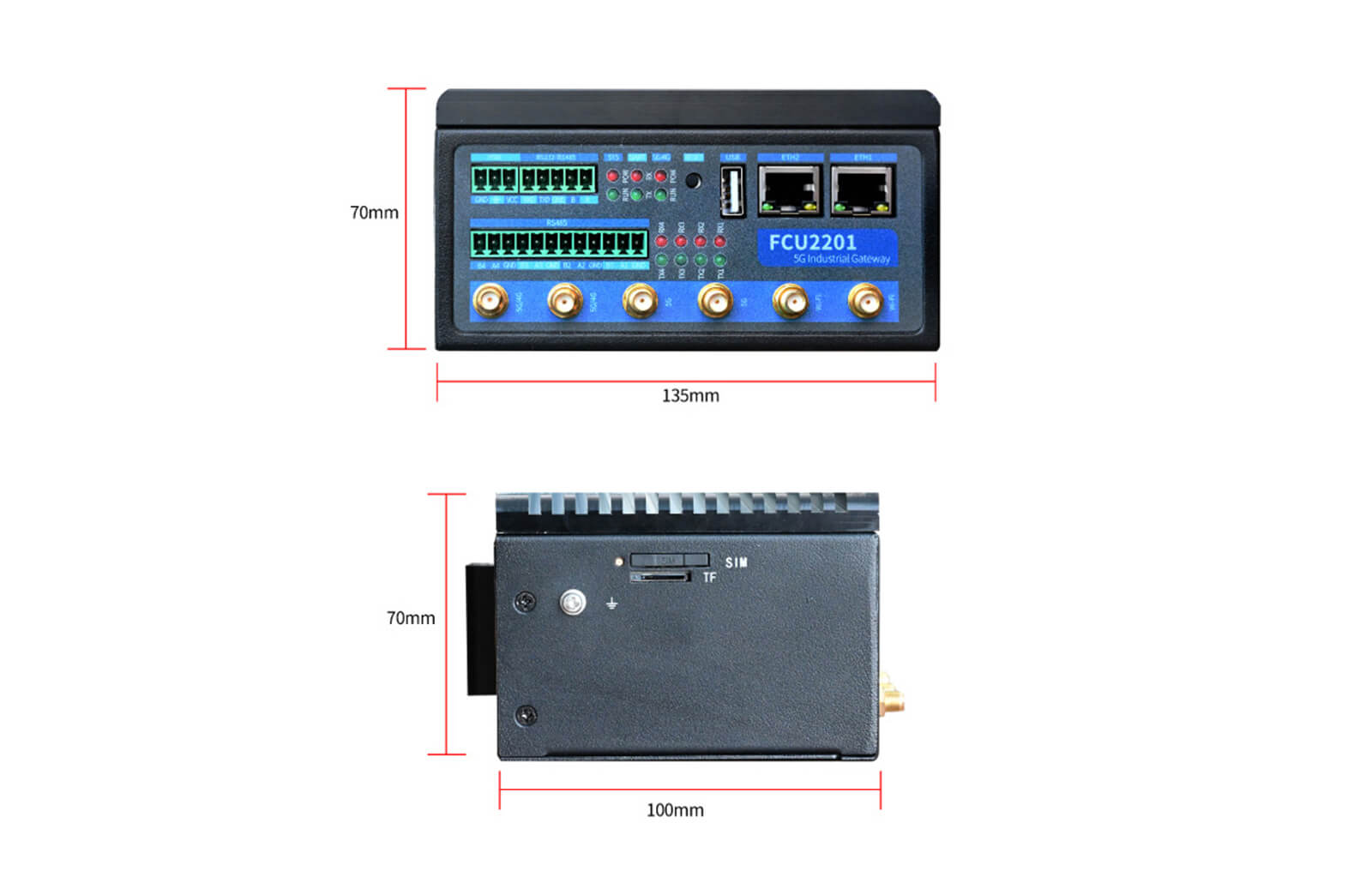

Product Size Chart

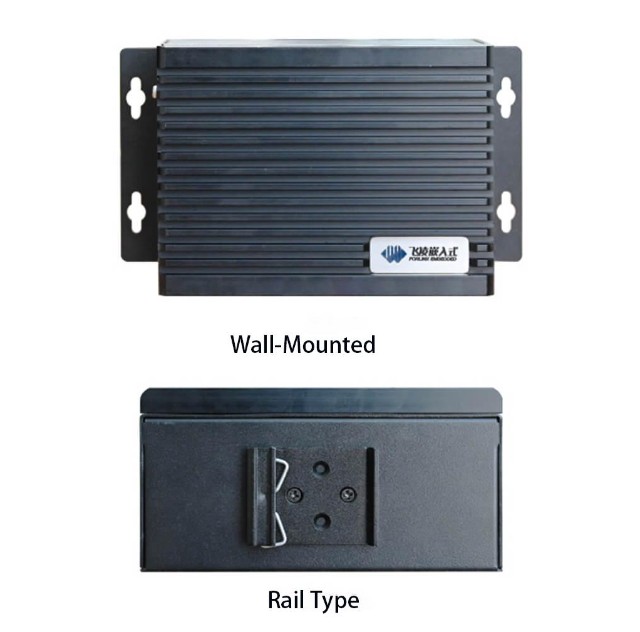

Product Installation Drawing
▊ Basic Parameters
| Architecture | ARM Cortex-A53 |
| Main Frequency | 1GHz |
| RAM | 512MB |
| ROM | 8GB |
| Extended Storage | TF Card Slot |
| Operating System | Ubuntu18.04, OpenWrt optional |
| Working Temperature | -40℃~+80℃ |
| Dimensions | 135x100x70mm |
▊ Interface Parameters
| 5G/4G | can be equipped with 5G or 4G modules; or without communication modules. |
| Ethernet | 2 RJ45, 10M/100M/1000Mbps adaptive EMS: ESD, EFT, Level 3 |
| Wi-Fi | dual-band WiFi, 802.11 b/g/n/ac; can be used as STA or AP, and only 2.4GHz is supported in AP mode. |
| RS485 | 5 channels, EMS: ESD, EFT, Level 3 |
| RS232 | 1 channel, multiplexed with RS485, EMS: ESD, EFT, Level 3 |
| USB | 1 way, USB2.0, can be connected to U disk for expansion storage or update operating system. |
| TF | 1 way, used for expansion storage. |
| RTC | Support |
| LED | power supply, running status, 4G/5G networking status, RS485 |
| Button | operating system reset |
▊ 5G Support Frequency Band (*Remarks: 5G:RM500U-CN,RM500Q-GL, please choose a local compatible model with proper band width supports)
| Standard | Frequency Band |
| 5G NR NSA | n41/n78/n79 |
| 5G NR SA | n1/n28/n41/n77/n78/n79 |
| LTE-FDD | B1/B2/B3/B5/B7/B8/B20/B28 |
| LTE-tdD | B34/B38/B39/B40/B41 |
| WCDMA | B1/B2/B5/B8 |
▊ 4G Support Frequency Band (*Remarks: tested model: 4G EM05-CN, please choose a local compatible model with proper band width supports)
| Standard | Frequency Band |
| LTE-FDD | B1/B3/B5/B8 |
| LTE-tdD | B38/B39/B40/B41 |
| WCDMA | B1/B8 |
| EVDO/CDMA | BC0 |
▊ OS
| OS | Version |
| Ubuntu | 18.04 |
| OpenWrt | 21.02 |
▊ Power Parameters
| Input Voltage | 9~36V DC |
| Power Consumption |
WiFi+5G (startup state): 0.68A/12V (peak state) WiFi+5G (steady state): 0.51A/12V (steady state) Dual Gigabit WiFi+5G: 0.56A/12V (5G PING, Gigabit Network PING each other) Dual Gigabit WiFi+4G: 0.52A/12V (4G PING, Gigabit PING each other) |
| Protection | Anti-reverse connection protection; EMC: ESD, EFT, Surge, Level 3 |
▊ Working Environment
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 5% to 95% (non-condensing) |
▊ Mechanical Properties
| Shell | Metal |
| Installation | Rail-mounted installation, wall-mounted installation (optional kit) |
▊ Download
Catalog:
Forlinx Catalog Manual
Product Brief:
FCU2201 Embedded Computer Introduction
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
2. Fast response after-sale technical support service
Contact Us
Welcome to get in touch with us, our experts will reply to your email within 24 hours.
▊ How To Buy
1. Order Online
We have an online store on Alibaba, please contact us for details.
2. Order Offline
Please send your inquiry to [email protected];
3. Payment Terms
100% T/T in advance.
▊ Shipment
1. Delivery: Goods will be shipped by express upon the receipt of the payment;
2. Lead time: Goods will be shipped out within five working days for sample orders and 6 weeks for bulk orders;
3. Shipping charge: Buyers should bear the shipping cost.
