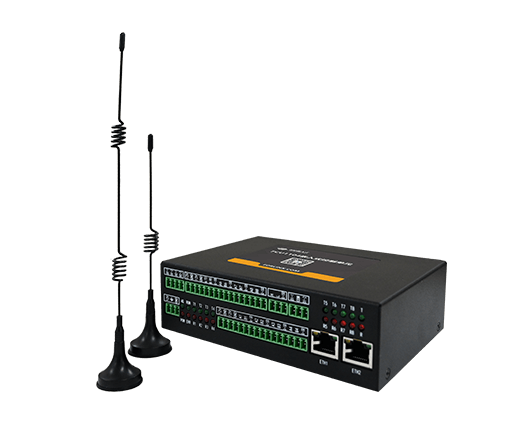

FCU1104 Embedded Computer
FCU1104 embedded computer is designed based on NXP i.MX6ULL SoC(Cortex-A7) with advantages of cost efficient, advanced performance and high stability. It runs at speed of 792MHz, carries RAM 256MB and NandFlash 256MB(RAM 512MB, eMMC 4GB optional) on-board. Supported with OS Linux 4.1.15 complies various network protocols. It integrated with RS485/RS232, Ethernet, 4G and WiFi all in one, which make it very convenient for development.
FCU1104 Embedded Computer Features
- Industrial designing, can work stably in rough industrial environment: -40℃~+85℃;
- Various wireless communication solutions: WIFI, 4G;
- Large set of peripherals: RS485/RS232, Ethernet, DI/DO, CAN;
- OS: Linux4.1.15;
- Multiple network protocols;
- Strict peripheral protecting solution;
- Low power consumption, super capacitor solution for data backup in case of power failure.
FCU1104 Embedded Computer
Industrial grade components and rugged sheet material case; 9~ 36V input; anti-reverse and over-current designing protection solution
Super capacitor for power failure solution
When power supply is interrupted unexpectedly, it will switch to super capacitor supplying mode, and generate interrupt indicator to deal with unexpect power failure for data backup
Large set of peripherals for data collection
LED and buzzer for device status monitor, basic version and upgrade version optional. The device designed with

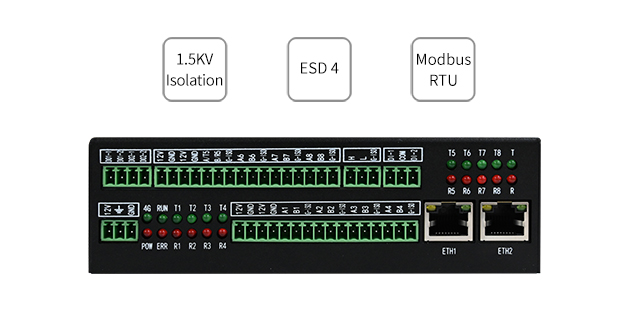

dual Ethernet , and 8 RS485/ RS232 by terminals for data transmission;
2 dry contact for DI and 2 relay for DO for front end device status monitoring; 1 CAN and other wired peripherals for various communication purpose
Multiple Network Protocol Supporting
4G/WIFI
4G and WiFi are optional and alternative to avoid redundancy. 4G default mode Cat.1 and compatible
with Cat.4 available for both general SIM card and IoT card. Complies with IEEE802.11b/g/n, supports both STA and AP in WPA2 encryption mode
RS485
Supports Modbus(RTU mode)

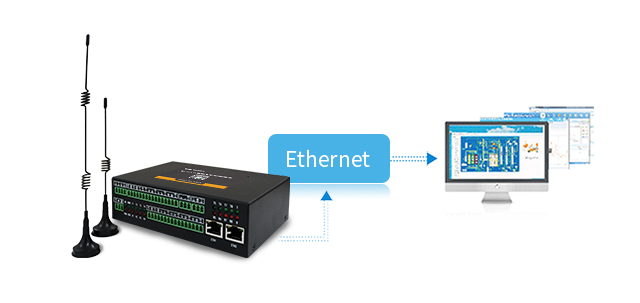

Ethernet
10M/100M auto-negotiable, supports both static and dynamic assigned IP, and also MAC address settings
Optimized Linux system with practical network protocols
Optimized Linux4.1.15 integrated with multiple network protocols for various peripherals connection and access;
TCP/IP, UDP, DHCP, TFTP, FTP, Telnet, SSH, Web, HTTP, IPtables, MQTT, SQLite, convenient for remote debug and maintenance
▊ Hardware Features
|
Item |
Spec. |
|
CPU |
NXP i.MX6ULL ARM Cortex-A7 792MHz |
|
RAM |
DDR3 256MB(Nand), DDR3 512MB(eMMC) |
|
ROM |
NAND Flash 256MB(Nand), eMMC 8G(eMMC) |
|
Ethernet |
2, 10/100Mbps, ESD3 |
|
RS485 |
upgraded version: 8* RS485, 1.5KV isolation, ESD4 (one is multiplexed with RS232); basic version: 4 |
|
DI |
upgraded version: 2, dry contact input, isolation; basic version: none |
|
DO |
upgraded version: 2, relay output, contact point capacity 5A 250VAC, 5A 30VDC basic version: none |
|
CAN |
1, 1.5KV isolation, ESD4 |
|
Buzzer |
1 |
|
Reset key |
1 |
|
Boot key |
1, used together with reset key for firmware updating |
|
4G |
Model: Quectel EC200S(can not support GPS and audio) Network: 4G/3G/2G |
|
WiFi |
can support both STA and AP(note: alternative with 4G wireless module) |
|
TF Card |
tested up to 32GB |
|
RTC |
NTP supported |
|
Power IN |
main power input DC 12V, can support DC9V~24V input designed with anti-revese and over-current protecting solutions |
|
Working environment |
RH: 5％～95％, none-condensing Working: -25℃～85℃(eMMC version); -40℃～85℃ (NAND version), (note: WiFi working temp width: 0℃～70℃) Storage: -40℃～85℃ |
|
Dimensions |
150x110x45mm |
▊ Software Features
|
Source |
Spec. |
|
OS |
Linux-4.1.15 |
|
File system |
Yaffs2 |
|
GCC |
5.4.3 |
|
RS485 |
provided with testing demo, can support Modbus RTU |
|
Network protocol |
TCP/IP, UDP, DHCP, TFTP, FTP, SSH, Web, HTTP, IPtables, MQTT, SQLite |
|
Ethernet |
10M/100M auto-negociation, can support static/ dynamic IP and MAC settings |
|
WiFi |
STA and AP are both supported |
|
4G network |
EC200S |
|
RTC |
NTP supported |
|
Watchdog |
reset time setting |
▊ Packing List
|
Basic Version |
|
|
Item |
QTY |
|
FCU1104 basic version |
1 set |
|
Accessory pack |
power adapter |
|
Upgrading Version |
|
|
Item |
QTY |
|
FCU1104 upgrading version |
1 set |
|
Accessory pack |
power adapter |
|
Optional Modules |
|
|
Item |
QTY |
|
4G wireless module |
1(4G and WiFi are alternative) |
|
WiFi module |
1(WiFI and 4G are alternative) |
|
Clip |
1 |
|
Expanding board |
1 |
▊ Download
Catalog:
Forlinx Catalog Manual
Product Brief:
FCU1104 Embedded Computer Introduction
▊ Accessories
Please click here to get more information about the supported modules and accessories.
▊ Technical Support
1. Files to be provided after buying
Hardware related: datasheet, user guide, carrier board schematic, carrier board PCB, SoM pinmux;
Firmware related: OS image, testing demo, source code, manual;
Compiling environment
