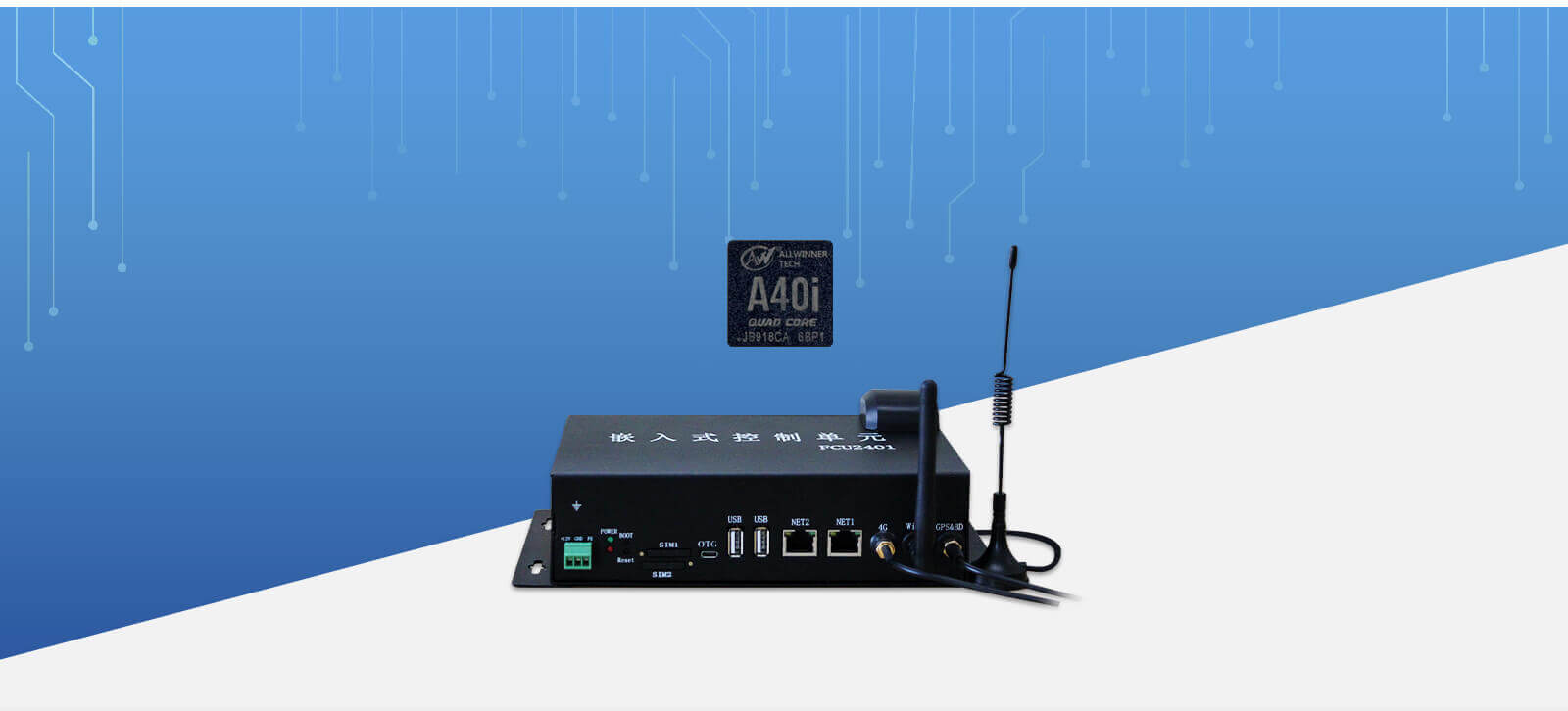

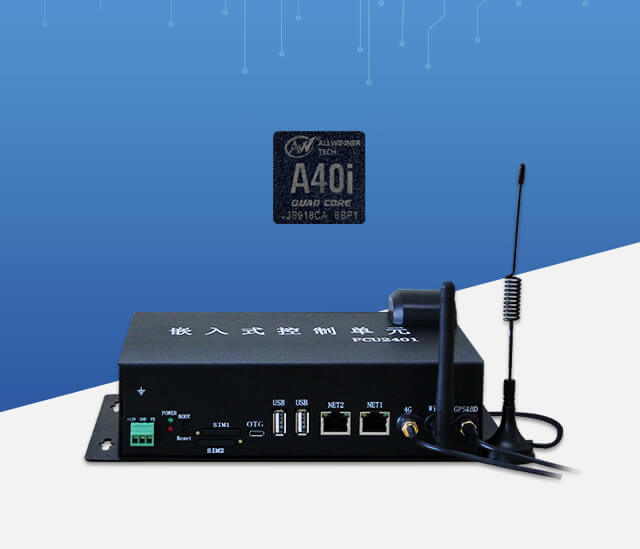

FCU2401 Embedded Computer Based on Allwinner Quad-core A40i
The FCU2401 embedded computer is designed based on the Allwinner Cortex-A7, featuring a quad-core processor A40i @1.2GHz. It integrates with MAli400MP2 GPU, 1GB RAM (upgradable to 2GB), and 8GB eMMC. It has a variety of peripheral interfaces, such as RS485, CAN, ESAM, USB, Ethernet, 4G, WiFi, GPS, LVDS, HDMI, DI, DO, audio, and SATA. All communication interfaces are designed with isolation protection solutions and tested by ESD4. It can support dual-screen playing and is applicable for edge computing, EV chargers, express cabinets, advertising machines, vending machines, and other self-service devices.
A40i Embedded Computer Product features:
- Can support HDMI and LVDS display out, can be used together;
- Supports two analog camera input, applicable for video monitoring and image analyzing;
- Has two isolated Ethernet ports;
- Has two isolated RS485;
- Has two RS232, one is debug port and the other is a general RS232 isolated;
- Two isolated CAN;
- 4x DI, dry contact input, optocoupler isolation;
- 4x DO, relay output, contact point 5A 250VAC, 5A 30VDC;
- Complies with ISO7816 protocol;
- 2x USB HOST;
- WIFI available for both STA and AP;
- Can support 4G wireless network (optional module);
- SATA: can support a 2.5'' portable hard disk;
- Has 1 speaker channel;
- Can support GPS/Beidou;
- Built-in super capacitor for power failure solution, the capacitor can support system running for 15 seconds(with 7'' display) to avoid data loss;
- DC 12V power adapter, with anti-reverse protect solution
Industrial grade quad-core processor, advanced performance, low power and high reliability
Applicable for 3D graphical and advanced video processing, various communication interfaces, excellent quality, power efficient and high-integrity.
Multiple wired communication interface

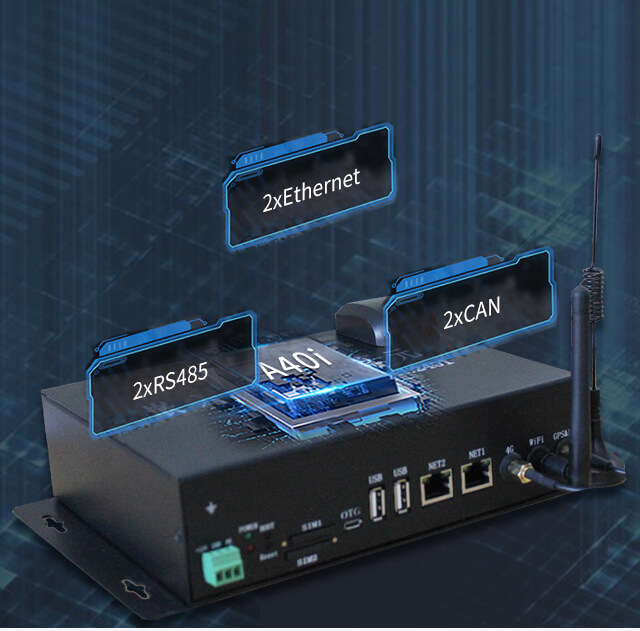

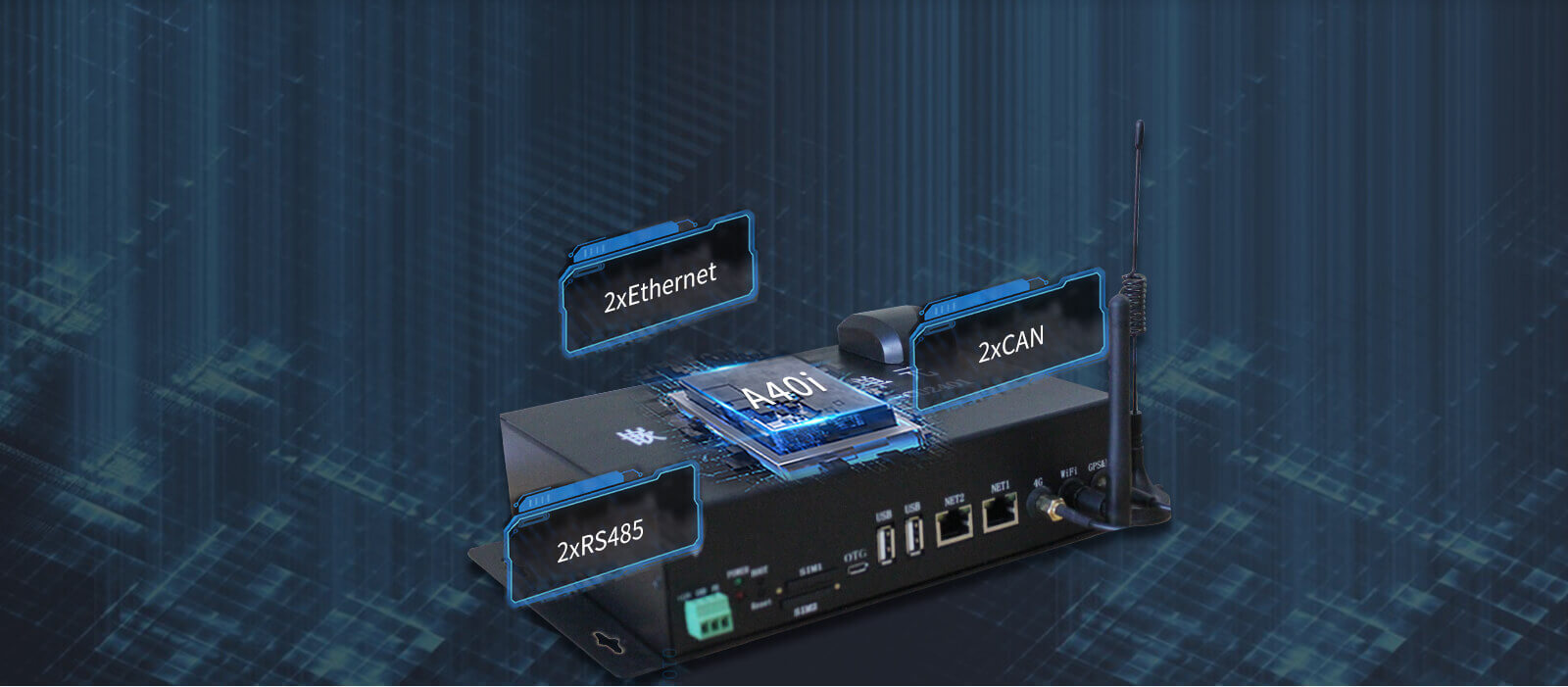

Dual-Ethernet, dual-CAN, dual-RS485, practicable for power management, EV charger and car electronics gateway and other applications

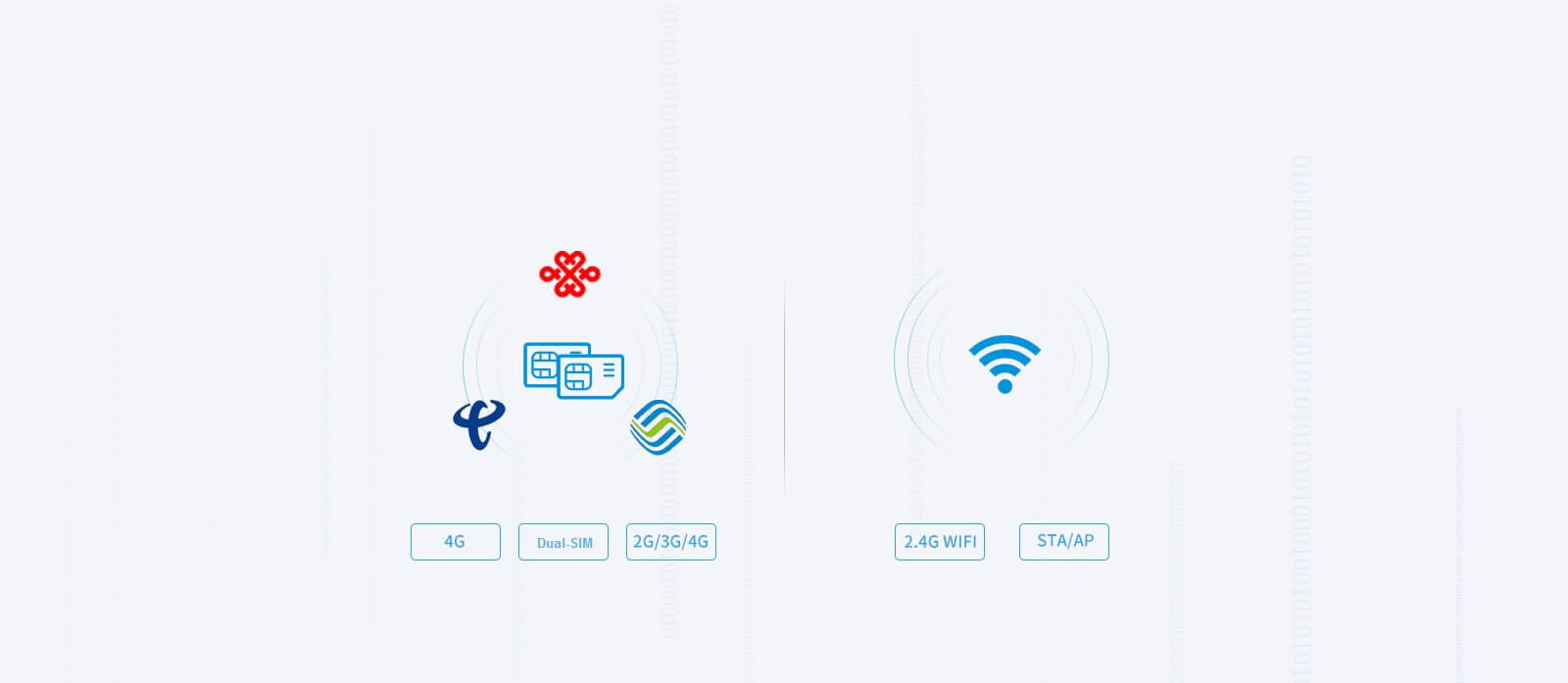

4G wireless module and 2.4G Wi-Fi both supported
All netcom supported, Wi-Fi available for both STA and AP, can expand AP by 4G
Beidou&GPS positioning
Can support A-GNSS, can support BD2 B1 together with GPS L1

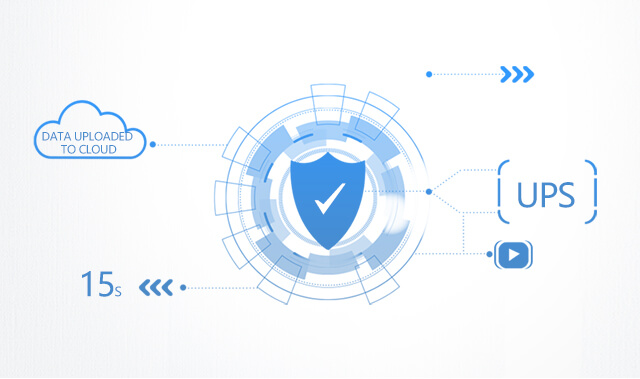

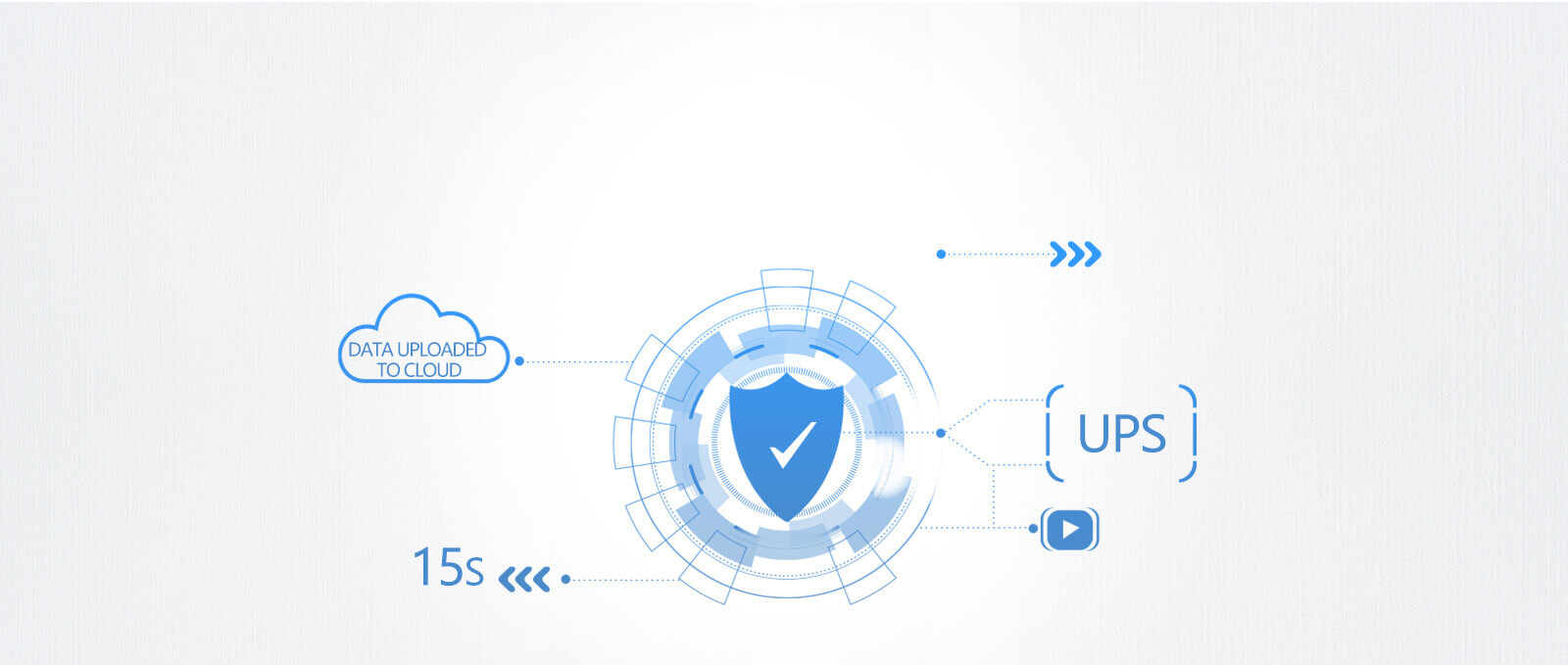

Power failure solution to avoid data loss
Super capacitor can support system running for 15s once CPU detects external power failure
Dual-screen displaying, stereo audio, analog monitoring
Can support HDMI and LVDS, up to 1080P，dual analog cameras input,
can be used for video monitoring and image analyzing, external standard 3.5mm stereo headphone seat, can support a 4Ω 1w speaker
Industrial grade, isolated communication peripheral interface

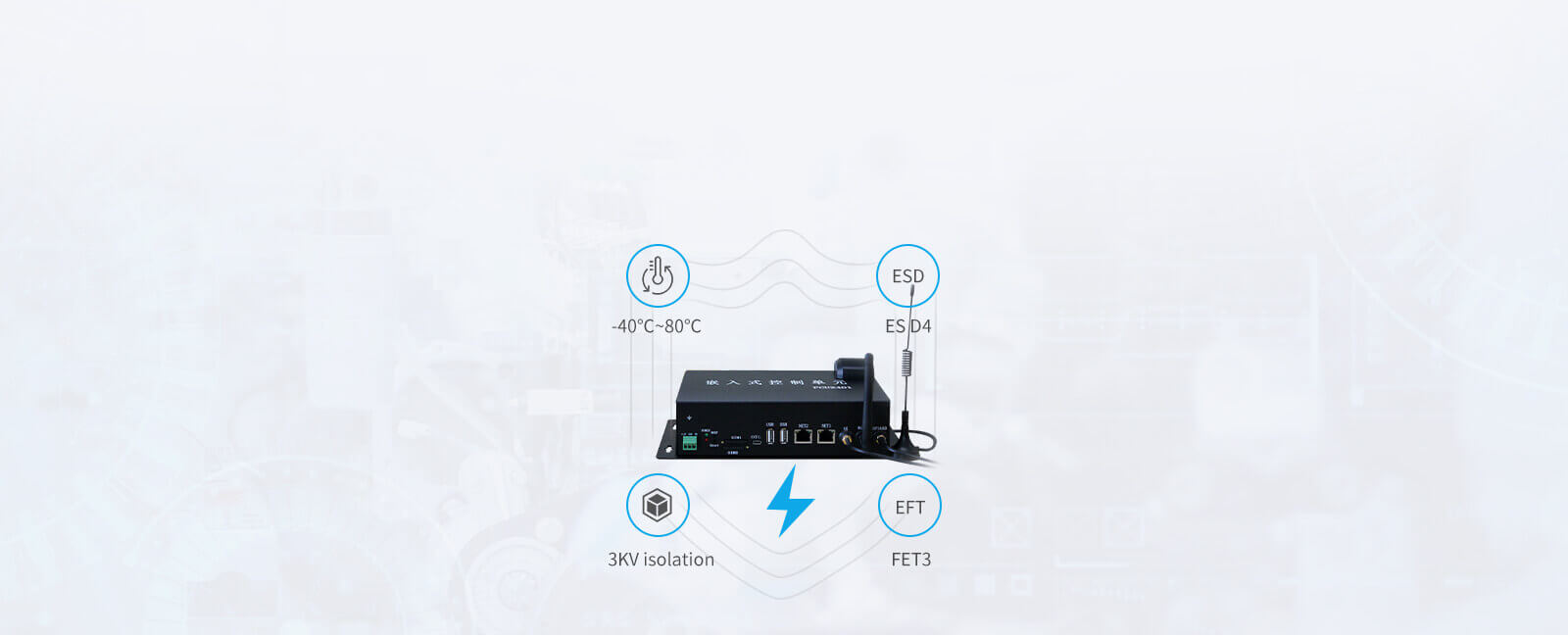

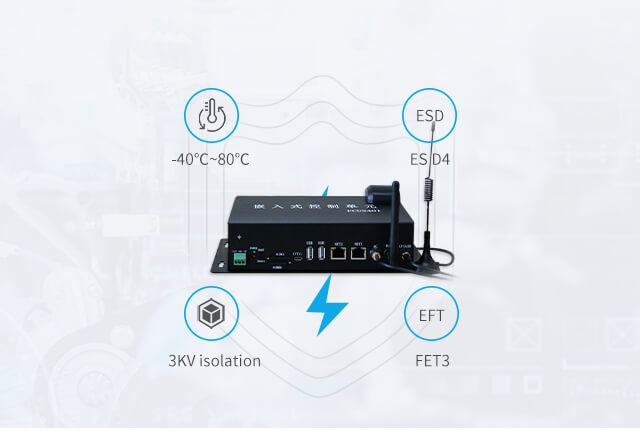

The device can work stably in -40℃~+80℃, communication interface tested by ESD4,
EFT3, make the device can bear tough envrionment
Compact outline, easy for installation

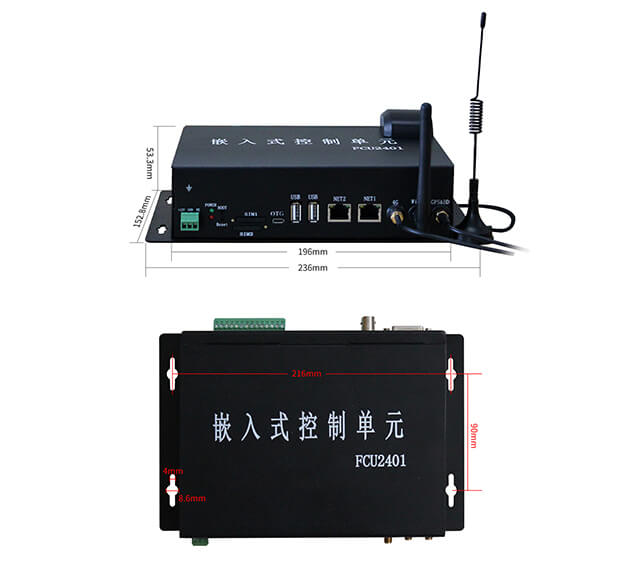

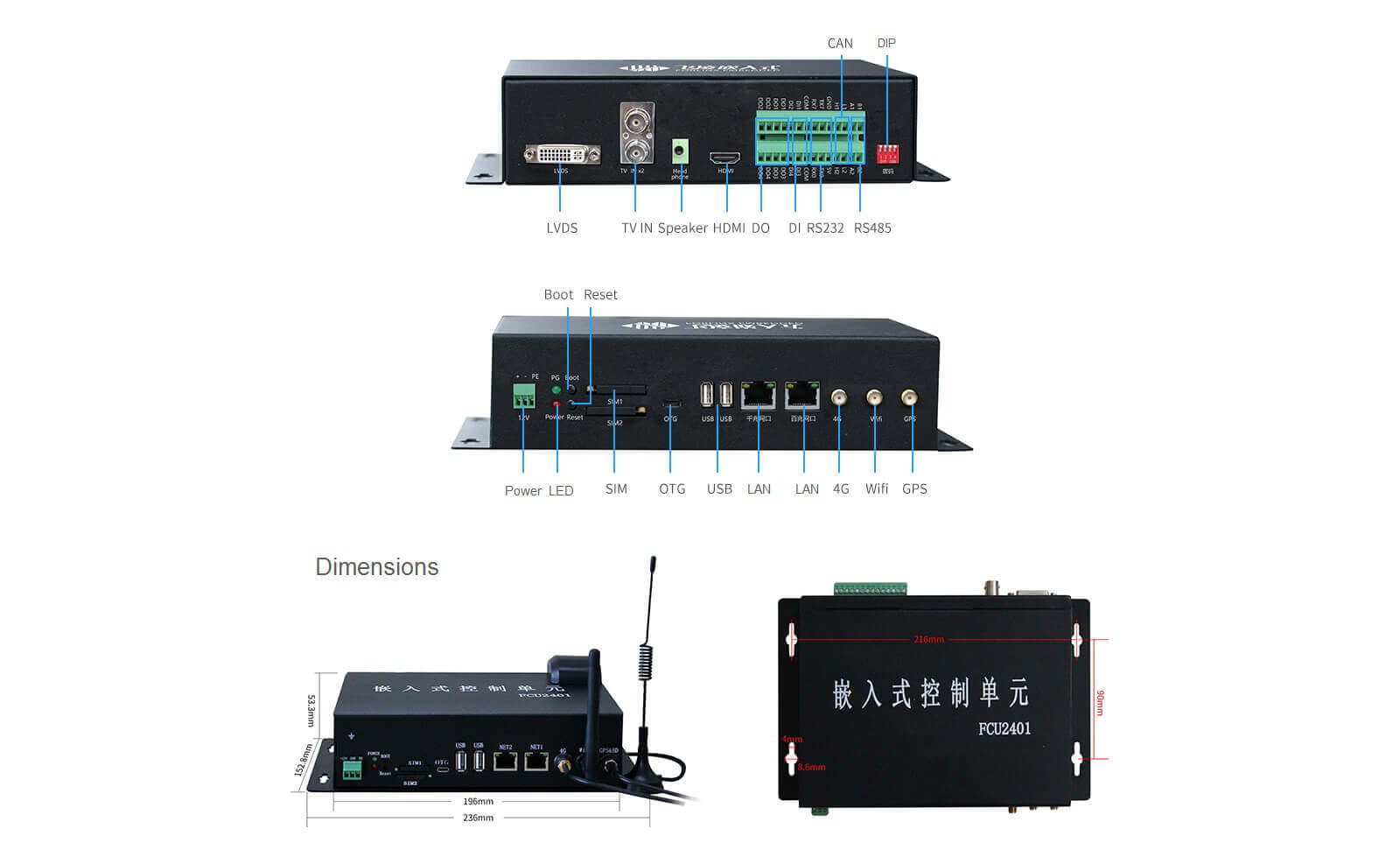

Aluminium alloy enclosure with dimensions of 236x152.8x53.3mm
Various peripheral interface
RS485, CAN, ESAM, USB, Ethernet, 4G, WiFi, GPS, LVDS, HDMI, DI, DO, audio, SATA,
all passed ESD4 testing
Target Application
Applicable for IoT, edge computing, IoT, express cabinet, advertising machine, kiosk and other self-service terminals
▊ Hardware Features
| Item | Spec. |
| CPU | Allwinner A40i, ARM Cortex-A7 1.2GHz |
| RAM | DDR3L 1GB(2GB optional) |
| ROM | eMMC 8GB |
| Ethernet | 1x 10/100Mbps, 1x 10/100/1000Mbps, ESD4, EFT3 |
| RS485 | 2x RS485, 3KV isolation, ESD4, EFT3 |
| RS232 | 2x RS232, 3KV isolation, ESD4, EFT3, one debug port and one isolated with 5V power output, output rate 1W |
| DO | 4x DO, replay output, contact point 5A 250VAC, 5A 30VDC |
| DI | 4x DI, dry contact input |
| CAN | 2x CAN, 2.5KV isolation, power 3KV isolation, ESD4, FET3 |
| GPS | can support Beidou& GPS dual-mode |
| HDMI | one standard HDMI 1.4, can support 1080@60fps |
| LVDS | standard DVI-I |
| TV IN | two analog cameras input, can support NTSC and PAL |
| Audio | 1x speaker, can support a 4Ω 1W speaker |
| 4G | Model: Quectel EC20, 4G/3G/2G, has two SIM card slots |
| Wi-Fi | can support both STA and AP |
| USB HOST | 2x USB Host 2.0, ESD 4 |
| USB OTG | for system flashing and debug, can not supply power to peripherals |
| RTC | on-board CR2032 |
| ESAM | ISO7816 protocol |
| Hard disk storage | can support a 2.5'' SATA disk |
| DIP switch | RS485, CAN optional |
| Power IN | DC 12V, anti-reverse and over-current protection |
| Power failure solution | super capacitor can support system running for 15s once CPU detects external power failure |
| Reset Key | system reset key |
| Boot Key | used together with reset key for system firmware updating |
| Indicator | 2, to detect power supplying mode, external power supply or super capacitor power supply |
| Working environment | RH: 5％～95％, non-condensing, working: -40℃~+80℃, storage: -40℃～+85℃ |
