Forlinx RZ/G2L System on Module and SBC Evaluation

In mid-May 2022, Forlinx released FET-G2LD-C SoM and OK-G2LD-C SBC based on Renesas RZ/G2L, which has rich peripheral interfaces, high performance with low power consumption.

Renesas RZ/G2L was launched in 2021. Some engineers don’t know it very well and have many questions about it. The following is product test of FET-G2LD-C SoM and OK-G2LD-C SBC for some FAQs.

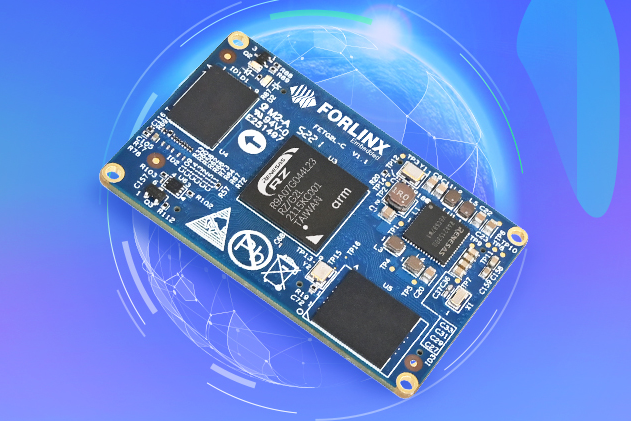

FET-G2LD-C SoM

FET-G2LD-C System on Module(SoM)


  • CPU: RZ/G2L
  • Dual-Core Arm® Cortex®-A55 @ 1.2GHz
  • Single Core Arm® Cortex®-M33 @ 200MHz
  • GPU: Arm® MaliTM-G31 @ 500MHz
  • Memory: DDR4-1600 (current version is 2GB)
  • Storage: eMMC (16GB) + QSPI Flash (16MB)
  • Power supply: integrated power chip
  • Package: ultra-thin board to board connector

FET-G2LD-C SoM carries high-performance and ultra-efficient processor Renesas RZ/G2L. It’s heterogeneous multi-core, Cortex-A55, 1.2GHz, and integrates a MCU Cortex-M33, 200MHz. FET-G2LD-C SoM has a GPU Mali-G31 500MHz and supports a variety of display interfaces. It has rich functional interface resources, like multi-channel UART, Ethernet, CAN-FD, etc. It is applicable to industrial, medical, electric power, transportation and other pan-industrial application scenarios.

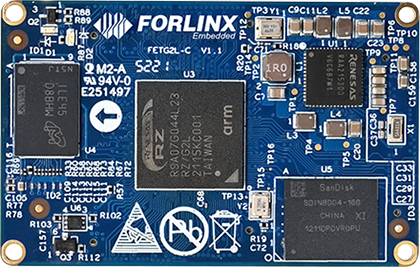

Forlinx RZ/G2L System on Module Front

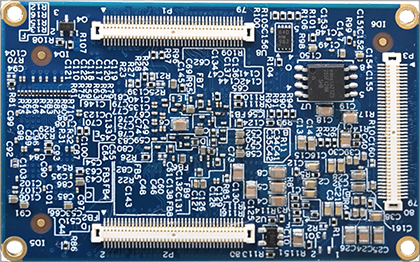

Forlinx RZ/G2L System on Module Back

FET-G2LD-C SoM front and back

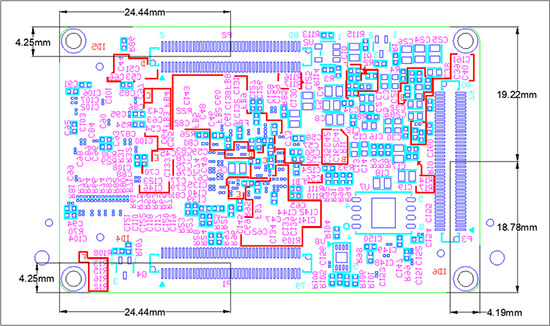

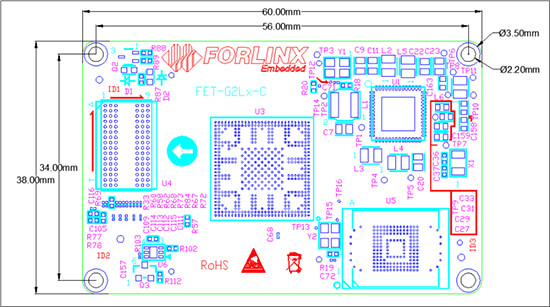

FET-G2LD-C SoM Front Dimensions

FET-G2LD-C SoM Back Dimensions

FET-G2LD-C SoM Front and Back Dimensions

With the integrated power supply solution, the SoM size is very small, only 60mm x 38mm. With ultra-thin board-to-board connectors, the highest part (inductor) of SoM is only 5.6mm away from the surface of carrier board, applicable to products with limited space. The SoM production technology takes immersion gold and resin plug holes, which significantly enhanced the reliability and stability of welding. And its materials are lead-free, comply with environmental requirements. Meanwhile, the signal integrity and power integrity are strictly controlled. Through simulation, provide a theoretical basis for the stable operation of the system. The four corners of SoM reserve fixed holes to cope with high-intensity vibration scenarios. In addition, it has fool-proof design.

2. RZ/G2L SoM stability test

1) Power stability test:

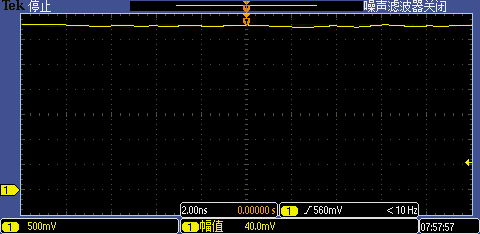

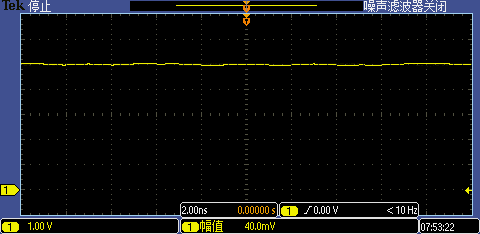

For the stability of power supply, Forlinx tested SoM under full load, and captured the waveform of each test point by oscilloscope:

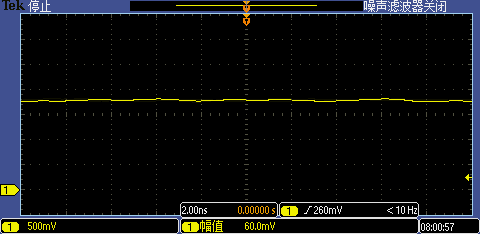

SoM TP1 waveform

SoM TP1 waveform

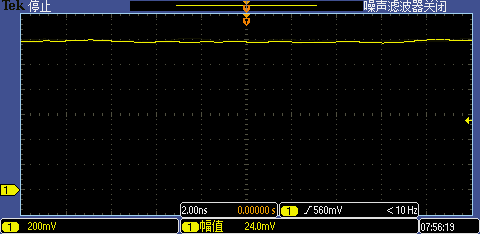

SoM TP2 waveform

SoM TP2 waveform

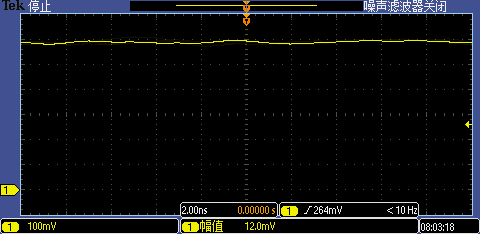

SoM TP3 waveform

SoM TP3 waveform

SoM TP4 waveform

SoM TP4 waveform

SoM TP5 waveform

SoM TP5 waveform

SoM TP6 waveform

SoM TP6 waveform

SoM TP7 waveform

SoM TP7 waveform

SoM TP8 waveform

SoM TP8 waveform

SoM TP9 waveform

SoM TP9 waveform

SoM TP10 waveform

SoM TP10 waveform


3. Memory stress test:

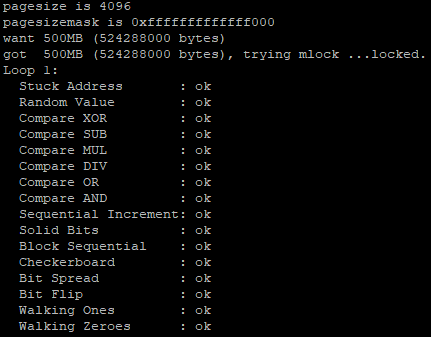

The memory stress test results of FET-G2LD-C SoM are shown in the figure below.

Memory stress test

Results of memory stress test

It can be seen FET-G2LD-C SoM performed very well in the full load stress test.

4. OK-G2LD-C Single Board Computer

The carrier board layout of Forlinx OK-G2LD-C SBC is compact, size only 150mm x 130mm. However the interfaces are very rich, like two Gigabit Ethernet, two USB2.0, USB OTG, TF, two CAN-FD, RS485, MIPI-CSI, MIPI-DSI, headphone output, speaker output, MIC input, ADC... onboard WIFI&BT module, reserved MIPI PCIe slot for 4G module.

The peripheral interfaces have corresponding protection circuit, and each interface is close to the board edge, which is convenient for users to make their own shells or place it in the chassis.

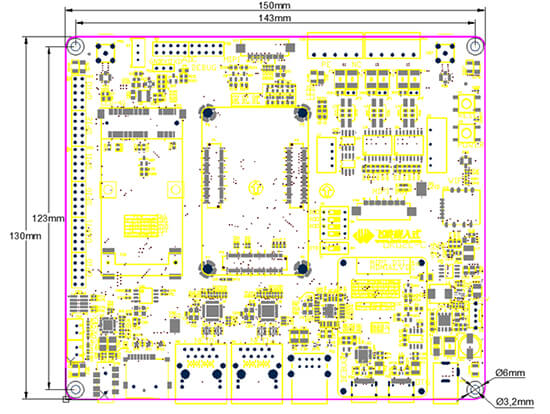

OK-G2LD-C Single Board Computer size

Carrier Board Dimensions


1) power consumption test

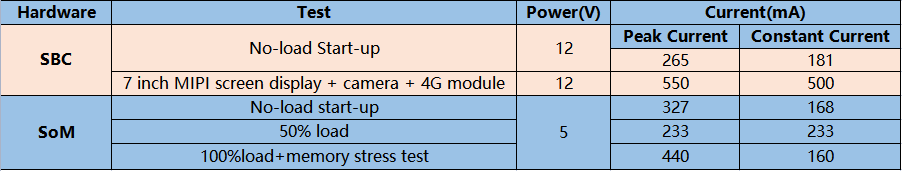

Many clients are concerned about the power consumption of FET-G2LD-C SoM and OK-G2LD-C SBC. Therefore, Forlinx has tested them respectively. The result is shown below:

power consumption test

When the SoM is fully loaded, the power consumption is only 1.8w. With the low power consumption, FET-G2LD-C SoM can be designed without fan or heat sink if working environment with good air flow. (if it is Hermetic environment, it needs to be evaluated based on practice)

2) Development board startup test

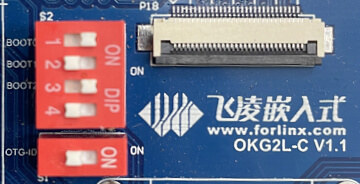

OK-G2LD-C SBC supports TF card flash, SCIF and Flash startup (eMMC startup is not available now). The silk screen next to dial switch on carrier board is the position of dial code in different states. User can dial directly according to the silk screen. As shown in the figure below, the DIP switch is Flash startup:

Development board startup test


Our SoM and development board based on Renesas RZ/G2L are hot selling now. Please inquiry Forlinx for details.
