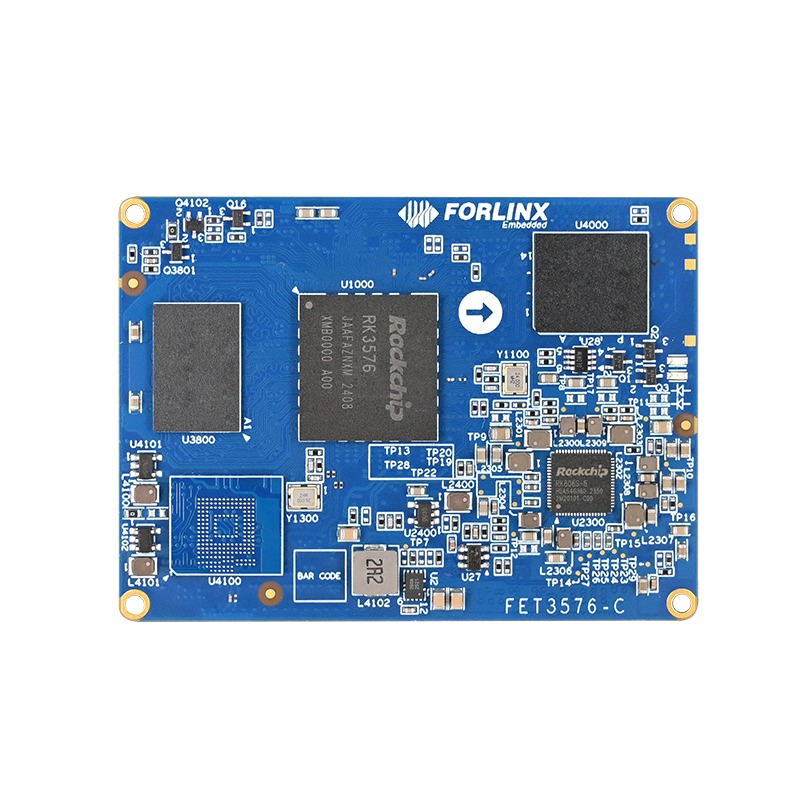

FET3576-C System on Module
CPU: Rockchip RK3576
Architecture: 4x Cortex-A72+4x Cortex-A53
Frequency: [email protected][email protected]
RAM: 2GB/4GB LPDDR4
ROM: 32GB eMMC
System: Linux 6.1.57
FET3576-C System on Module Based on Rockchip RK3576 Processor
FET3576-C system on module(SoM) is powered by the Rockchip RK3576 processor. This high-performance, low-power, feature-rich application processor is tailored for the AIoT and industrial markets. With 4 x ARM Cortex-A72 and 4 x ARM Cortex-A53 cores, plus a built-in 6TOPS NPU, it enhances your AI applications. Featuring board-to-board connection design for easy setup, it’s rigorously tested in Forlinx’s lab for stability in industrial conditions. With a 10 to 15-year life-cycle, ensure continuous supply.
Rockchip RK3576 SoM Features:
- 8nm processing technology;
- 4x 100-pin board-to-board connectors to maximize processor performance;
- Compatible design with FET3588-C;
- Firewall supports device access control and priority management;
- H.265 decoding up to 8K resolution;
- Multiple display interfaces: HDMI/eDP, MIPI DSI, Parallel, EBC, DP;
- Supports three displays working together with different content;
- Various high-speed peripherals: PCIe 2.1, USB 3.2, CAN-FD, etc.
FET3576-C SoM
High-performance Eight-Core Chip with Advanced Video Decoding
RK3576 is a high-computing power, high-performance, low-power application processor built by Rockchip for the AIoT market,
integrating 4 x ARM Cortex-A72 and 4 x ARM Cortex-A53 high-performance cores; built-in 6TOPS super-computing power NPU;
embedded 3D GPU plus a dedicated 2D hardware engine with MMU to maximize display performance; H.265 Ultra HD hard decoding, supports up to 8K resolution.
Firewall Enables True Isolation of Hardware Resource
RK3576 supports Firewall functionality, used to manage access permissions from the main device to peripheral devices and memory areas, achieving true hardware resource isolation.
This feature not only enhances system stability and security but also provides robust support for a variety of application scenarios.
Boost Your AI Apps with 6TOPS Computing Power NPU
6TOPS super-computing power NPU, support INT4/INT8/INT16/FP16/BF16/TF32 operation, support dual-core work together or work independently,
support multi-task, multi-scenario parallel, support deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc.
Ultra Clear Display + AI Intelligent Repair
Support high-definition H.264 and H.265 encoding and decoding, with five display interfaces: HDMI/eDP, MIPI DSI, Parallel, EBC, and DP.
It supports a triple-screen independent display, 4K@120Hz ultra-clear display, and super-resolution function.
Intelligent repair of blurry images, improving video frame rate, and meeting your diverse display needs in various scenarios.
New Parallel Bus Interface for FlexBus
FlexBus: Flexible parallel bus interface, capable of emulating irregular or standard protocols, supporting 2/4/8/16-bit data parallel transmission, with a clock speed of up to 100MHz.
It also features a rich array of bus transfer interfaces including DSMC, CAN-FD, PCIe 2.1, SATA 3.0, USB 3.2, SAI, I2C, I3C, UART, and more.
Continuous Resource Enrichment for Swift Development Success
Wide-ranging Scenarios Empower Diverse Industry Applications
Supercharge your innovations with the versatile FET3576-C SoM!
From industrial, AIoT, edge computing, smart mobile terminals, and various other digital multimedia-related fields.
With Forlinx's robust technical support services, accelerate your product's time-to-market and seize the lead in your industry.
▊ RK3576 SoM/SBC Video
Forlinx Launched FET3576 System on Module powered by the Rockchip RK3576 processor
▊ Hardware Features
FET3576-C System on Module Basic Features |
|
---|---|
Processor |
Rockchip RK3576 ARM: 4×[email protected] + 4×[email protected] NPU: 6TOPS INT8, supports INT4/INT8/INT16/FP16/BF16/TF32 GPU: ARM Mali-G52 MC3 VPU: Hard Decode: H.264、H.265,4K@60fps Hard Encode: H.264, H.265, VP9, AV1, AVS2, 8K@30fps or 4K@120fps |
RAM |
2GB/4GB LPDDR4 |
ROM |
32GB eMMC |
Power input |
DC 12V |
Operating temp |
FET3576-C: 0℃~+80℃ FET3576J-C: -40℃~+85℃ |
Package |
Board-to-board connector(4*100-pin, 0.4mm pitch, combined height 1.5mm) |
OS version |
Linux6.1.57, Android |
Dimensions |
50mm x 68mm |
Flashing |
USB OTG TF Card |
FET3576-C System on Module Functional Parameters |
|||
---|---|---|---|
Interface |
QTY |
Spec. |
|
HDMI/eDP TX (1) |
1 |
Supports 1x HDMI/eDP TX (multiplexed) HDMI: HDMIv2.1, up to 4K@ 120Hz; Supported form: RGB/YUV444/YUV422/YUV420 8/10-bits Supports CEC, ARC, HDCP v2.3 and HDCP v1.4 eDP: eDP v1.3 contains |
3x VOP, can support up to 3 displays with different content |
MIPI DSI (1) |
1 |
Highspeed (HS), Full-speed (FS), and Low-speed (LS) Supports 1x MIPI DSI-2 TX D-PHY v2.0 or C-PHY v1.1: 4 data lanes on D-PHY 3 data trios on C-PHY Up to 2560×1600@60Hz Supported form: RGB(up to 10bit) |
|
Parallel (1) |
1 |
Supports RGB/BT.656/BT1120 Up to 1920×1080@60Hz Supported form: RGB(up to 10bit) |
|
EBC (1) |
1 |
Supports E-ink EPD (Electronic paper Display) Supports 2560×1920 hard decoding Supported data bus width: 16-bit Up to 32 level gray scale Supports Direct mode, LUT mode and 3-window mode Supports window display mode |
|
DP TX (1) |
1 |
Supports one USB/ DP combination USB: USB 3.2 Gen1x1,Dual-Role Device(DRD); DisplayPort TX: DisplayPort v1.4,supports 1/2/4 lanes with lane speed including 1.62, 2.7, 5.4 and 8.1Gbps; Up to 4K@120Hz, supported form: RGB/YUV444/YUV422/YUV420 8/10-bit;Supports MST; Supports USB Type-C with DP Alt; Supports HDCP v2.3 and HDCP v1.3; |
|
USB3.2 |
2 |
1x USB Type-C can support DP Alt mode; 1x Combo high speed interface |
|
MIPI-CSI |
5 |
5x CSI-2 Four of them are 2x D-PHY v1.2 data-lane, 2.5Gbps/lane, and they can combine to two interfaces each with 4 data lanes; Another one supports 4 D-PHY data-lane or 3 C-PHY trios: D-PHY v2.0, 4.5Gbps/lane C-PHY v1.1, 2.5Gsps/trio |
Can support up to 5 CSI work together |
DVP |
1 |
8/10/12/16-bit standard DVP, up to 150MHz data input; Supports BT.601/BT.656 and BT.1120 VI |
|
SAI (2) |
≤5 |
SAI 0/1 support 4 TX lanes and 4 RX lanes; SAI 2/3/4 support 1TX lane and 1 RX lane; Supports I2S/TDM/PCM mode (2) Sampling rate up to 192KHz Audio resolution up to 16~32bits |
|
SPDIF TX |
≤2 |
|
|
SPDIF RX |
≤2 |
|
|
PDM |
≤2 |
Supports PDM with main receiving mode; Up to 8 channels, audio resolution 16~ 24-bit, sampling rate up to 192KHz |
|
Digital Audio Codec |
1 |
Supports 2x DAC, each DAC can support 3 blending modes; Supports I2S/ PCM, master/ slave mode; 16-bit sampling rate; Supports volume controlling |
|
SDIO |
≤2 |
SDIO v3.0,4-bits |
|
Ethernet |
≤2 |
2x GMAC, pin out by RGMII/ RMII; 10/ 100/ 1000Mbps |
|
USB2.0 OTG |
2 |
|
|
Combo high speed interface |
2 |
Combo 1: 1-lane PCIe2.1/SATA3.1 Combo 2: 1-lane PCIe2.1/SATA3.1/USB3.2 Gen1x1 PCle interface PCle v2.1; Root Complex (Rc) only; Up to 5GT/s data rate SATA interface SATA v3.1 and AHCI revision v1.3.1; eSATA; Up to 6GT/s data rate USB interface UsB3.2 Gen1x1 with UsB v2.0 DRD (host and device) Up to 5Gbps data rate xHCI Host with up to 64 devices |
|
UART |
≤12 |
2 built-in 64 bits FIFO for TX and RX; Supports 5/6/7/8-bit serial trasceving, up to 4Mbps; All 12 UARTs can support flow control and RS485 |
|
CAN-FD |
≤2 |
Compliant with CAN and CAN-FD; Supports CAN standard frame and extended frames transceiving; Supports 8192-bit FIFO |
|
DSMC |
≤1 |
Can support up to 4 chips selection Support 8-line and 16-line Supported configurable serial address width: 16-bit or 32-bit |
|
FlexBus |
≤1 |
Supports built-in DMA and ping-pong operations for two addresses allocation Supports sending and receiving modes Supports single mode and continuous mode |
|
SPI |
≤5 |
Supports master mode and slave mode, each can support two chips selection |
|
I2C |
≤9 |
7-bit and 10-bit address modes; Standard mode data rating 100k bits/ s, and HS mode rating 400k bits/ s |
|
I3C |
≤2 |
||
PWM |
≤16 |
Supports up to 16 on-chip PWMs with interrupt operation, supports capturing mode |
|
ADC |
≤8 |
8x 12-bit SAR-ADC, sampling rate up to 1MS/s |
|
GPIO |
/ |
All GPIO can be used to generate interrupt; Supports power trigger interrupt and edge trigger interrupt; Supports polarity triggered by power configuring; Supports interrupt triggered by rising edge, falling edge and double edges; Supports pull-up/ pull-down configuration(weak pull-up and weak pull-down); Supports drive capacity configuring |
Note(1) Video Port
Video Port0: up to 4K@120Hz, 10 bits;
Video Port1: up to 2560x1600@60Hz, 10 bits;
Video Port2: up to 1920x1080@60Hz, 8 bits
Each interface can be connected to HDMI/eDP/DSI-2
Port1 and Port2 can be connected to serial output interface
Note(2): single TDM clock up to 50MHz, when working with TDM mode, it can work together with audio sampling frame rate and resolution to compute supported audio channels
▊ Carrier Board
![Rockchip RK3576 Development Board](https://forlinx.net/image/rk3576-sbc-1.jpg)
OK3576-C Development Board
To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
OK3576-C Single Board Computer by Forlinx is powered by Rockchip RK3576 processor, featuring 4x ARM [email protected] + 4x [email protected], 2GB/4GB LPDDR4 RAM, and a 6TOPS NPU. It employs 4 100-pin board-to-board connectors to easily access all processor function pins, offering seamless functionality and ease of customization, and supports Linux 6.1.57 system. Featuring open system architecture design, it can provide technical information for your secondary development.
OK3576-C Single Board Computer Features | |||
---|---|---|---|
Peripheral interfaces |
QTY |
Spec. |
|
HDMI TX |
1 |
Standard HDMI connector, HDMI v2.1, up to 4K@ 120Hz |
|
MIPI DSI |
1 |
Supports 4 lanes output, up to 2560×1600@60Hz; Forlinx default option: 7’’ MIPI DSI module, 1024x 600@30FPS |
|
DP TX |
1 |
Multiplexed with USB3.1 Gen1, pin out by Type-C connector; DisplayPort v1.4, up to 4K@ 120Hz |
|
HDMI |
1 |
Standard HDMI connector, up to 7680x4320@60Hz |
|
USB3.1 Gen1 |
1 |
By Type-C connector, work together with DP TX |
|
MIPI-CSI |
5 |
1×MIPI DPHY V2.0 4 lanes, each lane up to 4.5Gbps; By 1x 26pins FPC connector, default supported camera model: OV13850; 4×MIPI DPHY V1.2 2 lanes, each lane up to 2.5Gbps; By 4x 26pins FPC connectors, default supported camera model: OV5645 |
|
Audio |
1 |
On-board codec chip, supports Phone, MIC and Speaker |
|
TF Card |
1 |
up to 150Mhz, supports SDR104 mode |
|
Ethernet |
2 |
2x RJ45, 10/100/1000 Mbps |
|
4G/ 5G |
1 |
M.2 slot |
|
WiFi & BT |
1 |
AW-CM358SM-WIFI&BT supports 2.4G/ 5G WiFi and BT5.0 |
|
USB3.0 Host |
3 |
3x Type-A USB connector, supports HS mode(480Mbps), FS mode(12Mbps) and LS mode(1.5Mbps) |
|
PCIe2.0 |
1 |
By PCIe x1 slot, up to 5Gbps |
|
UART |
1 |
Headers with pitch of 2.54mm, up to 4Mbps |
|
CAN-FD |
2 |
Compliant with CAN and CAN-FD, with built-in transceivers |
|
RS485 |
2 |
||
ADC |
5 |
Headers with pitch of 1.27mm, 12 bits SAR-ADC, sampling rate up to 1MS/ s |
|
RTC |
1 |
On-board RTC chip and batter holder |
|
GPIO |
8 |
Headers with pitch of 2.54mm for 8 GPIOs and power of 5V/ 3.3V/ 1.8V |
