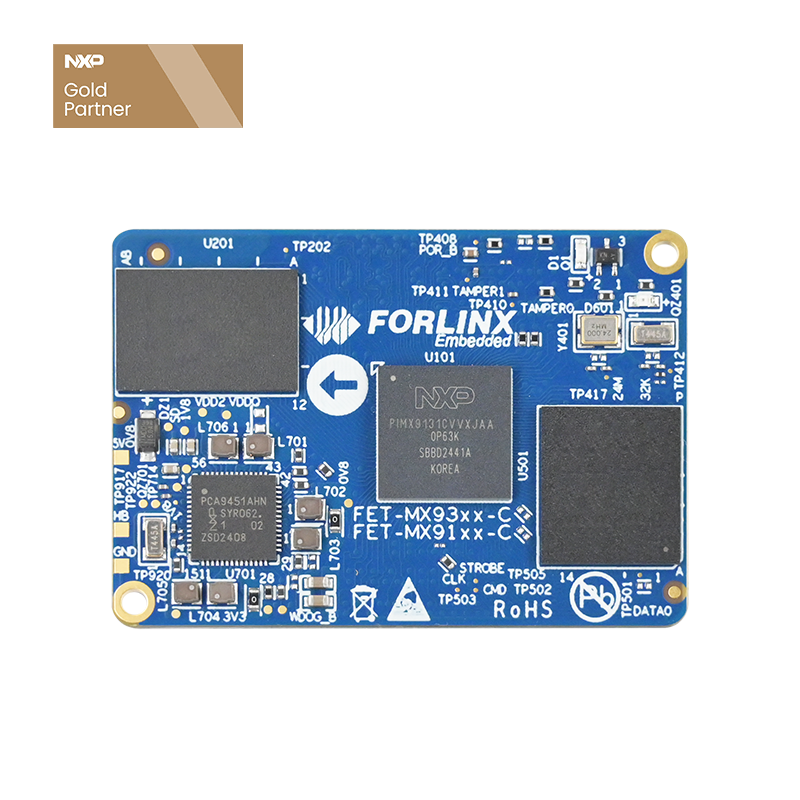

FET-MX91xx-C System on Module Based on NXP i.MX91xx Processor
The FET-MX91xx-C SoM is designed and developed based on NXP’s new generation i.MX91 series Cortex-A55 processors, which features a running speed up to 1.4GHz, 8x UART, 2x Ethernet, 2x USB2.0, 2x CAN-FD and other common interfaces are all available. What’s more, it’s compatible with Folinx’s newly launched i.MX93 SoMs, providing easy application selection for customers.
New Generation Linux Controller
i.MX93x VS i.MX91x
i.MX91x and i.MX93x both belong to i.MX9 series processor family,
but i.MX91x has more streamlined configuration and lower cost compared to i.MX93x.
Multiple Peripheral Interfaces - Easy to Expand
Super-long Longevity
The i. MX91x series has been added to NXP's long-term supplying product program, with a 15-year longevity guarantee.
Wide Applicability
▊ Video
Coming Soon: Forlinx's FET-MX91xx-C SoM & SBC based on NXP i.MX91x series
▊ Hardware Features
|
FET-MX91xx-C SoM Features |
|
|---|---|
|
CPU |
NXP i.MX91x MPU: 1×Cortex-A55@ 1.4GHz |
|
RAM |
1GB LPDDR4 |
|
ROM |
8GB eMMC |
|
Voltage input |
DC 5V |
|
Operating temperature width |
-40℃ ~ 85℃ |
|
Package |
Board-to-board connector(2*100-pin, 0.4mm pitch, combined height 1.5mm) |
|
Specifications |
||
|---|---|---|
|
Interface |
QTY |
Spec. |
|
LCD |
1 |
Parallel RGB888, up to 1366×768p60 or 1280×800p60 |
|
Ethernet |
≤2 |
2x RGMII Transmission rate 10/100/1000 Mbps, complies with IEEE 802.3 |
|
UART |
≤8 |
Baud rate up to 5Mbps Supports serial data transceiver configuration, including programmable parity bit |
|
CAN-FD |
≤2 |
Supports CAN-FD and CAN 2.0B |
|
USB |
≤2 |
Two USB2.0 controllers integrated with PHY |
|
SD |
≤1 |
Complies with SD3.0 Supports SDR up to 200MHz and DDR up to 50MHz |
|
SDIO |
≤1 |
SDIO3.0 |
|
SAI |
≤3 |
A Synchronous Audio Interface (SAI) is available SAI1 supports 2 lanes, SAI2 supports 4 lanes, and SAI3 supports 1 lane Support full-duplex serial with frame synchronization, such as I2S, AC97, TDM and codec/ DSP |
|
PDM |
1 |
24-bit, supports linear phase response and AOP MIC |
|
Camera |
1 |
8-bit parallel camera interface |
|
SPI |
≤8 |
Supports to configure master or slave mode |
|
I2C |
≤8 |
Rating up to 100Kbit/s in standard mode, and 400Kbit/s in fast-speed mode, 1000Kbit/ s in enhanced fast-speed mode, 3400Kbit/s in high-speed mode, and 5000Kbit/s in super fast speed mode |
|
I3C |
≤2 |
2 Improved I3C; Support 400Kbit/s fast mode and 1000Kbit/s fast mode enhanced version, and backward compatible with I2C Support up to 12.5M clock rate, support HDR-DDR mode |
|
ADC |
≤4 |
12-bit 4-lane 1MS/s ADC |
▊ Carrier Board
OK-MX91xx-C Single Board Computer
To minimize your development workload, we can provide starter kits that can be used as complete development platforms for evaluation and application development.
The OK-MX91xx-C single board computer from Forlinx is based on NXP's new generation i.MX91xx series and adopts a separate SoM+carrier board design. It supports 8xUART, 2xEthernet, 2xUSB2.0, 2xCAN-FD bus, and other common interfaces. And it's compatible with Folinx’s newly launched
i.MX93x series, and supports Linux system. With an open system architecture design, it can provide technical information for your secondary development.
